Specifications
Brand Name :
LongJoin
Model Number :
JL-700S
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
24VDC
Power Consumption :
1.5A MAX
IP :
IP66
Wires :
AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C
Certifications :
Zhaga,RU,RoHS,CB,CE,UKCA,REACH
Real-world Scenarios :
Smart City Infrastructure
Description
Zhaga Book 18 Receptacle Short Thread Road Area Commercial Residential Lighting Compact Design
JL-700S Zhaga Book-18 Receptacle

The JL-700S locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R, Z-LEX-C) and has passed relevant certification. This product facilitates the development and installation of road lighting, regional lighting, or commercial and residential lighting applications, including street lights, industrial and mining lights, corridor lights, and wall lights.

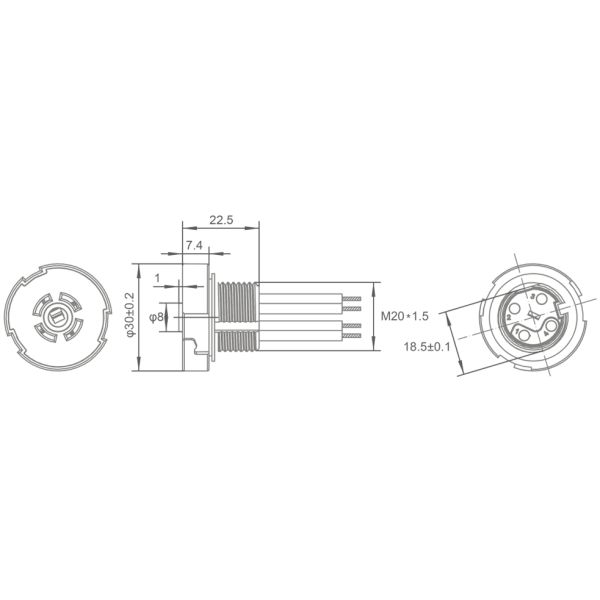

Product Dimensions
Zhaga Book 18 Receptacle Short Thread Road Area Commercial Residential Lighting Compact Design
Drilling Plan
Zhaga Book 18 Receptacle Short Thread Road Area Commercial Residential Lighting Compact Design
Product Features
  • Standardized interface defined in Zhaga Book-18
  • Compact size allowing greater flexibility in luminaire design
  • Advanced sealing to achieve IP66 with no mounting screws
  • Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
  • Flexible mounting position, upwards, downwards and sideways facing
  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time
Specifications
Model No. JL-700S
Rated Voltage 24VDC
Power Consumption 1.5A MAX
Related Humidity 96%
Ambient Temperature -40°C ~ +70°C
Wires AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C
IP Rating IP66
Certifications Zhaga Book 18 Receptacle Short Thread Road Area Commercial Residential Lighting Compact Design

*Conductor specification: #20 conductor has UL certification

Frequently Asked Questions
What is a Zhaga Book 18 Receptacle with short thread?

It is a standard socket connector that fully complies with Zhaga Book 18 specifications, designed with a short thread structure, used for connecting intelligent control modules to lighting fixtures.

What are the advantages of the short thread design?

The short thread structure enables faster installation, better waterproof sealing, higher stability, and is more suitable for narrow installation spaces in lamps.

Why is Zhaga Book 18 important for lighting applications?

Zhaga Book 18 provides a unified interface standard, ensuring good compatibility, interchangeability, and convenient upgrade and maintenance of intelligent lighting components.

What are the highlights of its compact design?

Compact design saves installation space, reduces the overall size of the lamp, and makes it suitable for various road and commercial lighting fixtures with limited internal space.

In which lighting scenarios is this receptacle mainly used?

It is widely used in road lighting, commercial lighting, residential lighting, community courtyards, park lighting and other outdoor and indoor lighting projects.
