Specifications
Brand Name :
LongJoin
Model Number :
JL-770L
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
24VDC
Related Humidity :
96%
Wires :
AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C
IP :
IP66
Certifications :
RoHS,RU,CE,CB,UKCA,REACH
Real-world Scenarios :
Next-Gen Smart Poles
Description

JL-770L Z10 lock socket cable version,USA 0-10V dimming scheme oad lighting, regional lighting or residential lighting

Product Summary

Z10 standard, JL-770L socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting.

According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.

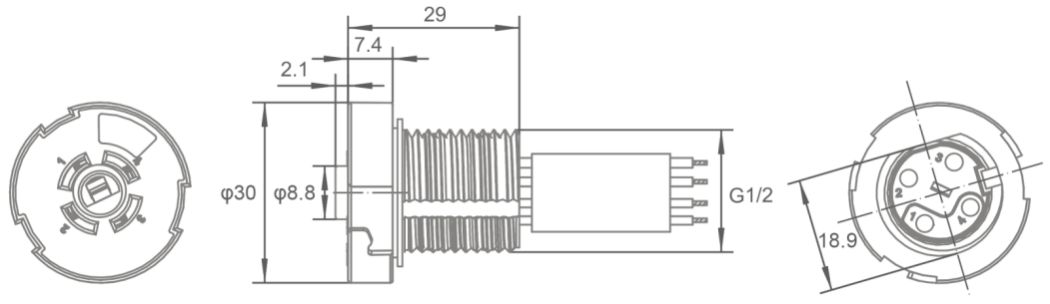

Product size

Z10 ZHAGA Socket Cable Version USA 0-10V Dimming Scheme Oad Regional Residential Lighting

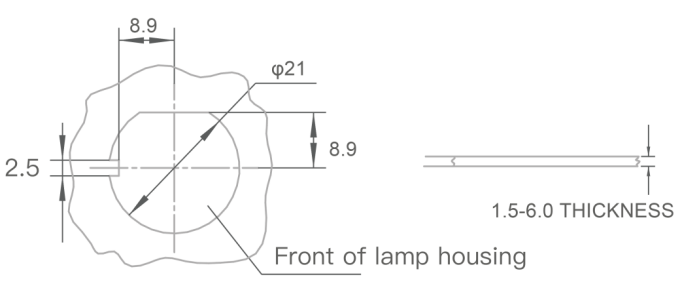

Drilling plan

Z10 ZHAGA Socket Cable Version USA 0-10V Dimming Scheme Oad Regional Residential Lighting

Product Features


  • Cable (red, yellow, purple and black)

  • Compact size allowing greater flexibility in luminaire design

  • Advanced sealing to achieve IP66 with no mounting screws

  • Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface

  • Flexible mounting position, upwards, downwards and sideways facing

  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time


Specifications

Model No.

JL-770L

Rated Voltage

24VDC

Power Consumption

1.5A MAX

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

*Wires

AWM 1015,18/20/22 AWG,105°C

AWM 1007,18/20/22 AWG,80°C

IP

IP66

Certifications

 Z10 ZHAGA Socket Cable Version USA 0-10V Dimming Scheme Oad Regional Residential Lighting

*Conductor specification: # 20 conductor has UL certification

FAQs

Q1: What is a Z10 ZHAGA Socket Cable Version?
A: It is a combined interface socket compatible with both Z10 and ZHAGA standards, equipped with an external cable, designed for the U.S. market, and supports 0–10V dimming for lighting control.

Q2: What are the benefits of the cable version design?
A: The cable structure provides flexible wiring, longer connection distance, strong adaptability to different lamp structures, and convenient on-site installation and replacement.

Q3: What is the advantage of using 0–10V dimming scheme?
A: 0–10V is a stable, widely compatible, flicker-free dimming method, easy to deploy, and highly suitable for outdoor and residential lighting systems.

Q4: Why combine Z10 and ZHAGA socket standards?
A: It meets both U.S. standard Z10 interface habits and international ZHAGA modular specifications, improving compatibility and interchangeability of sensors and control modules.

Q5: In which scenarios is this socket mainly applied?
A: It is widely used in road lighting, regional public lighting, residential community lighting, courtyard lighting and other outdoor lighting projects in the U.S. market.
