Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Specifications
Brand Name :
LongJoin
Model Number :
JL-106
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120VAC(106A) / 220~240VAC(106B) / 208~277VAC(106C) / 277VAC(106D)
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode :
Fail-On
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Parking Lot Automation
Description
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
JL-106 Upgradeable to handle type Direct Wire-in Thermal Photocontrol

The photocontrol JL-106 is designed to automatically control passage and doorway lighting based on ambient lighting levels. Built with an electrical heating structure, it provides a time delay over 30 seconds to prevent unnecessary switching caused by spotlights or lightning during nighttime. A temperature compensator system ensures consistent performance across varying ambient temperatures. The swivel version allows for convenient directional adjustment after installation.

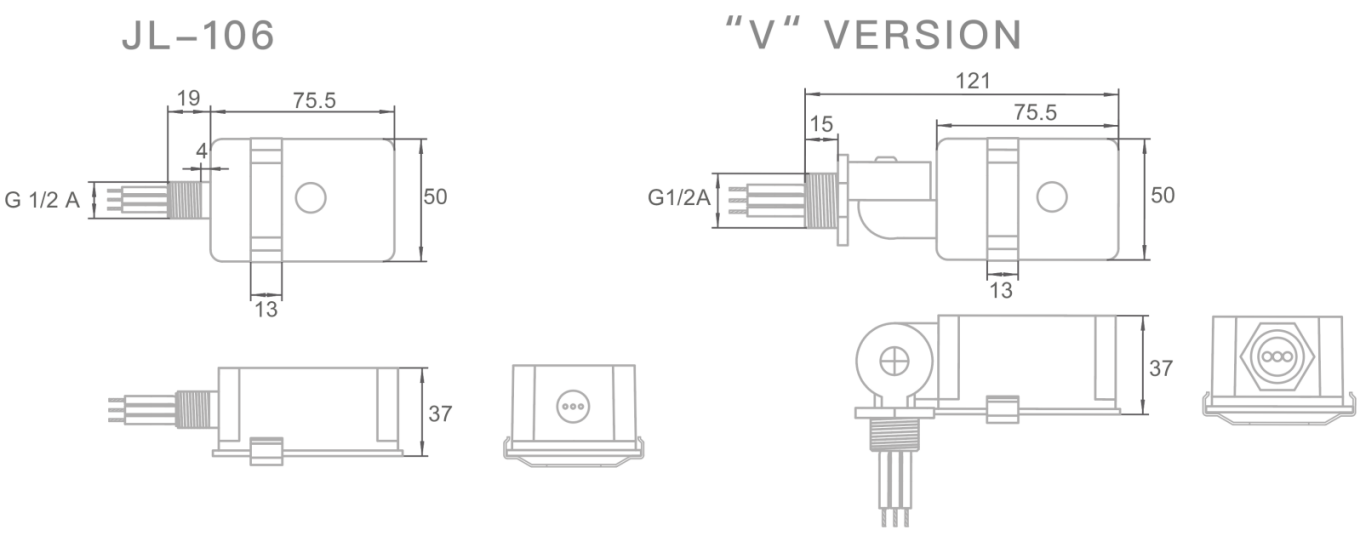

Product Size
Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Product Features
  • Time Delay: 30~120 seconds
  • Ambient Temperature: -40℃ ~ +70℃
  • Screw Thread (NPT 1/2") & Zinc Alloy Nut
  • UV stabilized PC enclosure
Specifications
Model No. JL-106A(*V) JL-106B(*V) JL-106C(*V) JL-106D(*V)
Rated Voltage 120VAC 220~240VAC 208~277VAC 277VAC
Applicable Voltage Range -- 200~305VAC -- --
Rated Frequency 50/60Hz
Rated Loading 2000W Tungsten, 2000VA Ballast
Power Consumption 1.5W Max.
Operate Levels 10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Fail Mode Fail-On
Lead Wire AWG#16, AWM3321 4" min
Certifications Upgradeable To Handle Type Direct Wire In Thermal Photocontrol Time Delay Feature
Frequently Asked Questions
What is an upgradeable to handle type direct wire in thermal photocontrol with time delay feature?
It is a direct wire-in thermal photocontrol that can be upgraded to a handle type, equipped with a time delay function for more stable and flexible lighting control.
What does "upgradeable to handle type" mean for this thermal photocontrol?
It means the photocontrol supports later upgrading to a handle-style structure, allowing directional adjustment and better adaptability to different installation environments.
What is the function of the time delay feature in this thermal photocontrol?
The time delay function prevents frequent switching and brief false triggers, keeping the light on for a set time to ensure stable and reliable operation.
Is this photocontrol designed for direct wire-in installation?
Yes, it uses a direct wire-in structure for safe, firm and convenient hardwiring into various lighting fixtures.
What are the advantages of this upgradeable thermal photocontrol?
It offers flexible upgradability, stable thermal control, time delay protection and easy installation, making it suitable for long-term use in outdoor and passage lighting.
