Specifications
Brand Name :
LongJoin
Model Number :
JL-412C(R)
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120~277VAC
Available Voltage Range :
105~305VAC
Power Consumption :
1W Max.
On-off Levels :
10~30Lx Turn-On / 30~80Lx Turn-Off
Certifications :
RoHS,CE,UL
Real-world Scenarios :
Residential Street Lighting
Description

JL-412C Miniature Improved Electronic Direct Wire-In Photocontrol,Micro Advanced Version


Product Summary

The photocontrol JL-412C(R) is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature, while a miniature profile supports most smaller fixtures.

Further, a preset 3-10 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the night time

This product has been listed by UL LLC and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.

Its R version provides a separated sensor assembly.

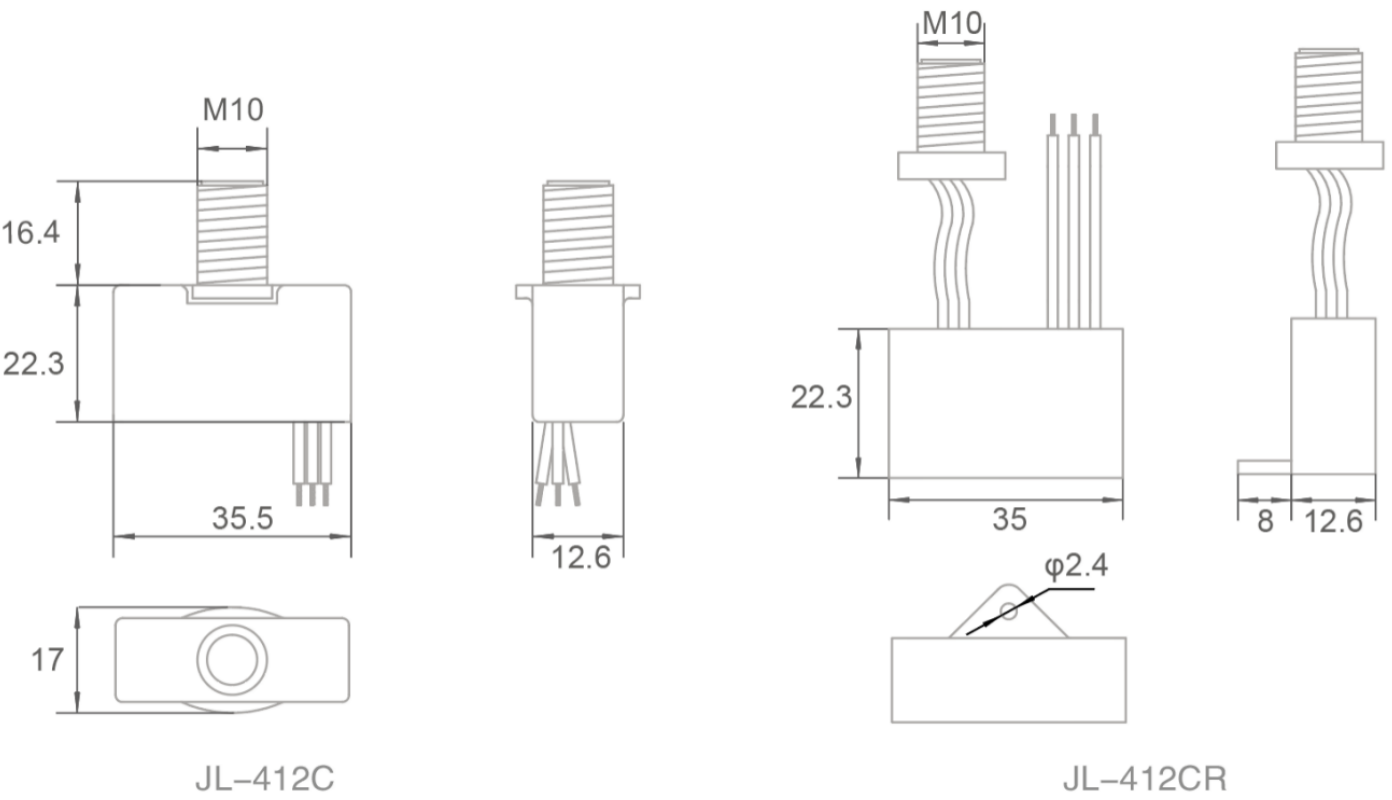

Product size

Adjustable Lux Threshold Miniature Improved Electronic Direct Wire In Photocontrol Micro Advanced Version


Product Features

  • UL773A direct wire-in

  • 120~277V Multi-Volts

  • IR-Filtered Phototransistor Sensor

  • IP65 protection

  • Miniature size


Specifications


Model No.

JL-412C

JL-412CR

Rated Voltage

120~277VAC

Available Voltage Range

105~305VAC

Rated Frequency

50/60Hz

Rated Loading

1.2A Tungsten / Ballast

1A e-Ballast

Power Consumption

1W Max.

On-off Levels

10~30Lx Turn-On / 30~80Lx Turn-Off

Ambient Temperature

-40℃ ~ +70℃

Related Humidity

96%

Leads Length

AWG #18, AWM1430

Certifications

Adjustable Lux Threshold Miniature Improved Electronic Direct Wire In Photocontrol Micro Advanced Version


FAQs

Q1:What is an adjustable lux threshold miniature advanced photocontrol?


A:It is a compact, high-performance light sensor designed for direct wire installation. It features an adjustable light level threshold for precise on/off control, making it an improved, advanced version of standard miniature photocontrols.

Q2:What does adjustable lux threshold mean in this photocontrol?


A:Adjustable lux threshold allows users to set the exact light level at which the photocontrol automatically turns lights on or off. This provides greater flexibility than fixed-sensitivity models for different lighting applications.

Q3:Is this advanced miniature photocontrol designed for direct wire installation?


A:Yes. It features a direct wire design for simple, secure hardwiring into lighting systems, without extra adapters. Its miniature size allows installation in tight spaces.

Q4:What makes this an improved and advanced version of photocontrols?


A:It offers enhanced stability, more precise lux adjustment, better energy efficiency, and a more compact form factor compared to standard miniature photocontrols, delivering more reliable dusk-to-dawn operation.

Q5:What lighting applications is this micro advanced photocontrol suitable for?


A:It is ideal for streetlights, wall packs, floodlights, landscape lights, and other small fixtures where a miniature size, direct wiring, and adjustable light sensitivity are required.
