Specifications
Brand Name :
LongJoin
Model Number :
JL-118
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120VAC(118A) / 220~240VAC(118B) / 208~277VAC(118C) / 277VAC(118D)
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode :
Fail-On
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Parking Lot Automation
Description
Direct Wire In Thermal Photocontrol Passage Doorway Lighting Photoelectric Switch Time Delay Feature
JL-118 Direct Wire-In Thermal Photocontrol

The JL-118 series photoelectric switch automatically controls passage and doorway lighting based on ambient light levels. Designed with an electrical heating structure, it provides over 30 seconds of time delay to prevent unnecessary switching from spotlights or lightning at night. A temperature compensator ensures consistent performance across varying ambient temperatures. The swivel version allows easy directional adjustment after installation.

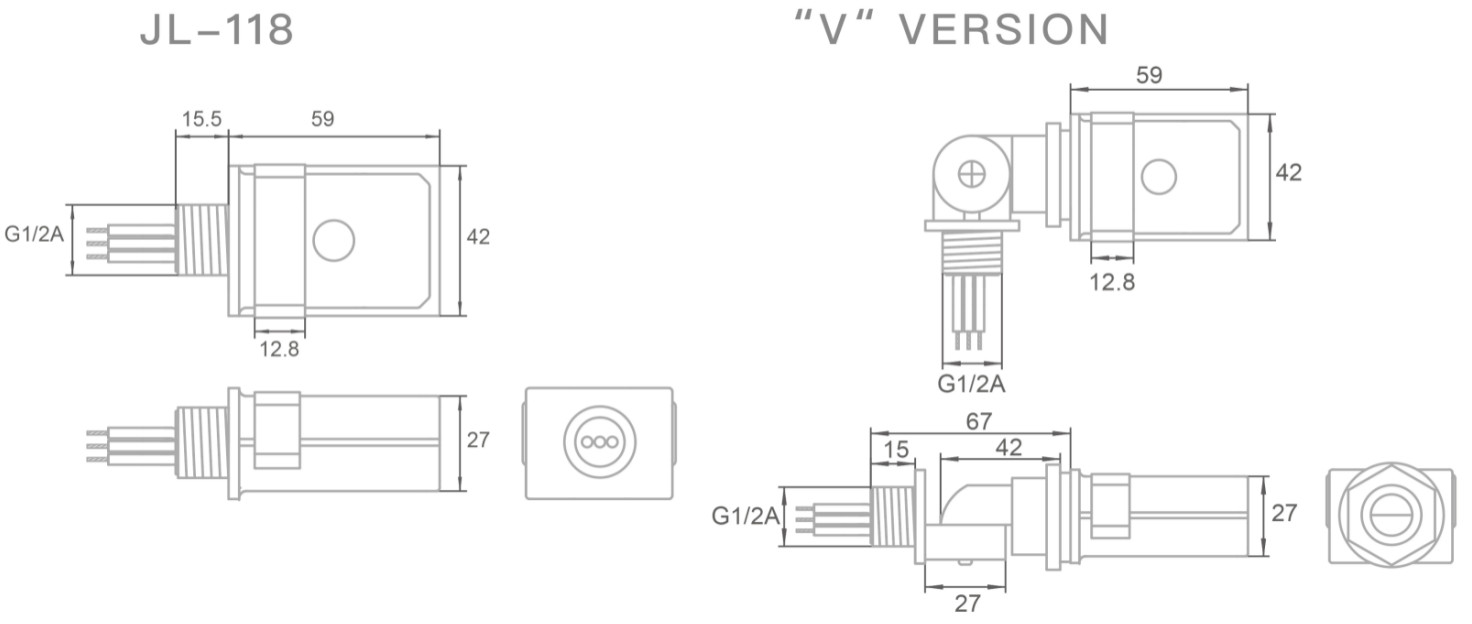

Product Size
Direct Wire In Thermal Photocontrol Passage Doorway Lighting Photoelectric Switch Time Delay Feature
Product Features
  • Time Delay: 30~120 seconds
  • Ambient Temperature: -40℃ to +70℃
  • Swivel option available
  • Screw Thread (NPT 1/2") with Zinc Alloy Nut
  • UV stabilized PC enclosure
Specifications
Model No. JL-118A(V) JL-118B(V) JL-118C(V) JL-118D(V)
Rated Voltage 120VAC 220~240VAC 208~277VAC 277VAC
Applicable Voltage Range -- 200~305VAC -- --
Rated Frequency 50/60Hz
Rated Loading 1800W Tungsten, 1100VA Ballast
Power Consumption 1.5W Max.
Operate Levels 10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature -40℃ to +70℃
Related Humidity 96%
Fail Mode Fail-On
Lead Wire AWG#16, AWM3321 4" min
Certifications Direct Wire In Thermal Photocontrol Passage Doorway Lighting Photoelectric Switch Time Delay Feature
Frequently Asked Questions
Q1: What is a direct wire in thermal photocontrol with photoelectric switch and time delay for passage and doorway lighting?
A: This is a thermal-type photocontrol with photoelectric switching function and time delay feature, using direct wire-in installation for automatic control of passage and doorway lighting.
Q2: What is the function of the time delay feature in this photoelectric switch photocontrol?
A: The time delay function prevents frequent on/off switching caused by temporary light interference, ensuring stable and reliable lighting operation.
Q3: How does this thermal photocontrol work for doorway and passage lighting?
A: It detects ambient light through the photoelectric switch, automatically turning lights on at dusk and off at dawn, with time delay to improve operational stability.
Q4: Is this photocontrol designed for direct wire-in installation?
A: Yes, it uses a direct wire-in structure for firm and convenient hardwiring, suitable for most passage and doorway lighting fixtures.
Q5: What are the advantages of this photocontrol in public area lighting?
A: It provides maintenance-free automatic control, enhances safety in corridors and doorways, reduces energy waste, and ensures stable operation with time delay protection.
