Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Specifications
Brand Name :
LongJoin
Model Number :
JL-422C(R)
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120~277VAC
Available Voltage Range :
105~305VAC
Power Consumption :
1W Max.
Fail Mode :
Fail-Off
Certifications :
RoHS,CE,UL
Real-world Scenarios :
Residential Street Lighting
Description
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
JL-422C Micro Advanced Version, Miniature Direct Wire-In Digital Photocontrol

The photocontrol JL-422C(R) is designed to automatically control passage lighting and doorway lighting based on ambient lighting levels. Featuring electronic circuits with quick response and 3-10 second time delay for easy testing, its miniature profile supports most smaller fixtures. The preset time delay prevents redundant operation due to spotlights or lightning during nighttime.

This product is UL LLC listed and complies with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A. The R version provides a separated sensor assembly.

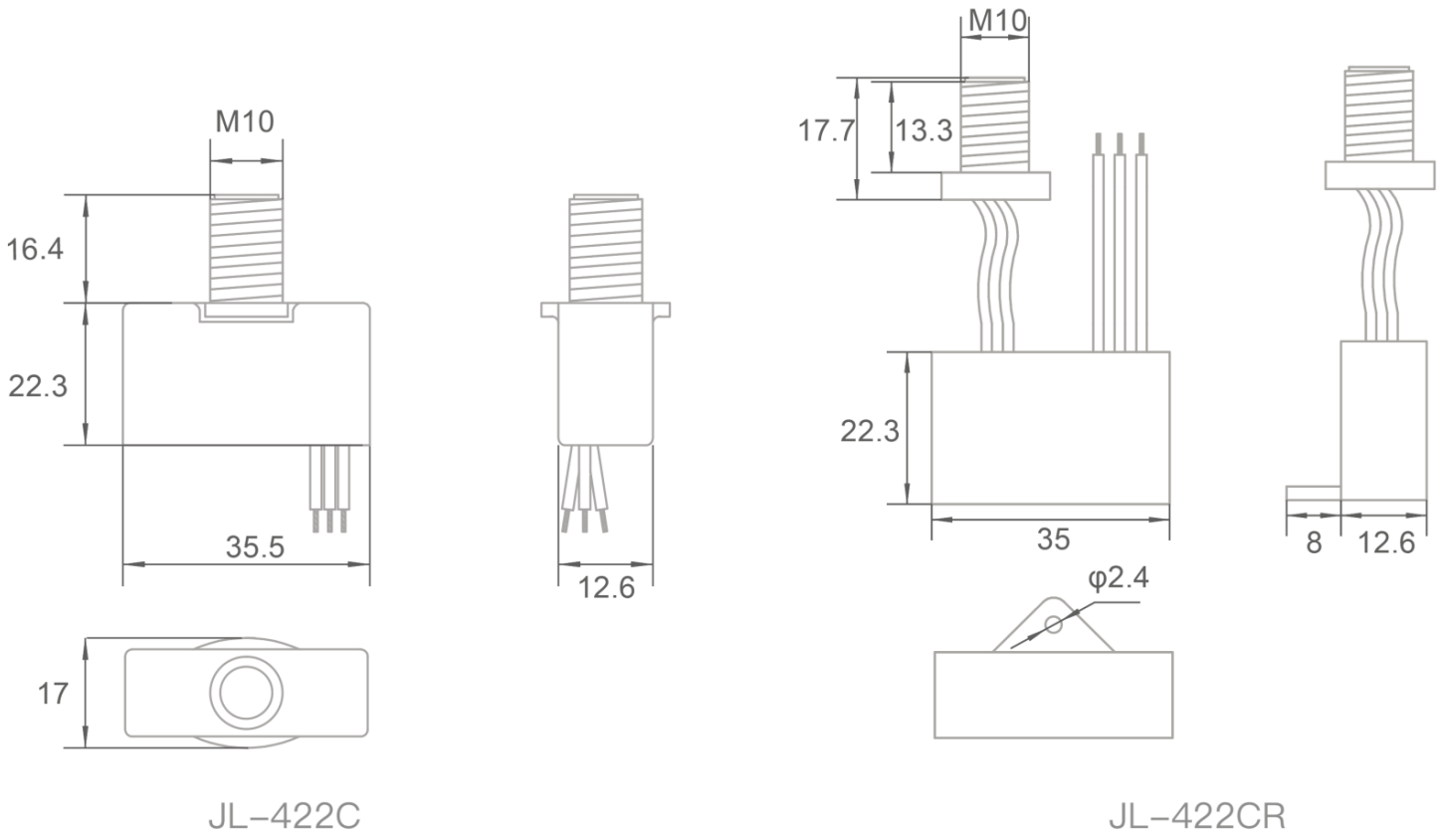

Product Size
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Product Features
  • UL773A direct wire-in
  • 120~277V Multi-Volts
  • IR-Filtered Phototransistor Sensor
  • IP65 protection
  • Miniature size
  • Interference lighting filtering
  • Zero crossing function
Specifications
Model No. JL-422C JL-422CR
Rated Voltage 120~277VAC
Available Voltage Range 105~305VAC
Rated Frequency 50/60Hz
Rated Loading 1.2A Tungsten / Ballast 1A e-Ballast
Power Consumption 1W Max.
On Levels 16 Lx(± 5)
Off Levels Initial: 24 Lx(±5) *Once reflected light(△)is detected:Δ+24±5 Lx
Fail Mode Fail-Off
Delayed 5-10S(Customizable)
Reflected light compensation upper limit 1800Lx
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Leads Length AWG #18, AWM1430
Certifications Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
Frequently Asked Questions
What is a micro advanced version miniature direct wire in digital photocontrol with adjustable lux threshold?
It is a high-performance miniature light control sensor featuring a micro advanced digital design, direct wire installation, and adjustable lux threshold, which enables precise and flexible automatic on/off control for various lighting fixtures.
What does adjustable lux threshold mean in this digital photocontrol?
Adjustable lux threshold allows users to set the exact ambient light level at which the photocontrol turns lights on or off, providing greater flexibility and accuracy compared to fixed-sensitivity photocontrols.
What are the advantages of this miniature micro advanced digital photocontrol?
This advanced version offers compact size for easy installation, stable digital control, high sensitivity, long service life, and adjustable light detection, making it ideal for small-space lighting applications.
Is this micro advanced photocontrol suitable for direct wire installation?
Yes, it supports direct wire-in connection, allowing simple and secure hardwiring into streetlights, wall packs, floodlights and other outdoor or indoor lighting systems without extra adapters.
