Specifications
Brand Name :
LongJoin
Model Number :
JL-126
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120VAC(126A) / 220~240VAC(126B) / 277VAC(126D)
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode :
Fail-On
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Residential Street Lighting
Description
Direct Wire In Thermal Photocontrol Aluminum Die Cast Enclosure Heavy Duty Passage Doorway Lighting Adjustable Lux Threshold
JL-126 Direct Wire-in Thermal Photocontrol

The JL-126 photocontrol is designed for automatic control of passage and doorway lighting based on ambient light levels. Featuring an electrical heating structure with over 30-second time delay to prevent redundant switching from spotlights or lightning, and a temperature compensator system for consistent performance across varying temperatures. Direction adjustment is convenient after installation when used with an additional swivel.

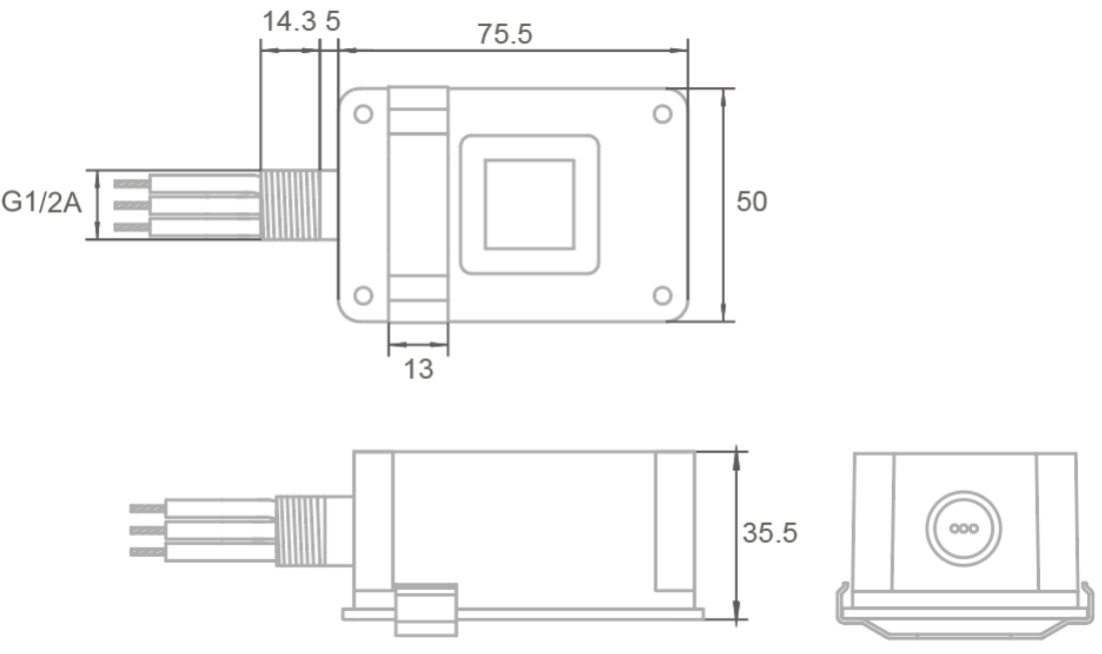

Product Dimensions
Direct Wire In Thermal Photocontrol Aluminum Die Cast Enclosure Heavy Dutypassage Doorway Lighting Adjustable Lux Threshold
Product Features
  • Time Delay: 30~120 seconds
  • Ambient Temperature Range: -40℃ to +70℃
  • Additional Swivel Available
  • Screw Thread (NPT 1/2") with Zinc Alloy Nut
  • Aluminum Die-cast Enclosure
  • Heavy Duty up to 3000VA
Technical Specifications
Model No. JL-126A JL-126B JL-126D
Rated Voltage 120VAC 220~240VAC 277VAC
Rated Frequency 50/60Hz
Rated Loading 3000W Tungsten, 2000VA Ballast 3000W Tungsten, 3000VA Ballast
Power Consumption 1.5W Max.
Operate Levels 10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Fail Mode Fail-On
Lead Wire N: AWG#18 AWM1015; Li/L0: AWG#10 AWM1015 6" min
Certifications Direct Wire In Thermal Photocontrol Aluminum Die Cast Enclosure Heavy Dutypassage Doorway Lighting Adjustable Lux Threshold
Frequently Asked Questions
What is a direct wire in thermal photocontrol with aluminum die cast enclosure for heavy-duty passage and doorway lighting?
It is a heavy-duty thermal photocontrol with an aluminum die cast enclosure, supporting direct wire-in installation and adjustable lux threshold, designed for reliable control of passage and doorway lighting.
What are the advantages of an aluminum die cast enclosure for this photocontrol?
The aluminum die cast enclosure provides excellent heat dissipation, durability, waterproof and corrosion resistance, making the photocontrol suitable for long-term heavy-duty outdoor use.
What does adjustable lux threshold mean on this heavy-duty thermal photocontrol?
Adjustable lux threshold allows users to set the precise ambient light level for automatic on/off control, adapting to different installation environments and lighting requirements.
Is this thermal photocontrol suitable for heavy-duty passage and doorway lighting?
Yes, its heavy-duty construction and stable thermal design make it ideal for continuous operation in passageways, doorways, corridors and other high-frequency use areas.
How is this heavy-duty photocontrol installed?
It uses a direct wire-in installation method for secure and stable wiring, suitable for commercial and industrial-grade heavy-duty lighting fixtures.
