Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Specifications
Brand Name :
LongJoin
Model Number :
JL-303
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120VAC(303A) / 240VAC(303B)
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Adapter :
E26(303A) / E27(303B)
Certifications :
RoHS,UL(303A),CE
Real-world Scenarios :
Residential Street Lighting
Description
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
JL-303 Bulb Holder Control

The Bulb Holder control JL-303 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.

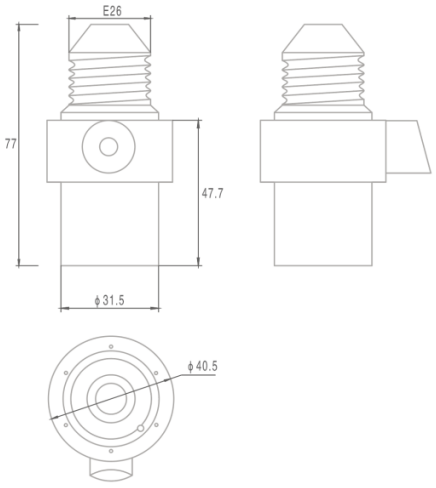

Product Size
Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Product Features
  • Time Delay 20~120s
  • Ambient Temperature: -40°C ~ +70°C
  • Convenient and easy to install
  • Works on any type of lamp
  • Improves security
  • Supports CFL, LED bulbs also
Specifications
Model No. JL-303A JL-303B
Rated Voltage 120VAC 240VAC
Rated Frequency 60Hz 50/60Hz
Rated Loading 150W Tungsten
Power Consumption 1.5W Max.
Operate Levels 10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
UL File number E346727 --
Adapter E26 E27
Failure Mode Fail-On
Sunshade sleeve ●
Certifications Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered Bulb Holder Control Street Lighting Passage Lighting And Doorway Lighting Infrared Filtered
Frequently Asked Questions
What is a bulb holder control with infrared filtering for street, passage and doorway lighting?

It is an automatic light-sensing bulb holder controller equipped with infrared filtering, specially designed for street lighting, passage lighting and doorway lighting to achieve stable dusk-to-dawn control.

What is the function of infrared filtering in this bulb holder control?

Infrared filtering effectively blocks interference from heat sources and infrared light, preventing false triggering and ensuring accurate on/off control based on real ambient light.

What lighting scenarios is this bulb holder controller suitable for?

It is widely used in street lighting, passage lighting, doorway lighting, corridor lamps and outdoor entrance lighting that requires reliable automatic control.

How to install this infrared filtered bulb holder control?

It is very easy to install; simply screw it into a standard lamp socket and then install the bulb, no complicated wiring or tools required.

What are the benefits of using this controller for street and doorway lighting?

It improves lighting stability, reduces energy waste, enhances safety at night, and requires no manual operation for long-term unattended lighting areas.
