Specifications
Brand Name :
LongJoin
Model Number :
JL-403C(M）
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120~277VAC
Available Voltage Range :
105~305VAC
Power Consumption :
1.8W@120VAC
Failure Mode :
Fail-Off
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Residential Street Lighting
Description
Direct Wire In Electronic Photocontrol Doorway Lighting UL Certification
JL-403C Direct Wire-In Electronic Photocontrol Doorway Lighting

The JL-403C photocontrol is designed to automatically control street lighting, passage lighting, and doorway lighting based on ambient light levels. This electronic circuit-based product features quick response with a 3-10 second time delay for easy testing and offers a wide voltage range for compatibility with various power supplies.

Product Features
  • 3-10 second time delay prevents redundant turning-off caused by headlights or lightning
  • Electronic circuit design for quick response
  • Wide voltage range compatibility
  • UL certified for safety and reliability

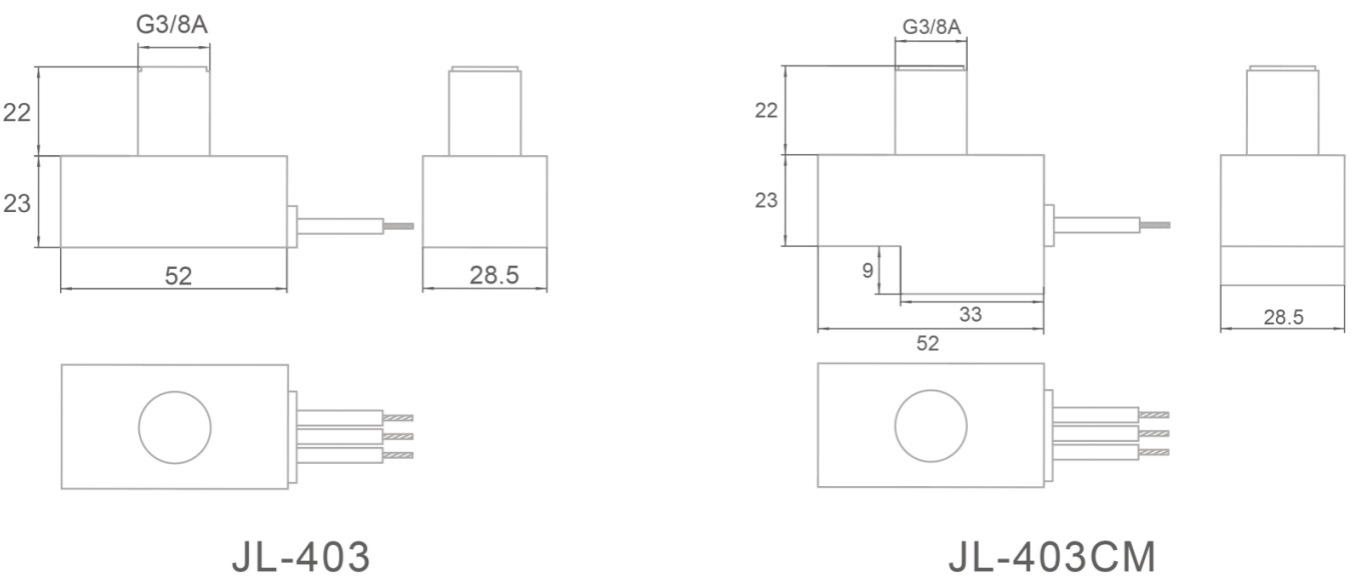

Product Dimensions
Direct Wire In Electronic Photocontrol Doorway Lighting UL Certification
Technical Specifications
Model No. JL-403C JL-403CM JL-403CW
Rated Voltage 120~277VAC
Available Voltage Range 105~305VAC
Rated Frequency 50/60Hz
Rated Loading 500W Tungsten, 850VA Ballast, 5A e-Ballast
Power Consumption 1.8W@120VAC
Operate Levels 10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Leads AWG #18, AWM 1015 4" min
Failure Mode Fail-Off
Rainproof Cap Optional
Certifications Direct Wire In Electronic Photocontrol Doorway Lighting UL Certification
Frequently Asked Questions
What is a direct wire in electronic photocontrol for doorway lighting with UL certification?

It is an electronic light control device designed for direct wire installation, specially used for doorway lighting, and has obtained UL safety certification for reliable and compliant operation.

Why is UL certification important for this direct wire in photocontrol?

UL certification ensures the product meets strict North American safety standards, including electrical safety, temperature resistance and reliability, making it safe for residential and commercial use.

How is this electronic photocontrol installed for doorway lighting?

It uses a direct wire-in design for simple hardwiring into doorway lighting fixtures, without additional adapters, enabling fast and stable installation.

What are the main functions of this UL certified photocontrol for doorway lighting?

It automatically controls lights on at dusk and off at dawn, improving safety for doorways, saving energy, and requiring no manual operation.

In which places is this direct wire photocontrol mainly applied?

It is mainly used in residential and commercial doorway lighting, porch lights, corridor lights and entrance lighting that requires safe and automatic control.
