Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Specifications
Brand Name :
LongJoin
Model Number :
JL-102A
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120VAC
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode :
Fail-On
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Residential Street Lighting
Description
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
JL-102A Micro Buckle Type Direct Wire-in Thermal Photocontrol Miniature

The photocontrol JL-102 is designed to automatically control passage lighting and doorway lighting based on ambient lighting levels. This product complies with the Standard for Non-industrial Photocontrol for Lighting Control UL773A.

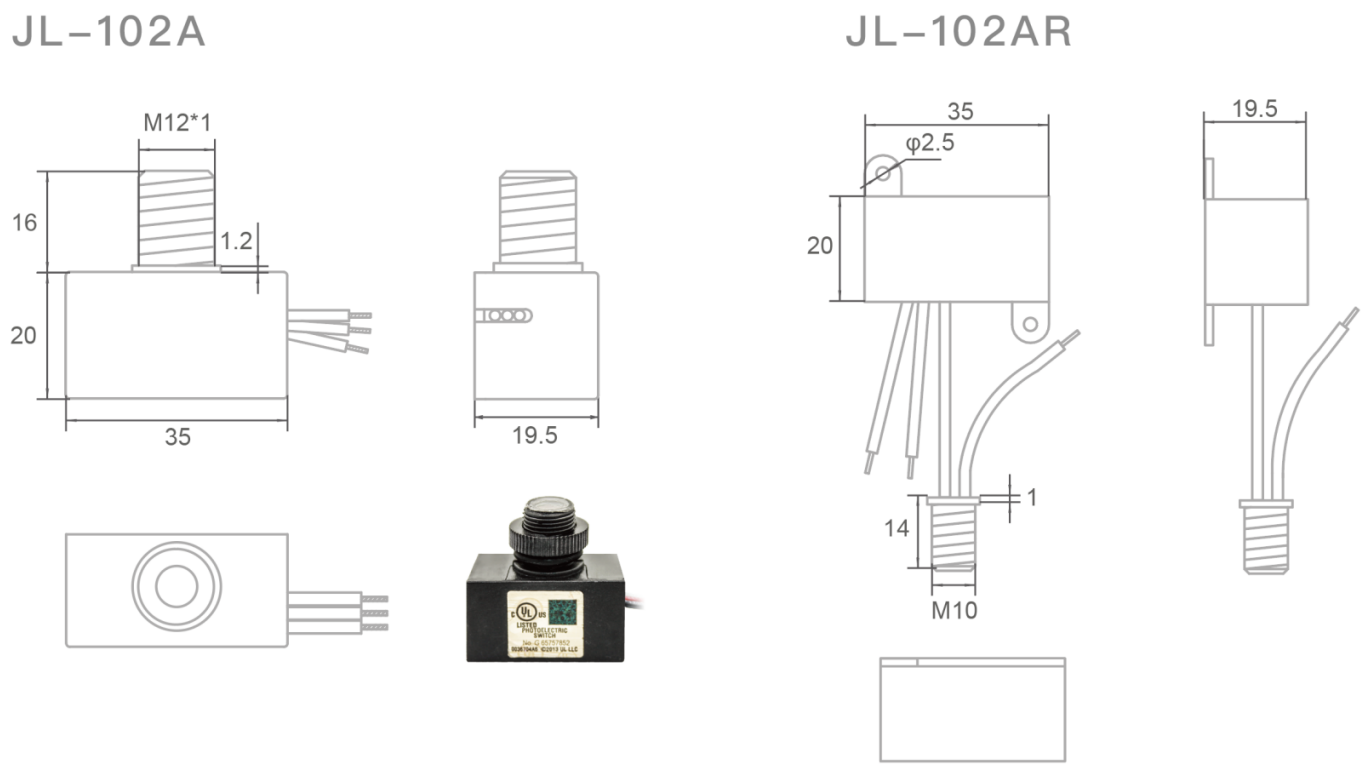

Product Size
Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Product Features
  • Time Delay: 20~120 seconds
  • Ambient Temperature: -20℃ to +70℃
  • PET enclosure (UL94 V-0 rated)
  • Sensor separated for flexible allocations inside fixture (JL-102AR model only)
Specifications
Model No. JL-102A / JL-102AR
Rated Voltage 120VAC
Rated Frequency 50/60Hz
Rated Loading 600W Tungsten, 480VA Ballast, 2A e-Ballast
Power Consumption 1.5W Max.
Operate Levels 10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature -20℃ ~ +70℃
Related Humidity 96%
Fail Mode Fail-On
Lead Wire AWG#18, AWM1332
Rainproof Cap Optional
Certifications Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
Frequently Asked Questions
What is a micro buckle type direct wire in thermal photocontrol with miniature silicon phototransistor?

It is a compact micro buckle thermal photocontrol with direct wire-in installation, equipped with a miniature silicon phototransistor for high-precision light sensing.

What are the advantages of the micro buckle type structure?

The micro buckle design features a small size, firm installation, space-saving, and easy assembly in compact lighting fixtures.

What benefits does the miniature silicon phototransistor bring?

It provides high sensitivity, fast response, stable performance and strong anti-interference ability, ensuring accurate dusk-to-dawn control.

Is this photocontrol suitable for direct wire-in installation?

Yes, it adopts a direct wire-in structure for safe, stable and convenient hardwiring in various small lighting fixtures.

What applications is this micro buckle photocontrol mainly used for?

It is mainly used in small outdoor lights, doorway lamps, passage lighting, wall lamps and other compact fixtures requiring miniaturized light control.
