Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Specifications
Brand Name :
LongJoin
Model Number :
JL-101A
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120VAC
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode :
Fail-On
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Residential Street Lighting
Description
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
JL-101A Direct Wire-in Thermal Photocontrol

The JL-101A photocontrol is designed to automatically control passage and doorway lighting based on ambient lighting levels. This product complies with the Standard for Non-industrial Photocontrol for Lighting Control UL773A.

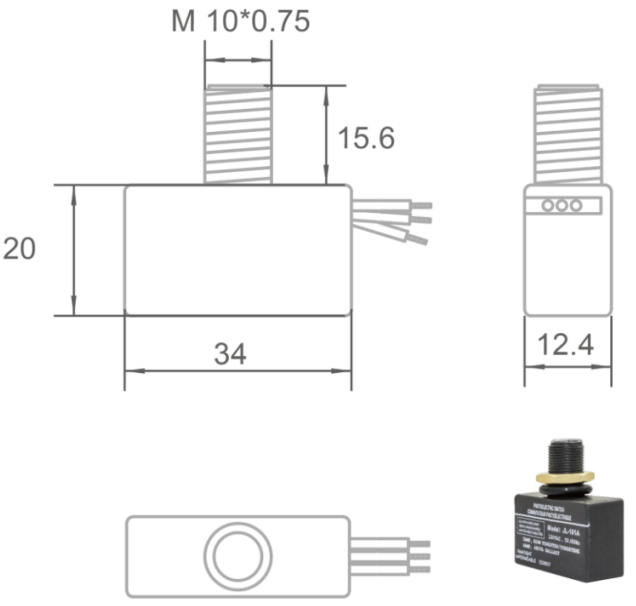

Product Dimensions
Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Product Features
  • Time Delay: 20~120 seconds
  • Ambient Temperature Range: -20℃ to +70℃
  • PET enclosure (UL94 V-0 rated)
  • Copper alloy lock nut
Technical Specifications
Model No. JL-101A
Rated Voltage 120VAC
Rated Frequency 50/60Hz
Rated Loading 600W Tungsten, 480VA Ballast, 2A e-Ballast
Power Consumption 1.5W Max.
Operate Levels 10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature -20℃ ~ +70℃
Related Humidity 96%
Fail Mode Fail-On
Lead Wire AWG#18, AWM1332
Rainproof Cap Optional
Certifications Direct Wire In Thermal Photocontrol Sub Miniature Ultra Small Buckle Type Adjustable Lux Threshold
Frequently Asked Questions
What is a sub miniature ultra small buckle type direct wire in thermal photocontrol with adjustable lux threshold?

It is an extremely compact, ultra-small buckle-style thermal photocontrol for direct wire-in installation, featuring adjustable lux threshold for precise lighting control.

What are the advantages of its sub miniature and ultra small buckle design?

The ultra-small size and buckle structure allow easy installation in limited spaces, ensure firm mounting, and fit compact lighting fixtures without taking extra room.

What does the adjustable lux threshold function do?

It allows users to set the exact ambient light level for automatic on/off switching, making the photocontrol adaptable to different installation environments.

Is this photocontrol installed by direct wire-in method?

Yes, it uses direct wire-in wiring for stable and reliable connection, suitable for small lighting equipment and narrow installation spaces.

In which scenarios is this ultra-small thermal photocontrol mainly applied?

It is mainly used in miniature lamps, small doorway lights, passage lighting, decorative lights and compact outdoor fixtures that require tiny size and flexible light control.
