Specifications
Brand Name :
LongJoin
Model Number :
JL-103
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode :
Fail-On
Certifications :
RoHS,UL,CE,CB,UKCA
Description
Small Buckle Type Direct Wire In Thermal Photocontrol Traditional Button Type Adjustable Lux Threshold
JL-103 Small Buckle Type Direct Wire-in Thermal Photocontrol

The JL-103 photocontrol is designed to automatically control passage lighting and doorway lighting based on ambient lighting levels. This UL LLC listed product complies with the Standard for Non-industrial Photocontrols for Lighting Control UL773A.

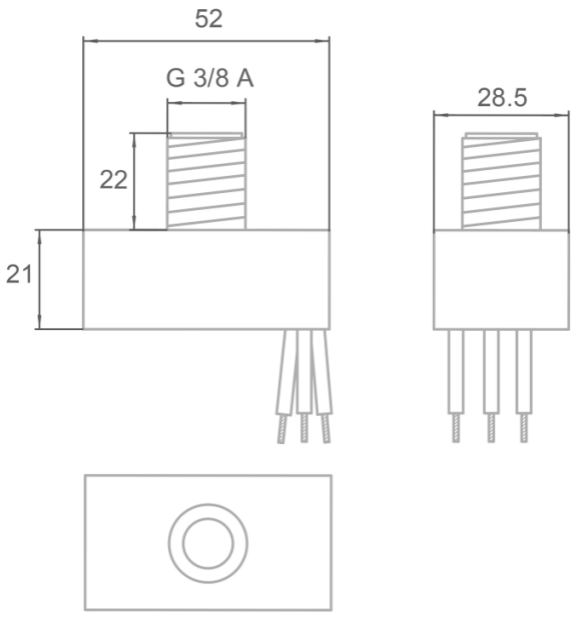

Product Dimensions
Small Buckle Type Direct Wire In Thermal Photocontrol Traditional Button Type Adjustable Lux Threshold
Product Features
  • Time Delay: 20~120 seconds
  • Ambient Temperature Range: -40℃ ~ +70℃
  • UV stabilized PC enclosure
Technical Specifications
Model No. JL-103A JL-103B JL-103C JL-103D JL-103EE JL-103FE
Rated Voltage 120VAC 220~240VAC 208~277VAC 277VAC 347VAC 480VAC
Applicable Voltage Range -- 200~305VAC
Rated Frequency 50/60Hz
Wire Length 4" min
Wiring Material AWG#18, AWM1015 AWG#18, AWM1015 AWG#16, AWM3321 AWG#18, AWM1015 AWG#16, AWM3321 AWG#16, AWM3321
Rated Loading 500W 850VA 500W 850VA 1500W 1500VA 500W 850VA 2000W 2000VA 2000W 2000VA
Power Consumption 1.5W Max.
Operate Levels 10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Fail Mode Fail-On
Rainproof Cap Optional
Certifications Small Buckle Type Direct Wire In Thermal Photocontrol Traditional Button Type Adjustable Lux Threshold Small Buckle Type Direct Wire In Thermal Photocontrol Traditional Button Type Adjustable Lux Threshold Small Buckle Type Direct Wire In Thermal Photocontrol Traditional Button Type Adjustable Lux Threshold Small Buckle Type Direct Wire In Thermal Photocontrol Traditional Button Type Adjustable Lux Threshold --
Frequently Asked Questions
What is a small buckle type direct wire in thermal photocontrol with traditional button type adjustable lux threshold?
It is a compact small buckle thermal photocontrol with direct wire-in installation, using a traditional button design to adjust the lux threshold for precise lighting control.
What are the advantages of the small buckle type structure for this photocontrol?
The small buckle design enables compact size, easy installation, firm fixation and space-saving installation in various lighting fixtures.
How does the traditional button type adjustable lux threshold work?
The traditional button allows users to manually set the ambient light level for switching lights, making operation simple and intuitive.
Is this thermal photocontrol suitable for direct wire-in installation?
Yes, it supports direct hardwiring installation, which is stable and reliable for long-term use in outdoor and indoor lighting systems.
In what lighting scenarios is this small buckle photocontrol mainly applied?
It is widely used in small outdoor lights, passage lamps, doorway lighting, wall packs and other fixtures requiring compact and adjustable light control.
