Zhaga Book 18 Receptacle Spring Needle Plate Industrial Park Management
Product Overview

JL-700T Zhaga Book-18 Receptacle Spring needle plate road lighting, regional lighting or commercial and residential lighting

The JL-700T Zhaga Book 18 Receptacle is a professional spring needle plate type locking connector, specially developed for industrial park intelligent management systems and full-scene outdoor lighting applications. Fully compliant with Zhaga Book 18 standard interface specifications (Z-LEX-R, Z-LEX-C) and certified with industry-standard qualifications, it adopts a high-reliability elastic spring needle conductive structure, completely different from traditional pin connectors.
Designed to solve poor contact, abrasion failure and unstable signal transmission of industrial lighting interfaces, this receptacle provides stable 24VDC power supply and precise signal interaction for intelligent lighting modules. It is widely applicable to industrial park road lighting, workshop perimeter lighting, parking lot lighting, municipal regional lighting, as well as commercial and residential lighting equipment such as street lights, industrial and mining lights, corridor lights and wall lights. It serves as a core standardized hardware component for intelligent transformation, unified management and energy-saving operation of industrial park lighting infrastructure.

Product Summary
JL-700T locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R, Z-LEX-C) and has passed relevant certification. This facilitates the development and installation of road lighting, regional lighting, or commercial and residential lighting applications, including street lights, industrial and mining lights, corridor lights, wall lights, and more.

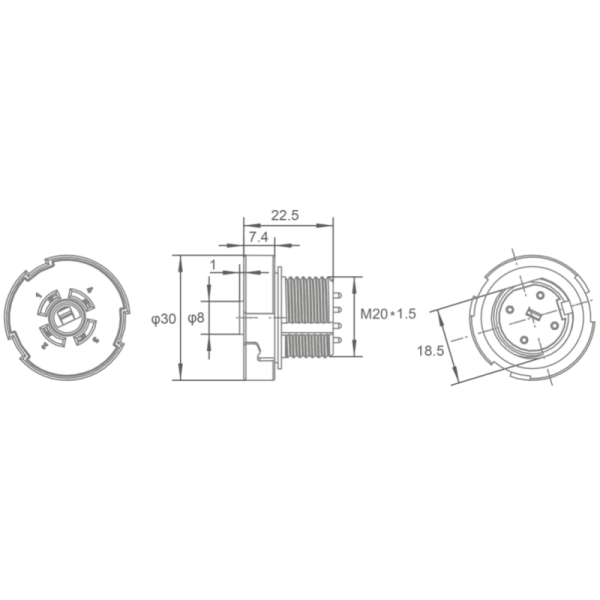

Product Dimensions
Zhaga Book 18 Receptacle Spring Needle Plate Industrial Park Management
Drilling Plan
Zhaga Book 18 Receptacle Spring Needle Plate Industrial Park Management
Product Features
  • Standardized interface defined in Zhaga Book-18
  • Compact size allowing greater flexibility in luminaire design
  • Advanced sealing to achieve IP66 with no mounting screws
  • Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
  • Flexible mounting position, upwards, downwards and sideways facing
  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time
Specifications
Model No. JL-700T
Rated Voltage 24VDC
Power Consumption 1.5A MAX
Related Humidity 96%
Ambient Temperature -40°C ~ +70°C
IP IP66
Certifications Zhaga Book 18 Receptacle Spring Needle Plate Industrial Park Management
Frequently Asked Questions

Q1: What is the spring‑needle‑plate‑type Zhaga Book 18 receptacle used in industrial park management?

A1: It is a standard‑compliant connector that meets Zhaga Book 18 specifications, adopting spring needle contact plates as its conductive structure. Installed inside LED street lamps and workshop outdoor lights, it works as the docking port for intelligent control modules. It assists the industrial park to realize unified regulation on public lighting, equipment inspection and energy‑consumption management.

Q2: What merits does the spring needle plate contact structure have over traditional metal pin connectors?

A2: The elastic spring needles can keep tight contact even under long‑time vibration, temperature expansion and contraction. It lessens the risk of poor signal connection caused by abrasion, loose pins and rust. The integrated needle‑plate structure also speeds‑up assembly, cuts assembly gaps and strengthens the receptacle’s overall dust‑proof and waterproof performance.

Q3: How does this Zhaga receptacle assist daily facility management inside industrial parks?

A3: Following standard pin definitions, the component provides standby power and signal channels for light sensors, communication nodes and monitoring accessories. Managers are able to achieve timed dimming, human‑sensor brightness adjustment, lamp fault reminder and remote data statistics for road lights, warehouse perimeter lamps and parking‑zone lights across the whole park.

Q4: Can the spring‑needle‑plate receptacle adapt to the complicated outdoor environment of an industrial zone?

A4: The contact spring needles are made of wear‑resistant, anti‑corrosion metal material. The whole‑unit sealed casing reaches high‑level weather‑resistant grade, resisting industrial dust, humid air, temperature swings and outdoor ultraviolet exposure. Stable contact performance can be maintained for long‑hour all‑day operation of park lighting equipment.

Q5: What long‑term operational benefits does this product bring to industrial‑park lighting renovation and asset maintenance?

A5: The unified Zhaga Book 18 standard supports plug‑and‑play replacement of third‑party intelligent modules. When the park needs to upgrade its lighting system, workers can update sensing and communication parts without re‑processing lamp housings. Its durable spring‑needle design reduces contact‑related breakdowns, cuts routine maintenance workload and helps the industrial park lower lighting power consumption and facility‑management costs.
