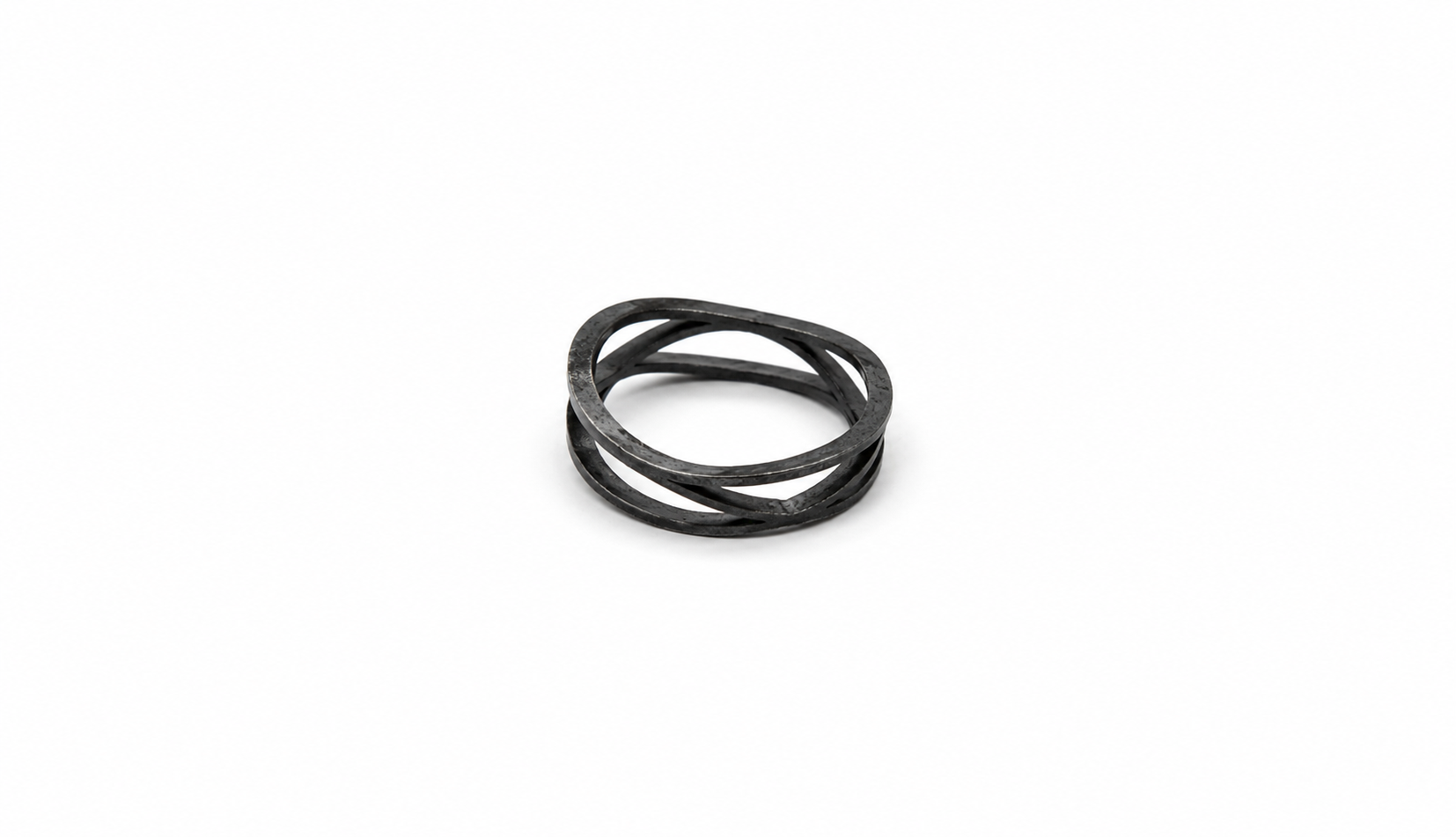

Heavy Duty Coil Spring Wave Spring For Bearing ISO13485 Certificated
Heavy Duty Coil Spring Wave Spring For Bearing ISO13485 Certificated
Specifications
MOQ :
1 set
Corrosion Resistance :
Standard / High Corrosion Resistance
Certification :
ISO14001；ISO13485；IATF16949
Packaging Details :
Standard export packaging
Heat Treatment :
Stress Relieving / Heat Treatment
Material :
Stainless Steel / Carbon Steel / Alloy Steel
Environment :
High Temperature / Corrosive / Vacuum
Brand Name :
Liyu
Manufacturing Process :
CNC Forming / Automatic Stamping
Place of Origin :
China
Precision Grade :
Standard / High Precision
Payment Terms :
L/C,T/T
Surface Treatment :
Passivation / Nickel Plating / Black Oxide
Wave Spring Type :
Crest-to-Crest / Single Turn / Multi Turn / Nested Wave Spring
Price :
Negotiation
Model Number :
Wave Springs
Spring Type :
Wave Spring
Description
Wave Springs·CUSTOMIZATION

We provide complete customized wave spring solutions from design development to mass production. Our services include engineering consultation, material selection, prototype manufacturing, precision production, quality inspection, and export support. Whether you need miniature wave springs, stainless steel wave springs, or special OEM designs, our experienced team can provide reliable products that meet international quality standards and application requirements.

The parameters of the wave spring

Heavy Duty Coil Spring Wave Spring For Bearing ISO13485 Certificated


The advantages of wave springs

The uniqueness of the wave spring is that in terms of workload, the space occupied by the wave spring is relatively small. In fact, wave springs can reduce the size and weight of components by up to 50%. The wave spring is made of 17-7 stainless steel single-stranded filament, contains a continuous precision coil, and the diameter is consistent with the waveform. The diameter range is: 0.375 inches (9.52 mm) to 1.25 inches (31.75 mm) in order to meet the load requirements: 4 lbs (1.8 kg) to 30 lbs (13.6 kg).

Heavy Duty Coil Spring Wave Spring For Bearing ISO13485 Certificated


Specifications

  • The thickness range is 0.006 inches (0.15 mm) ~ 0.039 inches (1 mm)
  • The wire width is 0.024 inches (0.60 mm) ~ 0.230 inches (6.00 mm)
  • The outer diameter range is 0.25 inches (6.00 mm) ~ 5 inches (127.00 mm)
Characteristic Parameter

Structure

 Conventional (bottle loops at both ends closed)
Flat loops at both ends closed

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire

Heavy Duty Coil Spring Wave Spring For Bearing ISO13485 CertificatedHeavy Duty Coil Spring Wave Spring For Bearing ISO13485 Certificated
