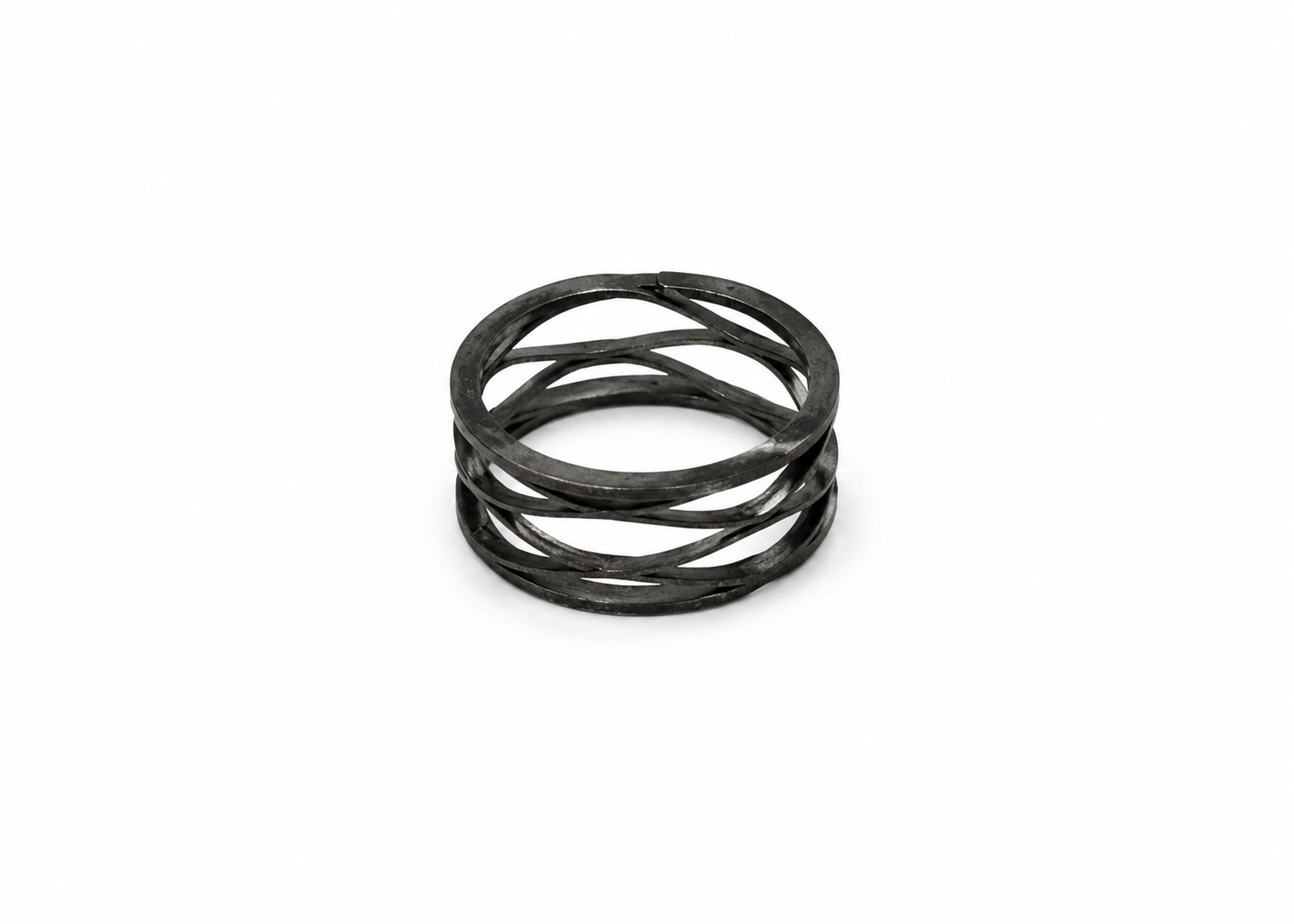

SUS316 Stainless Steel Metric Wave Washers Springs Coil In Bulk
SUS316 Stainless Steel Metric Wave Washers Springs Coil In Bulk
Specifications
Price :
Negotiation
Environment :
High Temperature / Corrosive / Vacuum
Certification :
ISO13485；ISO14001；IATF16949
Model Number :
Wave Springs
Payment Terms :
L/C,T/T
Material Form :
Flat Wire / Round Wire
Surface Treatment :
Passivation / Nickel Plating / Black Oxide
Corrosion Resistance :
Standard / High Corrosion Resistance
Manufacturing Process :
CNC Forming / Automatic Stamping
Brand Name :
Liyu
Heat Treatment :
Stress Relieving / Heat Treatment
MOQ :
1 set
Packaging Details :
Standard export packaging
Place of Origin :
China
Spring Type :
Wave Spring
Precision Grade :
Standard / High Precision
Material :
Stainless Steel / Carbon Steel / Alloy Steel
Description
Wave Springs·CUSTOMIZATION

Precision wave springs are ideal for applications requiring accurate force control and compact spring designs. Compared with traditional coil compression springs, wave springs provide similar load capacity with reduced axial space requirements. Our precision wave springs are manufactured using advanced technology to ensure excellent dimensional accuracy, stable spring performance, and long service life. They are widely used in bearings, valves, automotive components, medical devices, and precision machinery.

The parameters of the wave spring

SUS316 Stainless Steel Metric Wave Washers Springs Coil In Bulk


The advantages of wave springs

The uniqueness of the wave spring is that in terms of workload, the space occupied by the wave spring is relatively small. In fact, wave springs can reduce the size and weight of components by up to 50%. The wave spring is made of 17-7 stainless steel single-stranded filament, contains a continuous precision coil, and the diameter is consistent with the waveform. The diameter range is: 0.375 inches (9.52 mm) to 1.25 inches (31.75 mm) in order to meet the load requirements: 4 lbs (1.8 kg) to 30 lbs (13.6 kg).

SUS316 Stainless Steel Metric Wave Washers Springs Coil In Bulk


Specifications

  • The thickness range is 0.006 inches (0.15 mm) ~ 0.039 inches (1 mm)
  • The wire width is 0.024 inches (0.60 mm) ~ 0.230 inches (6.00 mm)
  • The outer diameter range is 0.25 inches (6.00 mm) ~ 5 inches (127.00 mm)
Characteristic Parameter

Structure

 Conventional (bottle loops at both ends closed)
Flat loops at both ends closed

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire

SUS316 Stainless Steel Metric Wave Washers Springs Coil In BulkSUS316 Stainless Steel Metric Wave Washers Springs Coil In Bulk
