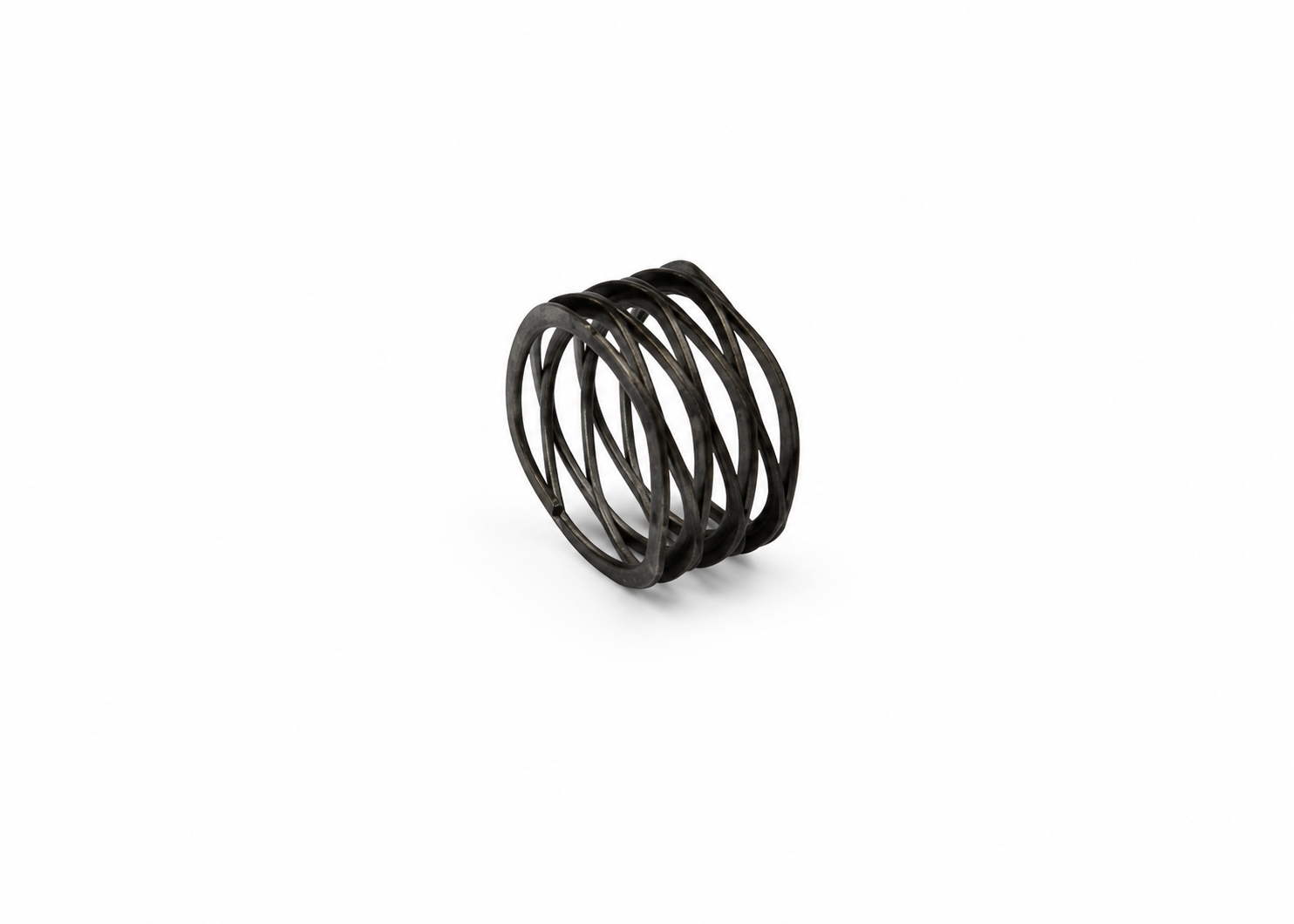

Prototypes Passivation Custom Wave Springs For Bearing Single Turn
Prototypes Passivation Custom Wave Springs For Bearing Single Turn
Specifications
Price :
Negotiation
Manufacturing Process :
CNC Forming / Automatic Stamping
Brand Name :
Liyu
Material Form :
Flat Wire / Round Wire
Precision Grade :
Standard / High Precision
Corrosion Resistance :
Standard / High Corrosion Resistance
Model Number :
Wave Springs
Heat Treatment :
Stress Relieving / Heat Treatment
Certification :
ISO13485；ISO14001；IATF16949
Packaging Details :
Standard export packaging
Surface Treatment :
Passivation / Nickel Plating / Black Oxide
Place of Origin :
China
Inspection Standard :
ISO / ASTM / DIN
MOQ :
1 set
Payment Terms :
L/C,T/T
Wave Spring Type :
Crest-to-Crest / Single Turn / Multi Turn / Nested Wave Spring
Spring Type :
Wave Spring
Description
Wave Springs·CUSTOMIZATION

As an experienced OEM wave spring supplier, we specialize in customized manufacturing of precision wave springs for global industries. Our engineering team provides professional support in spring design, material selection, load calculation, and production optimization. We manufacture wave springs with accurate dimensions, stable force performance, and consistent quality. Whether for prototypes, small batches, or large-volume production, we deliver flexible and reliable OEM spring solutions.

The parameters of the wave spring

Prototypes Passivation Custom Wave Springs For Bearing Single Turn


The advantages of wave springs

The uniqueness of the wave spring is that in terms of workload, the space occupied by the wave spring is relatively small. In fact, wave springs can reduce the size and weight of components by up to 50%. The wave spring is made of 17-7 stainless steel single-stranded filament, contains a continuous precision coil, and the diameter is consistent with the waveform. The diameter range is: 0.375 inches (9.52 mm) to 1.25 inches (31.75 mm) in order to meet the load requirements: 4 lbs (1.8 kg) to 30 lbs (13.6 kg).

Prototypes Passivation Custom Wave Springs For Bearing Single Turn


Specifications

  • The thickness range is 0.006 inches (0.15 mm) ~ 0.039 inches (1 mm)
  • The wire width is 0.024 inches (0.60 mm) ~ 0.230 inches (6.00 mm)
  • The outer diameter range is 0.25 inches (6.00 mm) ~ 5 inches (127.00 mm)
Characteristic Parameter

Structure

 Conventional (bottle loops at both ends closed)
Flat loops at both ends closed

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire

Prototypes Passivation Custom Wave Springs For Bearing Single TurnPrototypes Passivation Custom Wave Springs For Bearing Single Turn
