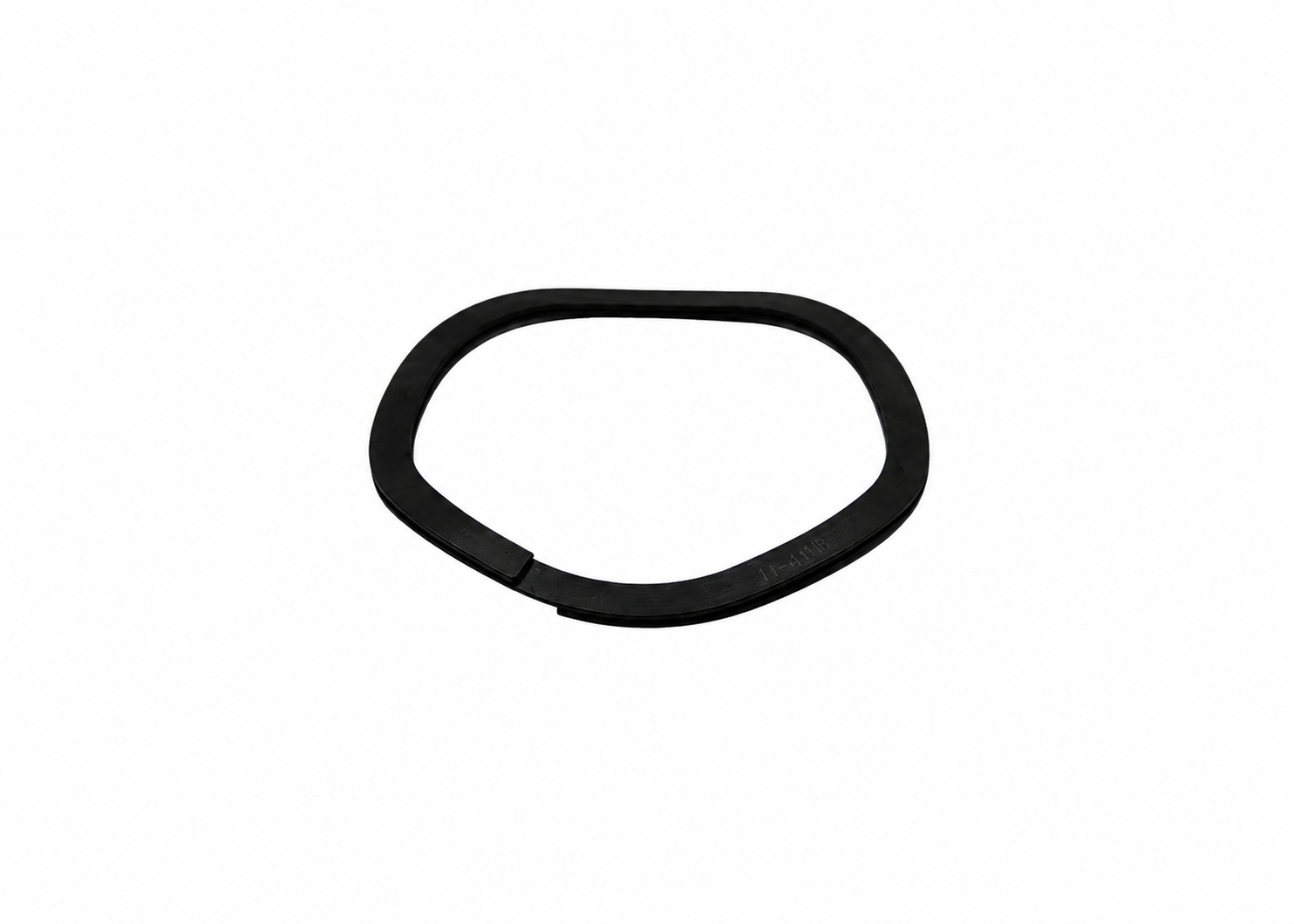

ISO14001 Miniature Wave Disc Spring Washer Springs Zinc Plated
ISO14001 Miniature Wave Disc Spring Washer Springs Zinc Plated
Specifications
Corrosion Resistance :
Standard / High Corrosion Resistance
Packaging Details :
Standard export packaging
Place of Origin :
China
Material Form :
Flat Wire / Round Wire
MOQ :
1 set
Price :
Negotiation
Surface Treatment :
Passivation / Nickel Plating / Black Oxide
Precision Grade :
Standard / High Precision
Material :
Stainless Steel / Carbon Steel / Alloy Steel
Manufacturing Process :
CNC Forming / Automatic Stamping
Model Number :
Wave Springs
Payment Terms :
L/C,T/T
Certification :
ISO13485；ISO14001；IATF16949
Inspection Standard :
ISO / ASTM / DIN
Wave Spring Type :
Crest-to-Crest / Single Turn / Multi Turn / Nested Wave Spring
Brand Name :
Liyu
Spring Type :
Wave Spring
Description
Wave Springs·CUSTOMIZATION

We are a professional custom wave spring manufacturer providing high-quality wave spring solutions for customers worldwide. Our wave springs are designed to deliver reliable axial force, compact installation, and excellent performance in limited spaces. With advanced CNC spring manufacturing equipment and strict quality control, we produce wave springs according to customer drawings, samples, and technical specifications. From standard wave springs to fully customized OEM designs, we provide reliable spring solutions for industrial applications.

The parameters of the wave spring

ISO14001 Miniature Wave Disc Spring Washer Springs Zinc Plated


The advantages of wave springs

The uniqueness of the wave spring is that in terms of workload, the space occupied by the wave spring is relatively small. In fact, wave springs can reduce the size and weight of components by up to 50%. The wave spring is made of 17-7 stainless steel single-stranded filament, contains a continuous precision coil, and the diameter is consistent with the waveform. The diameter range is: 0.375 inches (9.52 mm) to 1.25 inches (31.75 mm) in order to meet the load requirements: 4 lbs (1.8 kg) to 30 lbs (13.6 kg).

ISO14001 Miniature Wave Disc Spring Washer Springs Zinc Plated


Specifications

  • The thickness range is 0.006 inches (0.15 mm) ~ 0.039 inches (1 mm)
  • The wire width is 0.024 inches (0.60 mm) ~ 0.230 inches (6.00 mm)
  • The outer diameter range is 0.25 inches (6.00 mm) ~ 5 inches (127.00 mm)
Characteristic Parameter

Structure

 Conventional (bottle loops at both ends closed)
Flat loops at both ends closed

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire

ISO14001 Miniature Wave Disc Spring Washer Springs Zinc PlatedISO14001 Miniature Wave Disc Spring Washer Springs Zinc Plated
