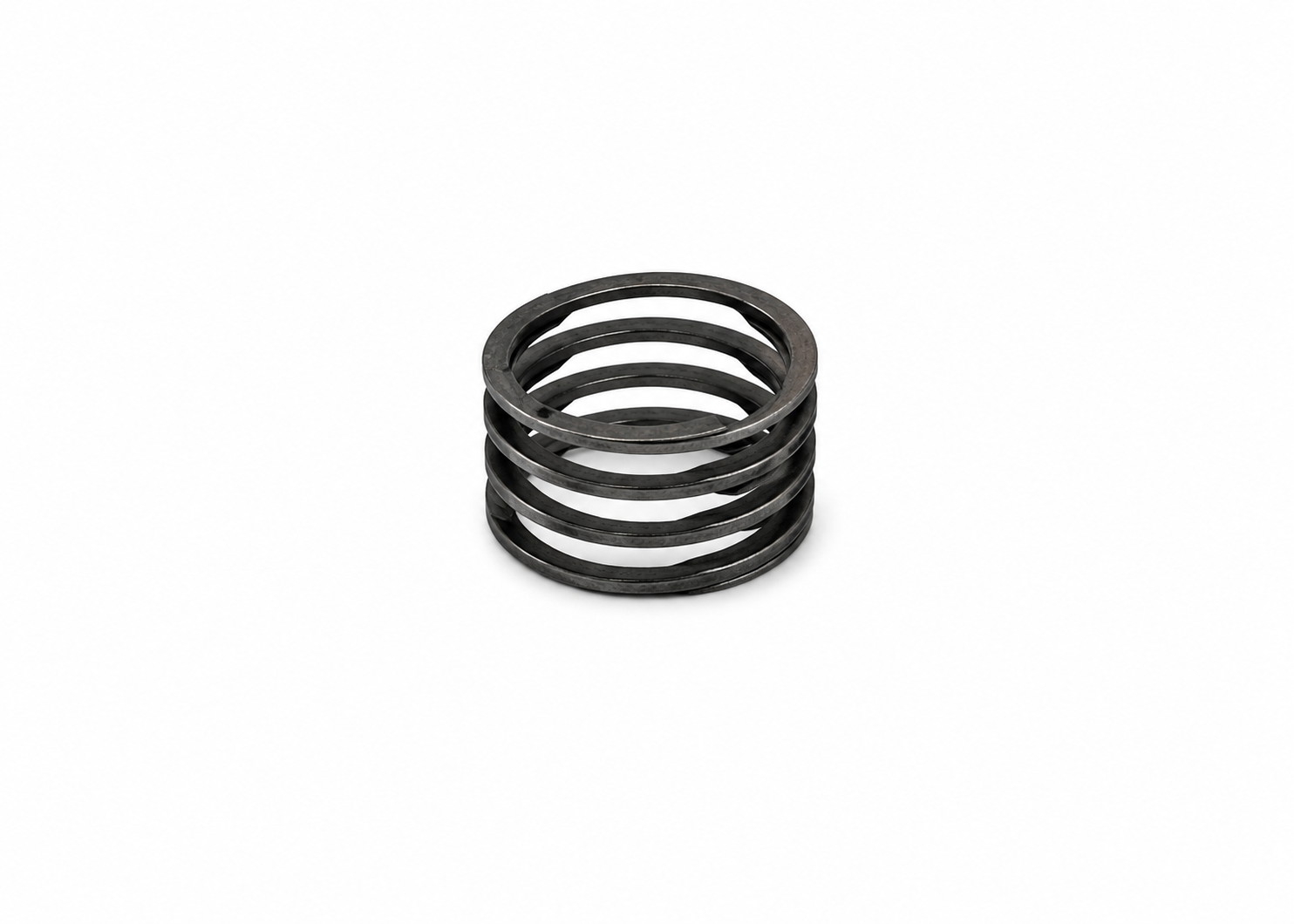

OEM Dacromet Multiwave Compression Springs Corrosion Resistance
OEM Dacromet Multiwave Compression Springs Corrosion Resistance
Specifications
Material :
Stainless Steel / Carbon Steel / Alloy Steel
Place of Origin :
China
Certification :
ISO14001；ISO13485；IATF16949
Model Number :
Wave Springs
Manufacturing Process :
CNC Forming / Automatic Stamping
Packaging Details :
Standard export packaging
Corrosion Resistance :
Standard / High Corrosion Resistance
Environment :
High Temperature / Corrosive / Vacuum
MOQ :
1 set
Precision Grade :
Standard / High Precision
Spring Type :
Wave Spring
Payment Terms :
L/C,T/T
Brand Name :
Liyu
Price :
Negotiation
Heat Treatment :
Stress Relieving / Heat Treatment
Description
Wave Springs·CUSTOMIZATION

Our stainless steel wave springs provide outstanding corrosion resistance, durability, and mechanical strength for demanding environments. Made from premium stainless steel materials, these springs maintain reliable performance under moisture, temperature changes, and harsh operating conditions. Stainless steel wave springs are widely used in medical equipment, aerospace components, s, marine systems, and industrial machinery. Customized sizes, materials, and specifications are available.

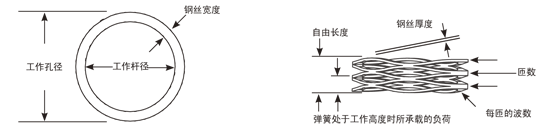

The parameters of the wave spring

OEM Dacromet Multiwave Compression Springs Corrosion Resistance

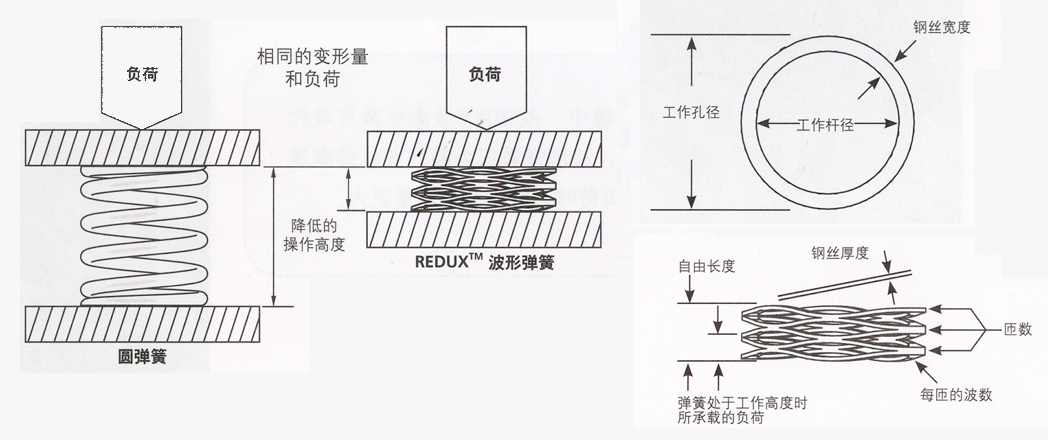

The advantages of wave springs

The uniqueness of the wave spring is that in terms of workload, the space occupied by the wave spring is relatively small. In fact, wave springs can reduce the size and weight of components by up to 50%. The wave spring is made of 17-7 stainless steel single-stranded filament, contains a continuous precision coil, and the diameter is consistent with the waveform. The diameter range is: 0.375 inches (9.52 mm) to 1.25 inches (31.75 mm) in order to meet the load requirements: 4 lbs (1.8 kg) to 30 lbs (13.6 kg).

OEM Dacromet Multiwave Compression Springs Corrosion Resistance


Specifications

  • The thickness range is 0.006 inches (0.15 mm) ~ 0.039 inches (1 mm)
  • The wire width is 0.024 inches (0.60 mm) ~ 0.230 inches (6.00 mm)
  • The outer diameter range is 0.25 inches (6.00 mm) ~ 5 inches (127.00 mm)
Characteristic Parameter

Structure

 Conventional (bottle loops at both ends closed)
Flat loops at both ends closed

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire

OEM Dacromet Multiwave Compression Springs Corrosion ResistanceOEM Dacromet Multiwave Compression Springs Corrosion Resistance
