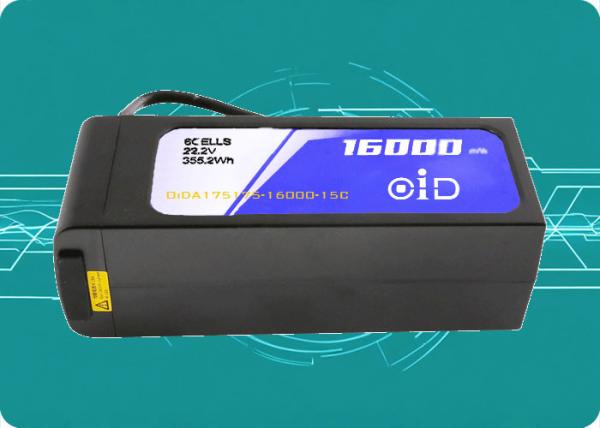

22.8V 16000mAh Lipo Drone Battery 100A Peak Discharge 300 Cycles
22.8V 16000mAh Lipo Drone Battery 100A Peak Discharge 300 Cycles
22.8V 16000mAh Lipo Drone Battery 100A Peak Discharge 300 Cycles
22.8V 16000mAh Lipo Drone Battery 100A Peak Discharge 300 Cycles
Specifications
Brand Name :
OiD
Model Number :
OiDA175175-1600-15C-22.8
Certification :
UL 2054 CE RoHS UN38.3
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
High Power Lipo Battery
Battery Type :
22.8V 16000mAh Rechargeable
ODM :
Free custom design for packs
Cycle Life :
300+ cycles
Charging/ Discharging :
10A/50A
Operating Temperature :
-20°C~60°C
Compatibility :
XT90-S (Discharge), JST-XHR-7P (Balance)
Weight/ size :
1780g/64×77.5×196mm
Description

OiDA175175-16000-15C-22.8 Drone Battery 22.8V 16000mAh 100A Peak Discharge 300 Cycles

Product Name

High-Performance 6S1P 22.8V 16000mAh Lithium Polymer Drone Battery

Advantages

  • Optimized for high-power drone applications with 15C discharge capability.
  • Lightweight design (1780g) for improved flight efficiency.
  • Extended cycle life for long-term reliability.

Specifications

No.

Item

Specification

1

Configuration

6S1P (6 Series, 1 Parallel)

2

Nominal Voltage

22.8V (Cell: 3.8V)

3

Nominal Capacity

16000mAh @ 0.2C Discharge

4

Minimum Capacity

15582mAh @ 0.2C Discharge

5

Open-Circuit Voltage

25.8V–26.1V (Cell: 4.30V–4.35V)

6

Max Charge Current

10A (0.4C) to 26.1V, CV until ≤0.02C

7

Max Continuous Discharge

50A (3.1C) to 19.2V

8

Peak Discharge Current

100A (6.2C, ≤3s)

9

Internal Impedance

≤9mΩ

10

Dimensions (T×W×H)

64×77.5×196mm (Max)

11

Weight

1780g (Approx.)

12

Terminals

XT90-S (Discharge), JST-XHR-7P (Balance)

Cycle Life

Test Condition

Performance

1. Charge: 5A to 26.1V, end current ≤0.02C

2. Rest: 10min

3. Discharge: 5A to 19.2V

≥300 cycles (80% capacity retention)

4. Rest: 30min

5. Repeat steps 1–4 until capacity <80%

Discharge Curve

  • 100A Discharge: ≥5.4 minutes to 19.2V after standard charge.
  • Low-Temp Performance: ≥75.1% capacity at -20°C (0.2C discharge).

Operating Temperature Range

Scenario

Temperature Range

Charging

10°C to 45°C

Discharging

-20°C to 60°C

Storage (Short-term)

-20°C to 35°C (≤7 days at >23.4V)

Storage (Long-term)

-20°C to 35°C (21.6V–23.4V, activate every 3 months)

Certifications

  • Complies with RoHS and UN38.3 safety standards.

Key Features

  • Ultra-Fast Charging: Fully charges in 1.5 hours (10A) or 3 hours (5A).
  • High-Temp Stability: 95% capacity recovery after 60°C storage.
  • Low Self-Discharge: ≤15% capacity loss after 28 days at 23°C.

Applications

  • Heavy-lift drones, industrial UAVs, and high-endurance aerial photography.
  • 22.8V 16000mAh Lipo Drone Battery 100A Peak Discharge 300 Cycles

Usage Warnings & Precautions

  • Charging: Use CC/CV chargers (max 26.1V). Reverse polarity prohibited.
  • Discharging: Avoid >100A currents or temperatures <-20°C/＞60°C.
  • Physical Handling: Protect aluminum casing from sharp objects.

Storage Guidelines

  • Short-term: Store at 22.5V–23.1V (20°C).
  • Long-term: Maintain 21.6V–23.4V; activate every 3 months (0.2C cycle).

Warranty & Disclaimer

  • Warranty void if modified or misused (overcharge, puncture, etc.).
  • Not liable for accidents caused by improper operation.
