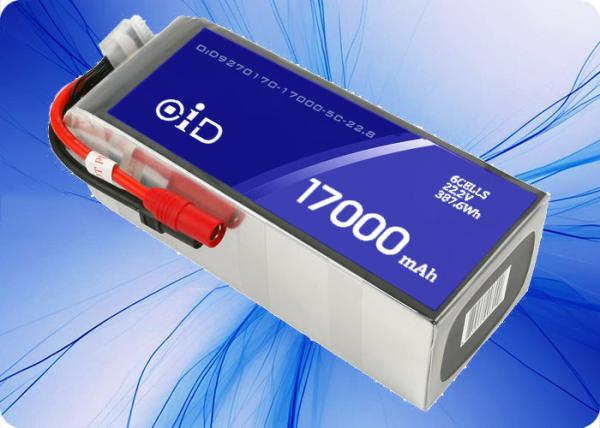

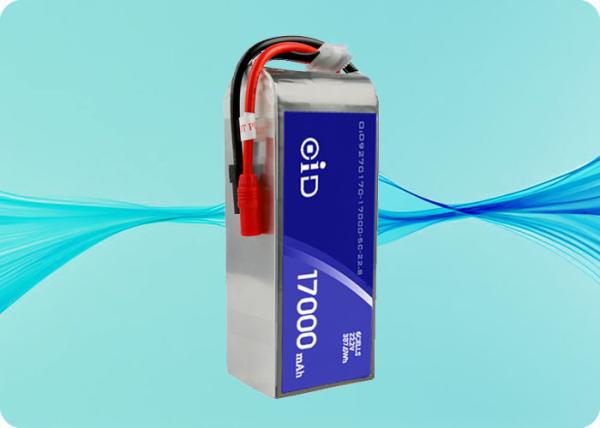

22.2V 17000mAh Drone Battery with 240 Cycles and 85A Peak Discharge
22.2V 17000mAh Drone Battery with 240 Cycles and 85A Peak Discharge
22.2V 17000mAh Drone Battery with 240 Cycles and 85A Peak Discharge
22.2V 17000mAh Drone Battery with 240 Cycles and 85A Peak Discharge
Specifications
Brand Name :
OiD
Model Number :
OiD9270170-17000-5C-22.2
Certification :
Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
Drone Battery
Battery Type :
22.2V 17000mAh Rechargeable
ODM :
Free custom design for packs
Cycle Life :
240+ cycles
Charging/ Discharging :
17A/51A
Operating Temperature :
-20°C~60°C
Compatibility :
XT90S-F (discharge), G-Tech-7P (charge)
Weight/ size :
1600g/186±5mm (L) x 71.5±1.5mm (W) x 55±2mm (H)
Description

OiD9270170-17000-5C-22.2 Drone Battery 22.2V 17000mAh 85A Peak Discharge 240 Cycles

Product Name

OiD9270170-17000-5C-22.2 Drone Battery

Advantages

  • High energy density for extended flight endurance
  • Optimized 5C discharge rate for stable power output
  • Lightweight design with robust cycle life

Specifications

Parameter

Value

Nominal Voltage

22.2V (6S1P)

Nominal Capacity

17000mAh (0.2C discharge)

Minimum Capacity

16600mAh

Internal Impedance

12±3.5mΩ (1kHz AC method)

Charging

Standard Charge Current

3.4A (0.2C)

Fast Charge Current

17A (1C)

Max Charge Voltage

25.2V

Discharging

Standard Discharge Current

3.4A (0.2C)

Max Continuous Discharge

51A (3C)

Peak Discharge Current

85A (5C, ≤3 seconds)

Discharge Cut-Off Voltage

17.1V (0.2C) / 18.0V (≥0.5C)

Dimensions

186±5mm (L) x 71.5±1.5mm (W) x 55±2mm (H)

Weight

1600±100g

Connectors

XT90S-F (discharge), G-Tech-7P (charge)

Cycle Life

Test Condition

Cycles

0.5C CC/CV charge to 25.2V, 51A discharge to 18.0V (Capacity ≥80% of initial)

240

Operating Temperature Range

Operation

Temperature Range

Current Limit

Charging

10°C to 45°C

≤17A (1C, 15°C–45°C)

Discharging

-20°C to 60°C

≤51A (15°C–45°C recommended)

Storage

-20°C to 35°C

N/A

Certifications

Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).

Key Features

  • Fast Charging: Supports 1C charging (1.5 hours).
  • High Efficiency: ≥98% discharge efficiency at 20°C.
  • Durable: Aluminum foil packaging with impact-resistant design.

Applications

  • Commercial drones
  • Aerial photography platforms
  • Industrial inspection UAVs
  • 22.2V 17000mAh Drone Battery with 240 Cycles and 85A Peak Discharge

Usage Warnings & Precautions

  • Voltage Limits: Do not exceed 25.2V (charge) or discharge below 17.1V (0.2C).
  • Temperature: Avoid charging below 10°C or discharging above 60°C.
  • Safety: Never disassemble or expose to water/fire.

Storage Guidelines

  • Short-term: Store at 22.5–23.4V (25±3°C, ≤75% RH).
  • Long-term: Maintain 22.5–23.4V; activate every 3 months (0.2C cycle).

Warranty & Disclaimer

  • 12-month warranty from shipment date.
  • Void if misused or stored improperly.
