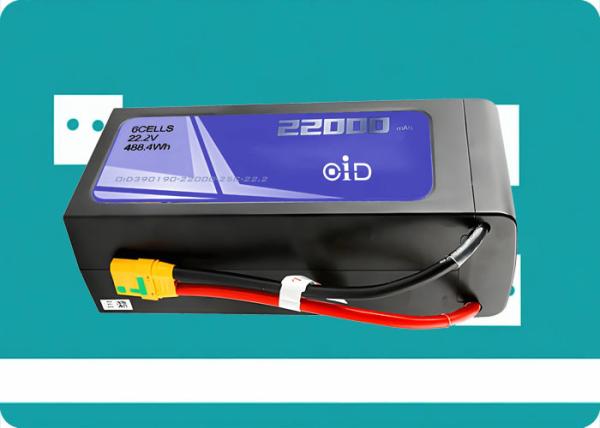

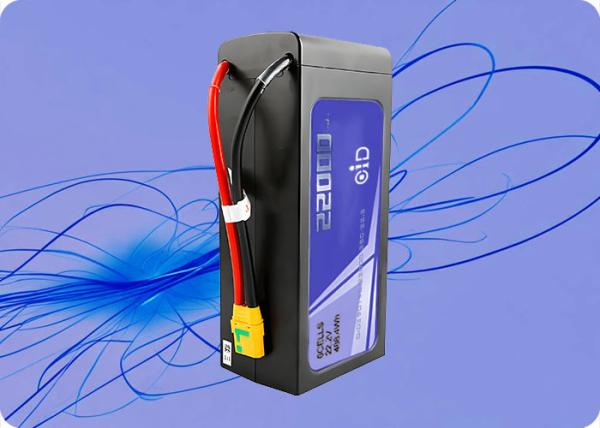

22.2V 22000mAh Drone Battery with 90A Peak Discharge
22.2V 22000mAh Drone Battery with 90A Peak Discharge
22.2V 22000mAh Drone Battery with 90A Peak Discharge
22.2V 22000mAh Drone Battery with 90A Peak Discharge
Specifications
Brand Name :
OiD
Model Number :
OiD390190-22000-25C-22.2
Certification :
Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
Drone Battery
Battery Type :
22.2V 22000mAh Rechargeable
ODM :
Free custom design for packs
Charging/ Discharging :
11A/60A
Operating Temperature :
-20°C~60°C
Cycle Life :
300+ cycles
Compatibility :
XT90S-F (discharge), JST-XHR-7P (charge)
Weight/ size :
2600g/208 x 91.5 x 61.5mm
Description

OiD390190-22000-25C-22.2 Drone Battery 22.2V 22000mAh 90A Peak Discharge 150 Cycles

Product Name

OiD390190-22000-25C-22.2 Drone Battery

Advantages

  • Ultra-high capacity for extended flight endurance
  • High-rate 25C discharge for demanding applications
  • Optimized thermal stability for reliable performance

Specifications

Parameter

Value

Nominal Voltage

22.2V (6S1P)

Nominal Capacity

22000mAh (0.2C discharge)

Minimum Capacity

21000mAh

Internal Impedance

5.6±1.6mΩ (1kHz AC method)

Charging

Standard Charge Current

4.4A (0.2C)

Fast Charge Current

11A (0.5C)

Max Charge Voltage

25.2V

Discharging

Standard Discharge Current

4.4A (0.2C)

Max Continuous Discharge

60A

Peak Discharge Current

90A (≤3 seconds)

Discharge Cut-Off Voltage

18.0V (0.2C) / 21.0V (≥0.5C)

Dimensions

208±5mm (L) x 91.5±1.5mm (W) x 61.5±2.5mm (H)

Weight

2600±100g

Connectors

XT90S-F (discharge), JST-XHR-7P (charge)

Cycle Life

Test Condition

Cycles

0.5C CC/CV charge to 25.2V, 60A discharge to 21.0V (Capacity ≥80% of initial)

150

Operating Temperature Range

Operation

Temperature Range

Current Limit

Charging

10°C to 45°C

≤11A (0.5C, 15°C–45°C)

Discharging

-20°C to 60°C

≤60A (15°C–45°C recommended)

Storage

-20°C to 35°C

N/A

Certifications

Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).

Key Features

  • Fast Charging: Supports 0.5C charging (3 hours).
  • High Efficiency: ≥98% discharge efficiency at 20°C.
  • Durable Design: Aluminum foil packaging with impact resistance.

Applications

  • Heavy-lift industrial drones
  • Long-range aerial mapping
  • High-power FPV racing drones
  • 22.2V 22000mAh Drone Battery with 90A Peak Discharge

Usage Warnings & Precautions

  • Voltage Limits: Do not exceed 25.2V (charge) or discharge below 18.0V (0.2C).
  • Temperature: Avoid charging below 10°C or discharging above 60°C.
  • Safety: Never disassemble or expose to water/fire.

Storage Guidelines

  • Short-term: Store at 22.5–23.4V (25±3°C, ≤75% RH).
  • Long-term: Maintain 22.5–23.4V; activate every 3 months (0.2C cycle).

Warranty & Disclaimer

  • 12-month warranty from shipment date.
  • Void if misused or stored improperly.
