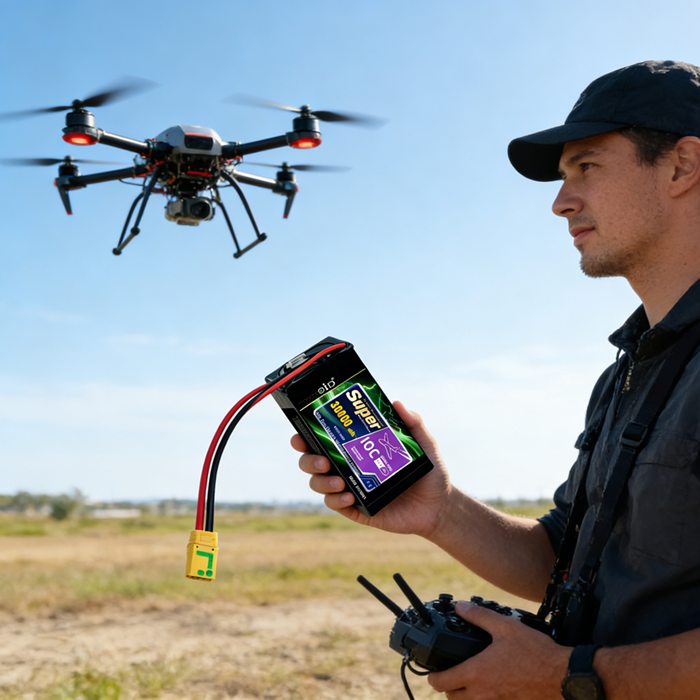

30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
Specifications
Brand Name :
OiD
Model Number :
OID9590190SS-5C-22.2V
Certification :
UN38.3, MSDS
Place of Origin :
China
MOQ :
1pcs
Price :
$0.5 ~ $200.0 / pcs
Payment Terms :
TT,L/C,Western Union
Supply Ability :
1000000
Delivery Time :
3 ~ 30 days for storage
Packaging Details :
Carton
Name :
Drone Lipo Battery
ODM :
Free custom design for packs
Capacity :
30000mAh
Battery Type :
22.2V 30000mAh Rechargeable
Cycle Life :
300+ cycles
Charging/ Discharging :
30A/300A
Operating Temperature :
-10°C to +60°C
Compatibility :
XT90/XH2.54-7P connector
Weight/ size :
2016g/206 × 95.5 × 77 mm
Description
30Ah 22.2V Semi Solid State Drone Battery Pack with 300A High Discharge for UAV Applications
22.2V 30Ah Semi Solid State Drone Battery Pack - High Power UAV Battery
The OID30000SS-6S-22.2V semi solid state drone battery pack is a high-energy lithium-ion battery designed for demanding UAV and drone applications. Featuring 320Wh/kg energy density, 150A continuous discharge, and 300A burst output, the battery delivers reliable power for professional drones requiring long flight time and high peak current. Manufactured by Shenzhen Jianheng Technology Co., Ltd, the battery combines semi-solid-state lithium technology, high safety standards, and rigorous performance testing.

Key Features
High Energy Density
Approx. 320 Wh/kg energy density significantly increases drone flight endurance compared with conventional lithium batteries.
High Discharge Capability
Supports 5C continuous discharge (150A) and 10C burst discharge (300A) for high-power drone motors and rapid load changes.
Semi Solid State Lithium Technology
Semi-solid electrolyte structure improves thermal stability, safety performance, and energy density.
Reliable Safety Design
Passed comprehensive safety tests including:
  • Short circuit test
  • Overcharge test
  • Forced discharge test
  • Drop test
  • Vibration test
  • High temperature and humidity test
Stable Long-Term Performance
Cycle life reaches ≥ 300 cycles with ≥80% capacity retention under standard test conditions.

Technical Specifications
Product Model OID9590190SS-5C-22.2V
Battery Type Semi Solid State Lithium-Ion
Nominal Voltage 22.2V
Nominal Capacity 30000mAh
Typical Capacity 30200mAh
Minimum Capacity 29700mAh
Energy Density ~320 Wh/kg
Configuration 6 Cells in Series (6S)
Charge Cut-off Voltage 25.2V
Discharge Cut-off Voltage 15.0V
Standard Charge Current 15A (0.5C)
Maximum Charge Current 30A (1C)
Standard Discharge Current 15A (0.5C)
Maximum Continuous Discharge 150A (5C)
Maximum Burst Discharge 300A (10C ≤2s)
Internal Resistance ≤8.5 mΩ
Dimensions Max 77 × 95.5 × 206 mm
Weight 2016 g ±2.5%
Operating Temperature Charge 10°C~45°C / Discharge -10°C~60°C

Battery Performance
Discharge Performance
The battery maintains excellent capacity retention under high-rate discharge.
Condition Capacity Retention
5C Discharge ≥90%
-10°C ≥60%
25°C ≥100%
60°C ≥95%
Cycle Life
Test Condition:
  • 1C charge
  • 3C discharge
  • 30 min rest between cycles
Result: ≥ 300 cycles with ≥80% remaining capacity

Testing Methods
All tests follow controlled laboratory conditions:
  • Temperature: 23 ±2°C
  • Humidity: 45 -65% RH
  • Pressure: 86 -106 kPa
Testing equipment includes:
  • AC impedance tester (1kHz LCR method)
  • Precision battery test system
  • High-accuracy multimeter
  • Temperature measurement instruments
Standard Charge
0.5C constant current -constant voltage (CC-CV) charging to 25.2V, cut-off current 0.02C.
Standard Discharge
0.5C constant current discharge to 15.0V.

Safety Performance Tests
The drone battery pack passes the following safety validation tests:
Test Result
Short Circuit Test No fire, no explosion
Overcharge Test No fire, no explosion
Forced Discharge Test No fire, no explosion
Drop Test (1m) No fire, no explosion
Vibration Test No leakage, no fire
High Temperature & Humidity Capacity ≥80%
These tests ensure stable and safe operation for UAV systems.

Storage and Transportation
Recommended storage conditions:
Storage Temperature ≤1 month: -20~45°C
≤3 months: -20~30°C
≤1 year: 25±3°C
Humidity ≤75% RH
Storage SOC 21.6V - 23.1V
For long-term storage, recharge every 3 months.

Safety Guidelines
For safe operation:
  • Use only specified chargers
  • Do not short circuit terminals
  • Do not expose to fire or high temperature
  • Do not disassemble the battery pack
  • Do not immerse in water
  • Stop use immediately if overheating, odor, deformation, or discoloration occurs
If battery voltage drops below 15.0V, the pack must be scrapped to avoid safety risks.

Applications
This semi solid state drone battery pack is suitable for:
  • Industrial UAVs
  • Agricultural drones
  • Surveying drones
  • Logistics drones
  • Long endurance UAV platforms

Manufacturer
Shenzhen Jianheng Technology Co., Ltd
Professional manufacturer of lithium battery cells and customized battery packs, providing high-performance energy solutions for UAV, robotics, and industrial applications.
