7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna

1. Specification

A. Electrical Characteristics
Frequency 7700-8300MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 8dBi
Efficiency ≈65%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 11±2°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N-J
Dimension Φ16*250mm
Weight 0.07Kg
Radome material Fiberglass (white)
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

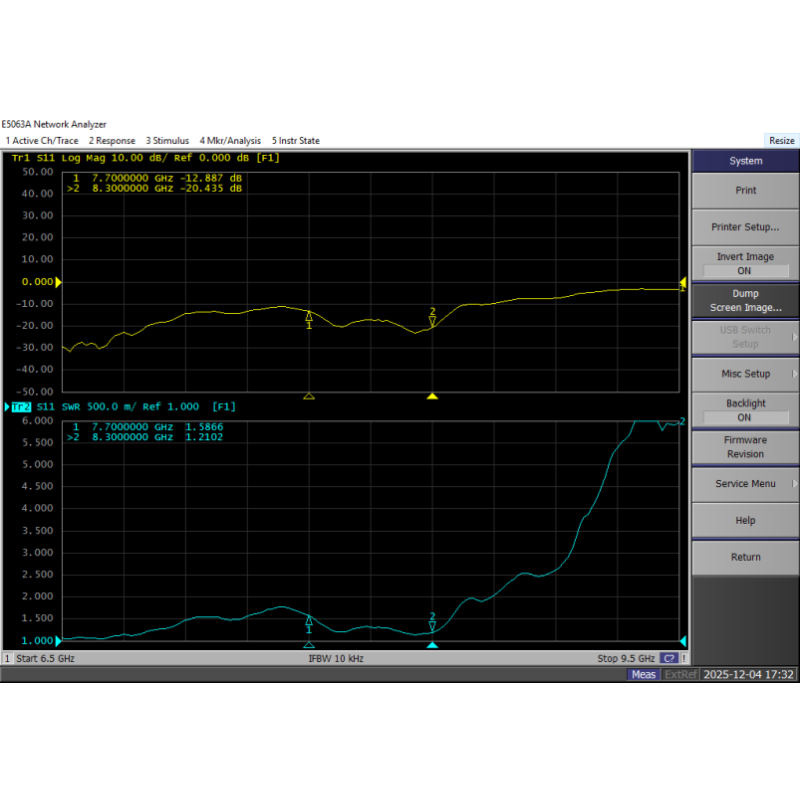

UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

7700

6.6

58.0

7750

7.1

63.2

7800

6.2

50.9

7850

7.2

62.4

7900

6.5

55.5

7950

7.3

65.5

8000

7.1

64.0

8050

8.1

74.6

8100

7.7

66.7

8150

8.2

73.5

8200

7.7

64.5

8250

8.0

71.4

8300

7.7

67.5





2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
7700MHz UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm
8000MHz UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm
8300MHz UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm UWB 7700-8300M omnidirectional 8dbi outdoor waterproof fiberglass reinforced plastic antenna 5G6G high-frequency antenna 16x250mm
