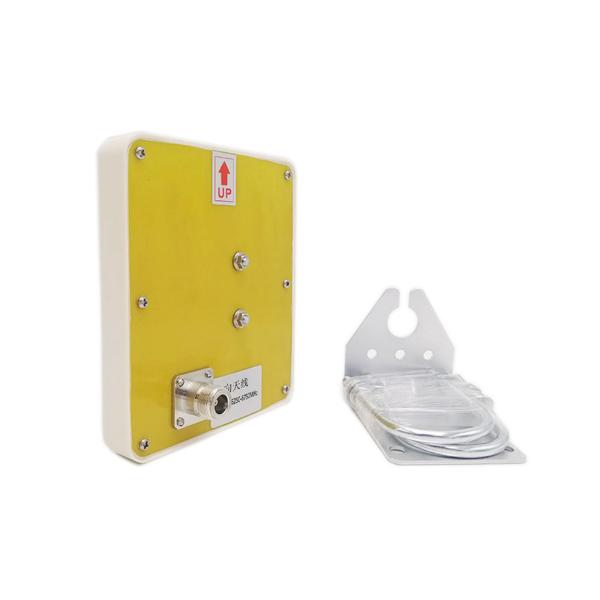

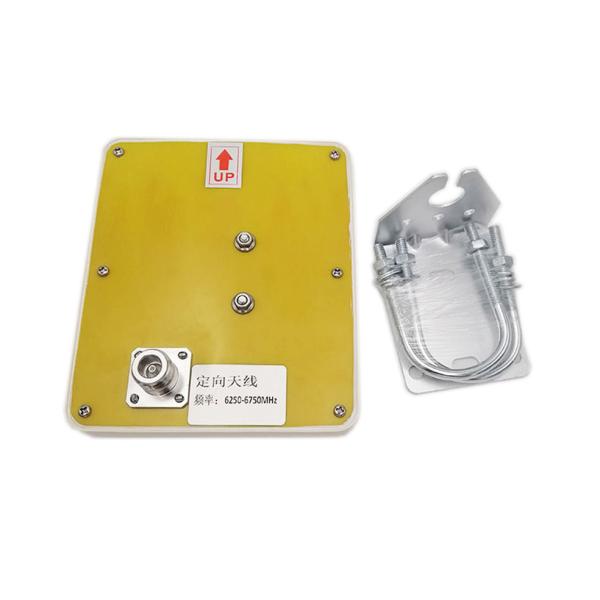

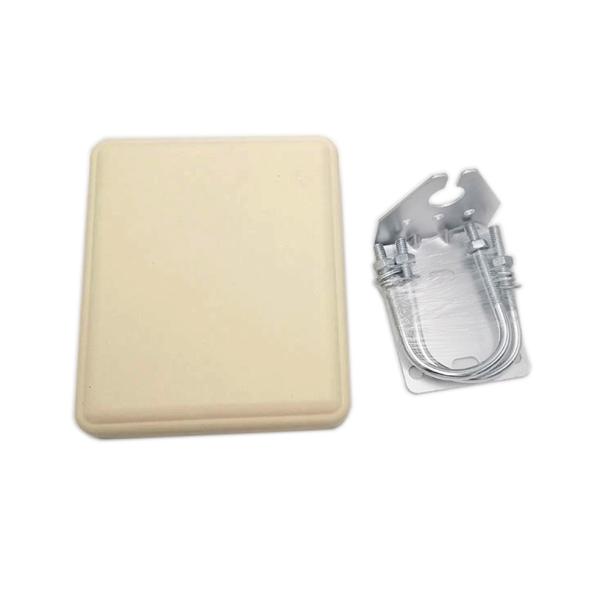

External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10560-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
6250-6750MHz
VSWR :
<2.0
Peak Gain :
13dBi
Impedance :
50
Description

Outdoor Waterproof Directional Antenna Flat Panel antenna 6250-6750MHz UWB Antenna 13 dBi N connector 140x120x25

1. Specification

A. Electrical Characteristics
Frequency 6250-6750MHz
S.W.R. <= 1.8
Antenna Gain 13dBi
Polarization Vertical
Horizontal Beamwidth 29-35°
Vertical Beamwidth 23-29°
F/B >23dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 140*120*25mm
Radome material ABS
Weight 0.45Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
6250 13.3
6300 13.5
6350 12.9
6400 13.0
6450 12.7
6500 13.1
6550 12.4
6600 12.3
6650 12.9
6700 12.8
6750 12.4
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
6250MHz External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
6500MHz External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
6750MHz External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm External Directional Uwb Antenna For Medical Applications 6250-6750MHz 13dBi N Connector 140x120x25mm
