Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10419-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
3700-4200MHz
VSWR :
<2.0
Peak Gain :
18dBi
Impedance :
50
Description

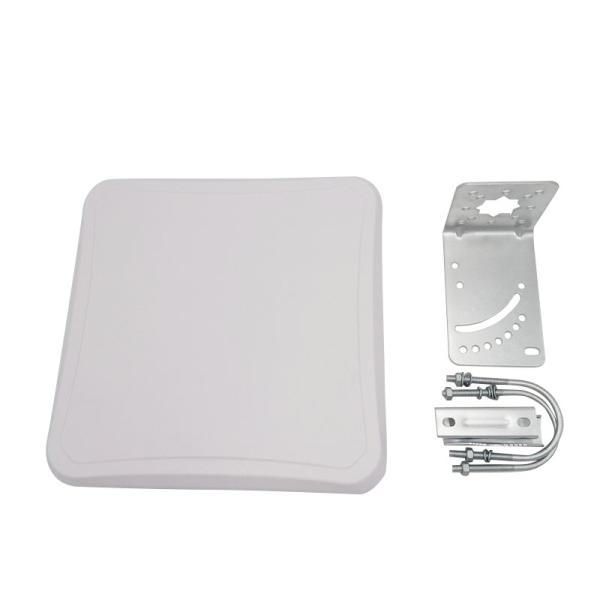

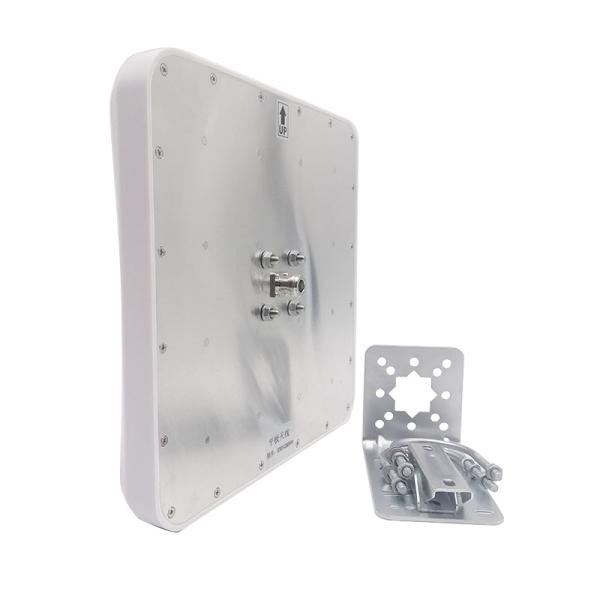

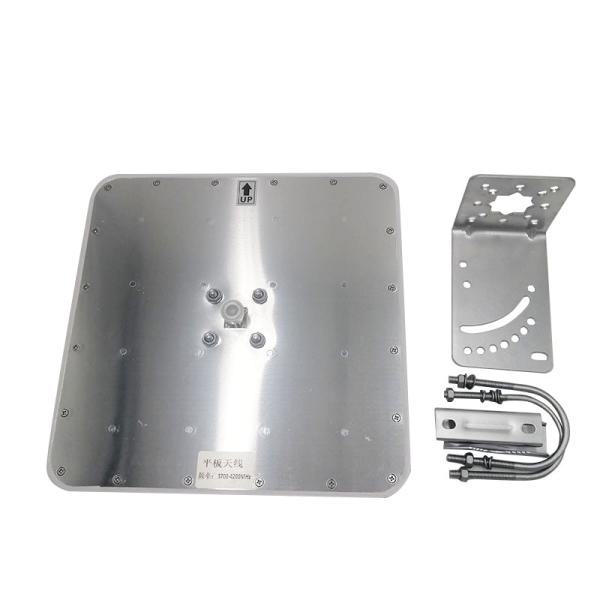

UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 18 dBi N connector 260x260x35

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 18dBi
Polarization Vertical
Horizontal Beamwidth 17-19°
Vertical Beamwidth 15-19°
F/B >31dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 260*260*35mm
Radome material ABS
Weight 0.97Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
3700 17.076
3750 17.297
3800 17.646
3850 17.63
3900 18.095
3950 18.289
4000 18.696
4050 18.517
4100 18.773
4150 18.804
4200 18.979
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
3950MHz Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
4200MHz Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
