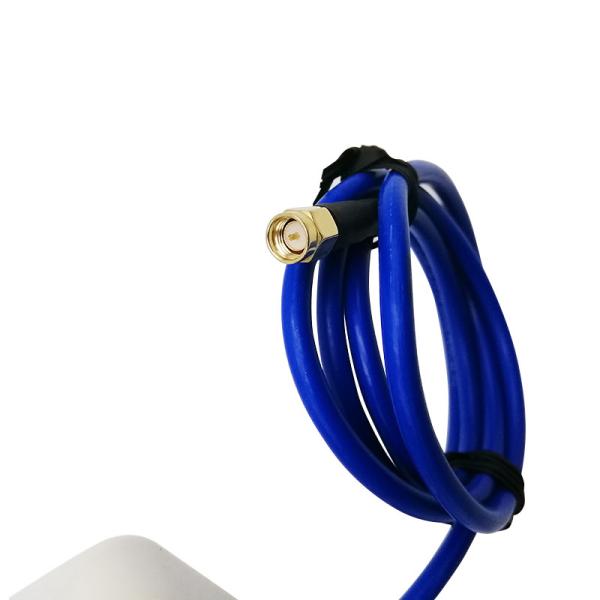

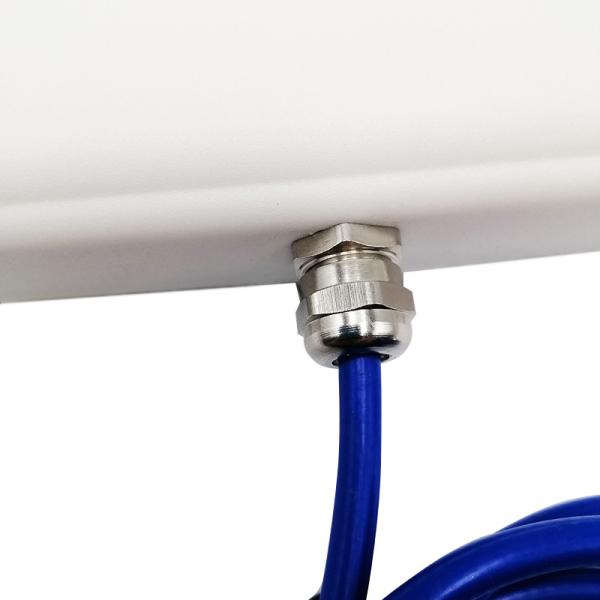

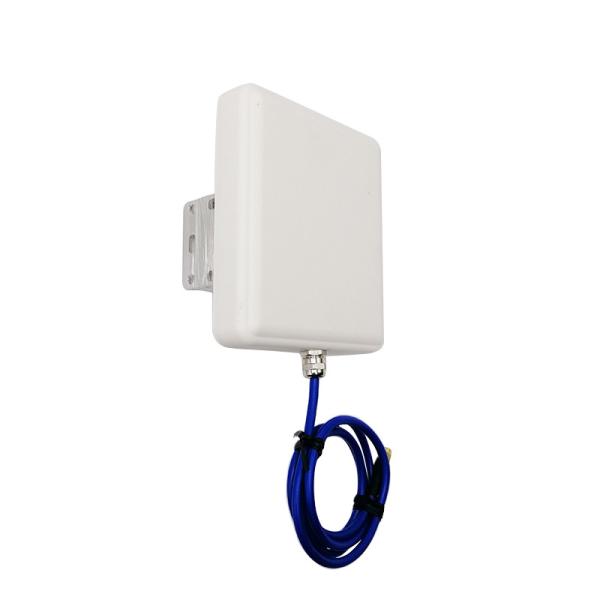

UWB Antenna Outdoor Panel antenna 3700-4200MHz 11 dBi with RG58 cable 140x120x25

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 1.8
Antenna Gain 11dBi
Polarization Vertical
Horizontal Beamwidth 36-40°
Vertical Beamwidth 31-44°
F/B >21dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type Mine Cable, length 1 meter
Connector Type SMA connector
Dimension 140*120*25mm
Radome material ABS
Weight 0.475Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm



2.2 Total Efficiency & Gain:

Frequency (MHz) 3700.0 3750.0 3800.0 3850.0 3900.0 3950.0 4000.0 4050.0 4100.0 4150.0 4200.0
Gain (dBi) 10.202 10.324 10.2 10.701 10.989 11.335 11.454 11.097 11.166 11.397 11.274
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm
3950MHz Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm
4200MHz Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm
