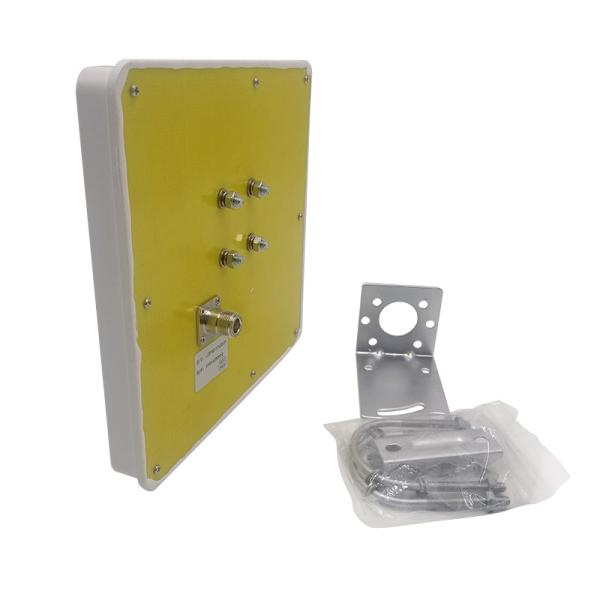

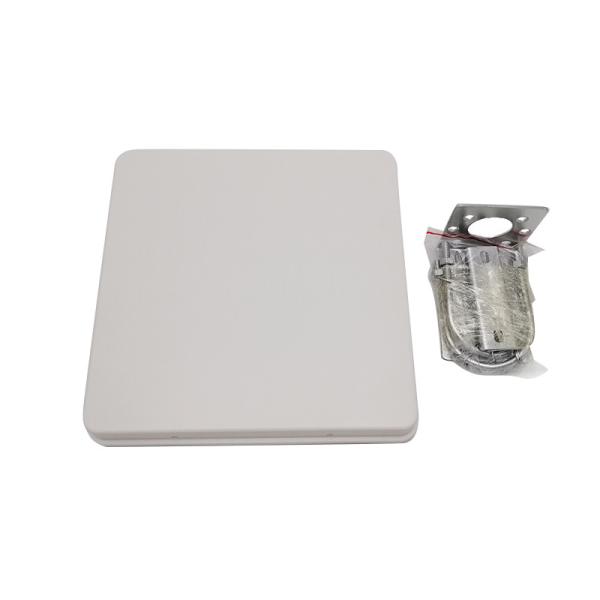

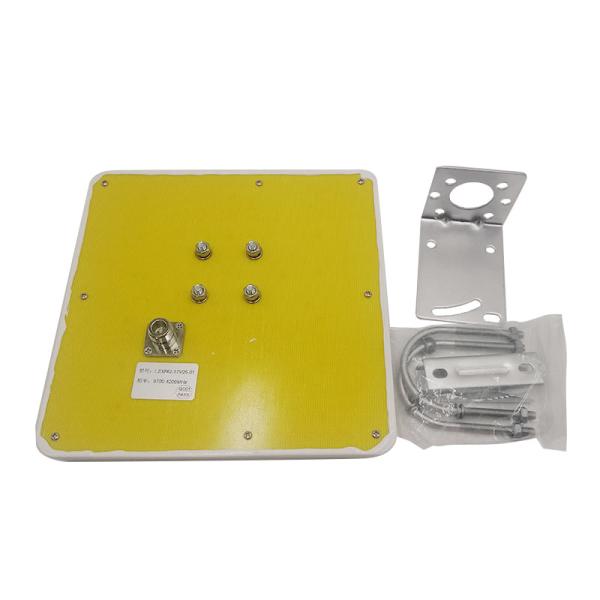

Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10543-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
3700-4200MHz
VSWR :
<2.0
Peak Gain :
18dBi
Impedance :
50
Description

UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 17 dBi N connector 220x220x25

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 17dBi
Polarization Vertical
Horizontal Beamwidth 13-15°
Vertical Beamwidth 23-25°
F/B >24dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 220*220*25mm
Radome material ABS
Weight 1.09Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
3700 16.87
3750 16.81
3800 17.08
3850 17.05
3900 17.16
3950 16.87
4000 16.73
4050 17.16
4100 17.17
4150 16.74
4200 16.42
2.3 Radiation Pattern

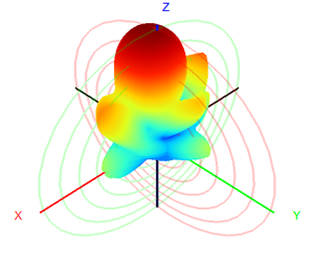

3D 2D-Horizontal 2D-Vertical
3700MHz Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
3950MHz Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
4200MHz Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
