Specifications
Brand Name :
Leenz
Model Number :
LZANT-11533-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
6250-6750MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

UWB Channel 5 6250-6750M omnidirectional small mushroom head ceiling-mounted antenna

1. Specification

A. Electrical Characteristics
Frequency 6250-6750MHz
S.W.R. <= 1.8
Antenna Gain 3dBi
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 42-56°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension φ86*40mm
Radome material ABS
Weight 0.09Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data

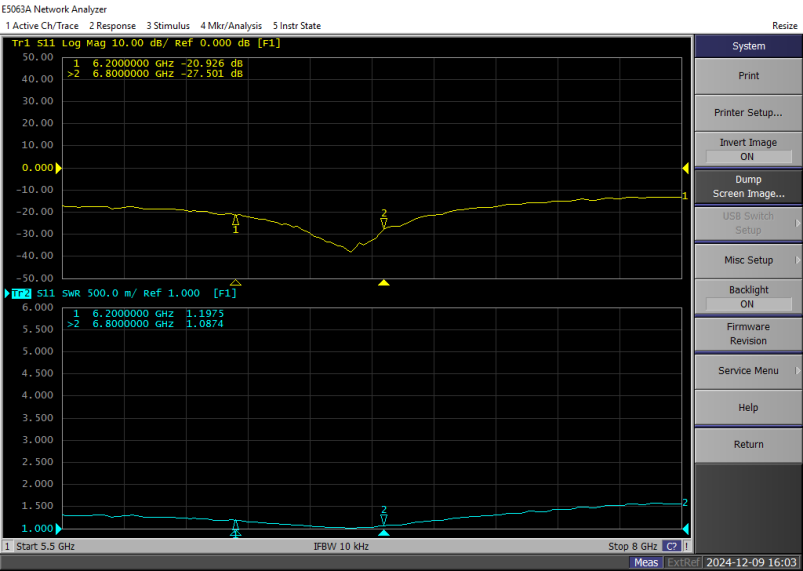

2.1 VSWR

UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna

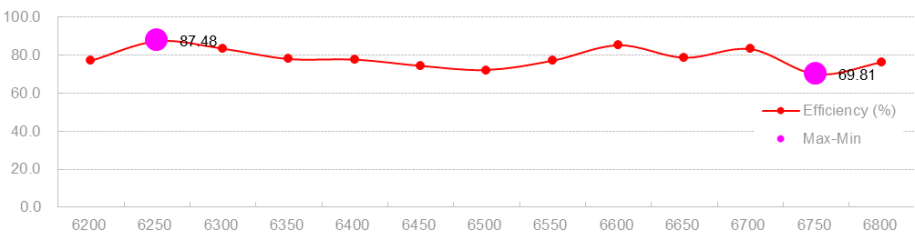

2.2 Total Efficiency & Gain:


Frequency(MHz)

6200

6250

6300

6350

6400

6450

6500

6550

6600

6650

6700

6750

6800

Gain (dBi)

3.6

4.0

3.8

3.6

3.6

3.3

3.1

3.3

4.0

3.8

3.9

3.1

3.5

Efficiency (%)

77.1

87.5

83.5

77.9

77.7

74.3

72.1

77.1

85.3

78.7

83.3

69.8

76.3
UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna




2.3 Radiation Pattern

Port1 3D 2D-Horizontal 2D- Vertical
6250MHz UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
6500MHz UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
6750MHz UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
