Specifications
Brand Name :
Leenz
Model Number :
LZANT-11534-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
7700-8300MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

UWB Channel 2 6250-6750M omnidirectional small mushroom head ceiling-mounted antenna

1. Specification

A. Electrical Characteristics
Frequency 7700-8300MHz
S.W.R. <= 2.0
Antenna Gain 3dBi
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 46-60°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension φ86*40mm
Radome material ABS
Weight 0.08Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data

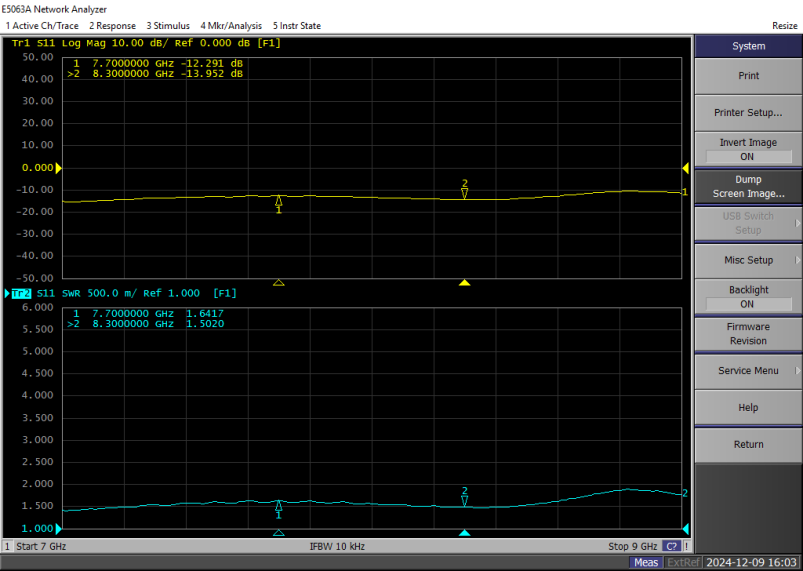

2.1 VSWR

UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna

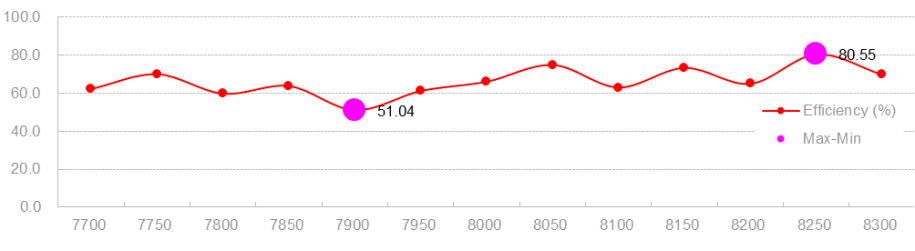

2.2 Total Efficiency & Gain:


Frequency(MHz)

7700

7750

7800

7850

7900

7950

8000

8050

8100

8150

8200

8250

8300

Gain (dBi)

2.4

2.7

2.1

2.5

1.6

2.5

3.4

3.9

2.9

3.9

3.5

4.3

3.4

Efficiency (%)

62.2

70.1

59.7

63.8

51.0

61.2

66.1

75.0

63.1

73.4

65.0

80.5

69.8
UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna




2.3 Radiation Pattern

Port1 3D 2D-Horizontal 2D- Vertical
77000MHz UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna
8000MHz UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna
8300MHz UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna
