Specifications
Brand Name :
Leenz
Model Number :
LZANT-10038-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
3700-4200MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50
Description

UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 2.0
Antenna Gain3 5dBi
Efficiency ≈72%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 30±5°
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension φ13*195mm
Color Black
Weight 0.025Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

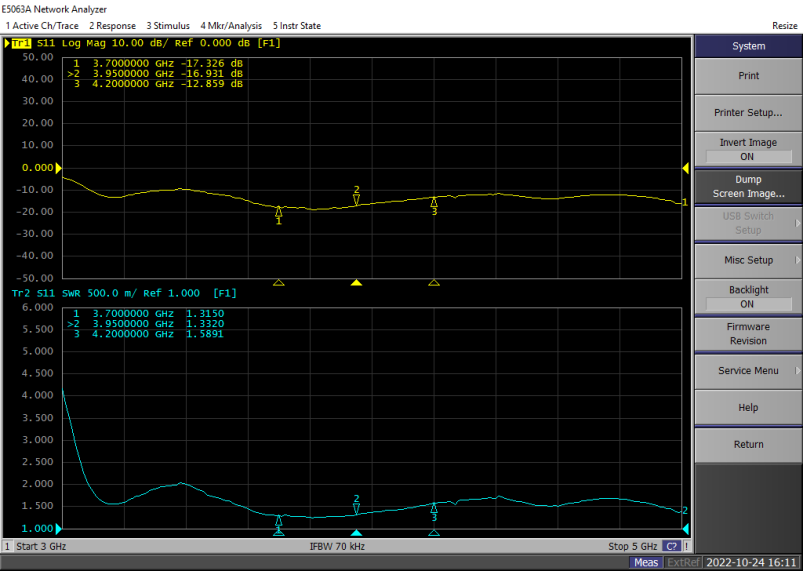

2.1 VSWR
UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm

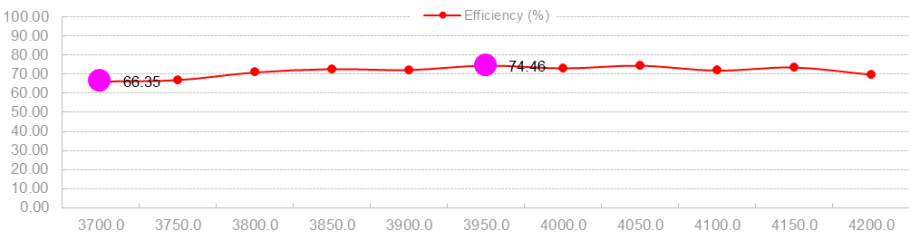

2.2 Total Efficiency & Gain

Frequency (MHz)

3700.0

3750.0

3800.0

3850.0

3900.0

3950.0

4000.0

4050.0

4100.0

4150.0

4200.0

Gain (dBi)

4.44

4.35

4.24

3.95

3.87

4.14

4.14

4.20

4.02

4.01

4.09

Efficiency (%)

66.35

67.09

71.00

72.65

72.21

74.46

73.03

74.40

71.91

73.49

69.84
UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
3700MHz UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm
3950MHz UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm
4200MHz UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm UWB 3.7-4.2G 3700-4200MHz 5dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 195mm
