UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 2.0
Antenna Gain3 6dBi
Efficiency ≈82%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 25±2°
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension φ21*200mm
Color Black
Weight 0.025Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

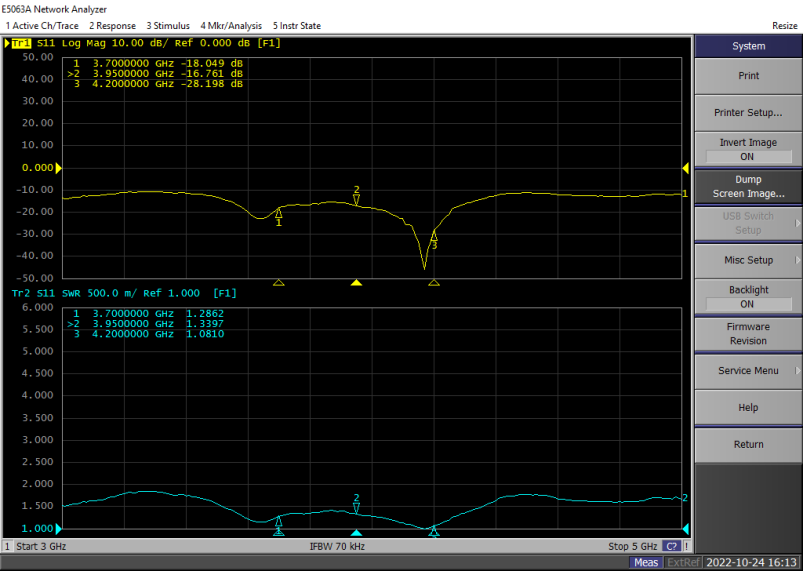

2.1 VSWR
UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm

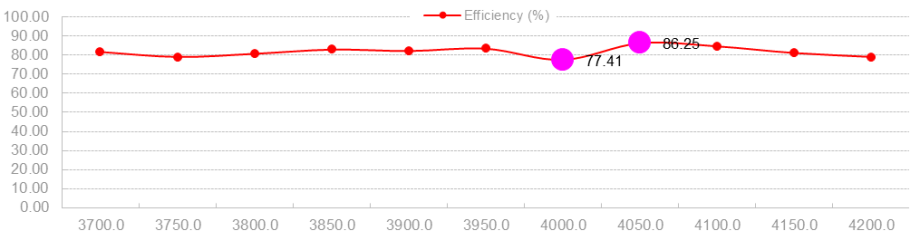

2.2 Total Efficiency & Gain

Frequency (MHz)

3700.0

3750.0

3800.0

3850.0

3900.0

3950.0

4000.0

4050.0

4100.0

4150.0

4200.0

Gain (dBi)

5.93

6.08

6.04

6.08

6.03

6.17

6.01

6.63

6.64

6.41

6.33

Efficiency (%)

81.58

78.95

80.61

82.82

82.09

83.29

77.41

86.25

84.54

81.06

78.98
UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
3700MHz UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm
3950MHz UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm
4200MHz UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm
