UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10316-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
3700-4200MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 2.0
Antenna Gain3 dBi
Efficiency ≈80%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 55±5°
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension φ10*109mm
Color Black
Weight 0.01Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

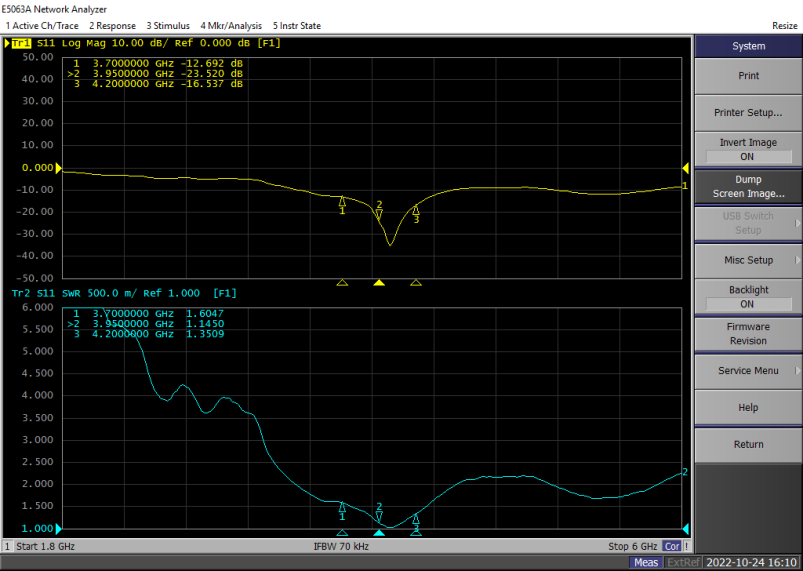

2.1 VSWR
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm

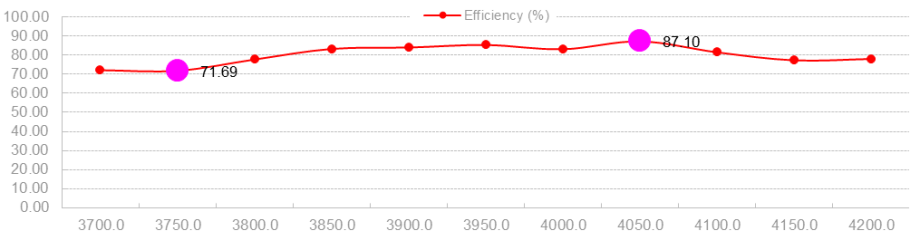

2.2 Total Efficiency & Gain

Frequency (MHz)

3700.0

3750.0

3800.0

3850.0

3900.0

3950.0

4000.0

4050.0

4100.0

4150.0

4200.0

Gain (dBi)

2.26

2.10

2.25

2.42

2.40

2.34

2.27

2.49

2.45

2.29

2.23

Efficiency (%)

72.01

71.69

77.63

83.16

83.89

85.21

82.99

87.10

81.39

77.18

77.89
UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
3700MHz UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
3950MHz UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
4200MHz UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm UWB 3.7-4.2G 3700-4200MHz 3dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 109mm
