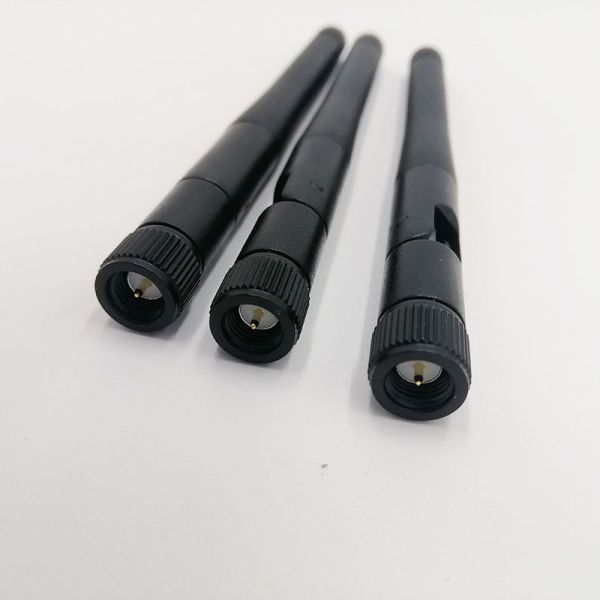

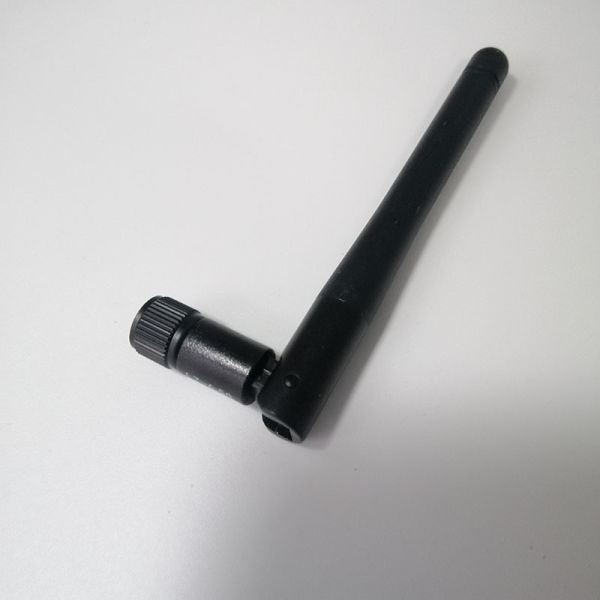

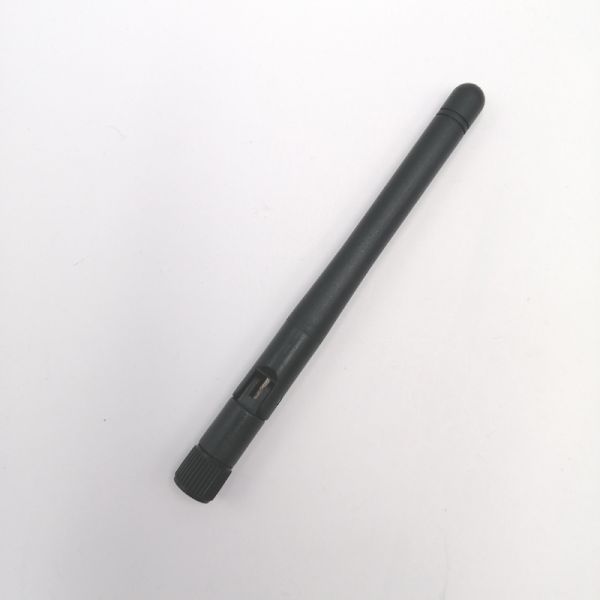

UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm

1. Specification

A. Electrical Characteristics
Frequency 7500-8500MHz
S.W.R. <= 2.0
Antenna Gain6 4dBi
Efficiency ≈70%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 40±5°
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension φ10*109mm
Color ABS Black
Weight 0.01Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

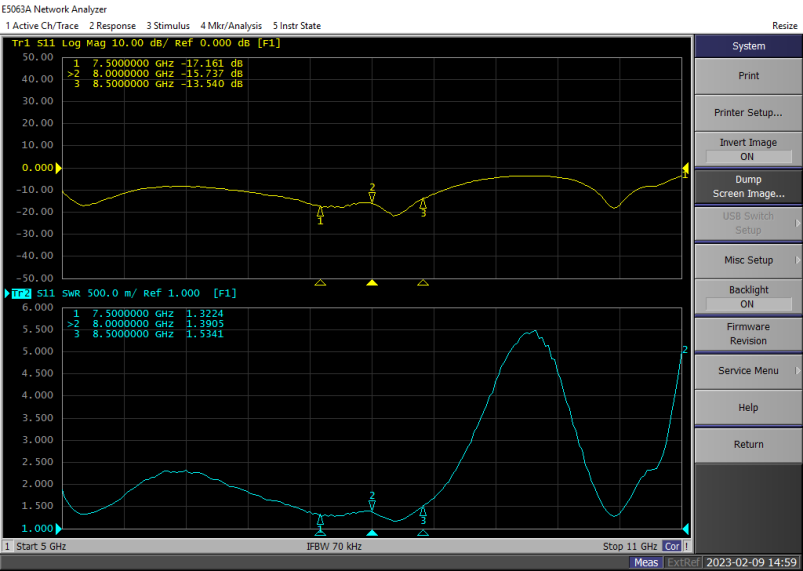

2.1 VSWR
UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm

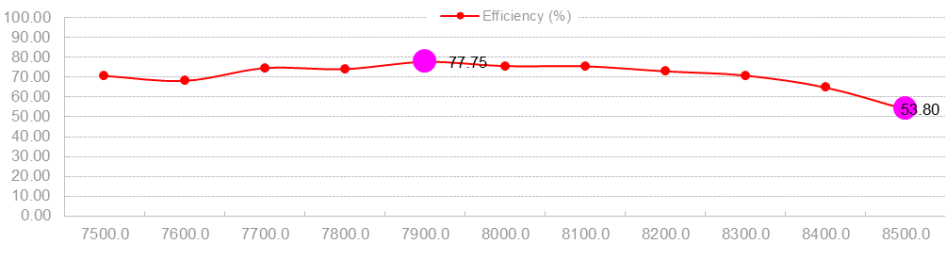

2.2 Total Efficiency & Gain


Frequency (MHz)

7500.0

7600.0

7700.0

7800.0

7900.0

8000.0

8100.0

8200.0

8300.0

8400.0

8500.0

Gain (dBi)

3.08

2.80

3.36

3.28

3.60

3.02

2.81

2.19

3.20

3.36

3.21

Efficiency (%)

70.69

68.21

74.59

74.07

77.75

75.59

75.49

72.98

70.84

64.82

53.80
UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
7500MHz UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm
8000MHz UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm
8500MHz UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm
