Specifications
Brand Name :
Leenz
Model Number :
LZANT-10760-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
3700-4200MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description


1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 3dBi
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 50-60°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension φ86*40mm
Radome material ABS
Weight 0.09Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data

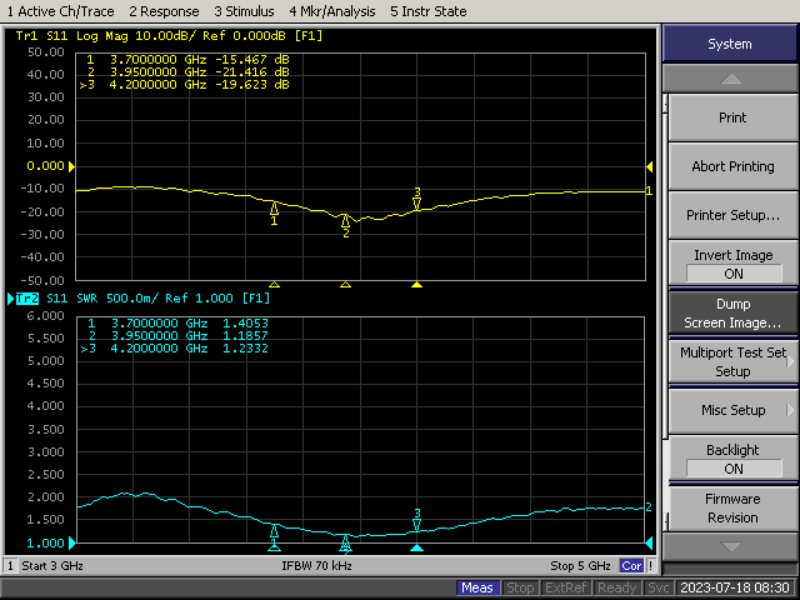

2.1 VSWR

UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna

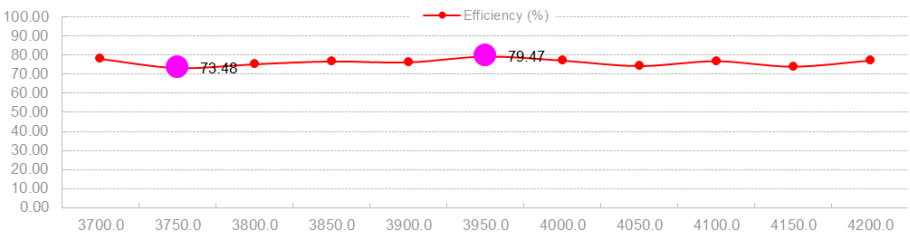

2.2 Total Efficiency & Gain:


Frequency(MHz)

3700.0

3750.0

3800.0

3850.0

3900.0

3950.0

4000.0

4050.0

4100.0

4150.0

4200.0

Gain (dBi)

2.68

2.40

2.42

2.48

2.56

2.80

2.76

2.62

2.92

2.80

3.14

Efficiency (%)

78.22

73.48

75.45

76.93

76.43

79.47

77.36

74.52

77.05

74.20

77.39
UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna




2.3 Radiation Pattern

Port1 3D 2D-Horizontal 2D- Vertical
3700MHz UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
3950MHz UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
4200MHz UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
