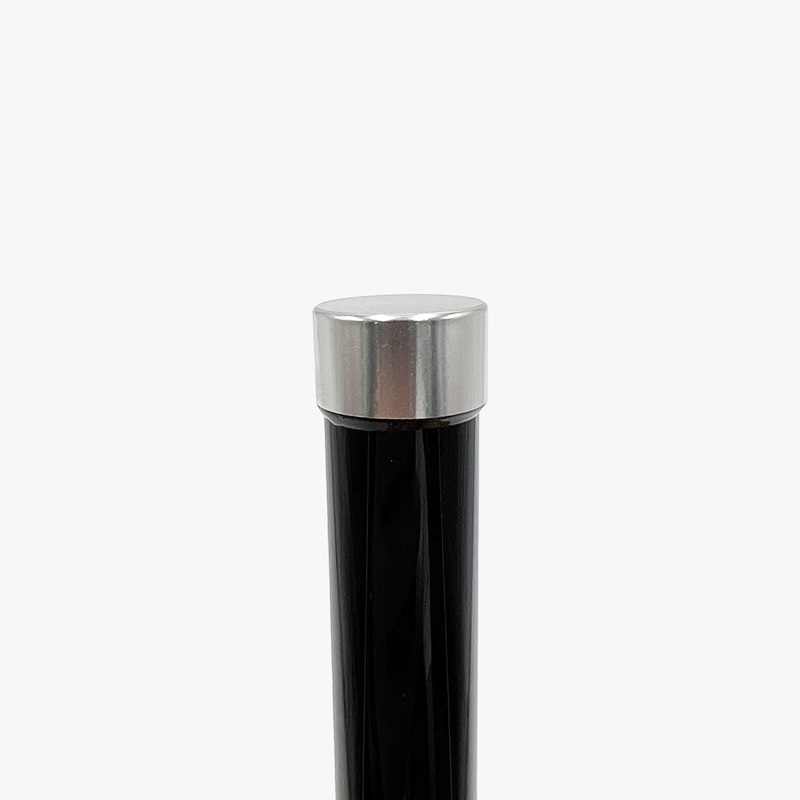

SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
Specifications
MOQ :
10
Delivery Time :
15 days
Certification :
RoHs
Place of Origin :
China
Model Number :
LZANT-10673-A
Payment Terms :
T/T
Peak Gain :
2dBi
Price :
RMB
Impedance :
50 OHM
Supply Ability :
500 per day
VSWR :
<2.0
Brand Name :
Leenz
Frequency :
3700-4200MHz
Description

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 2dBi
Efficiency ≈68%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 36-52°
Max Power 50W
B. Material & Mechanical Characteristics

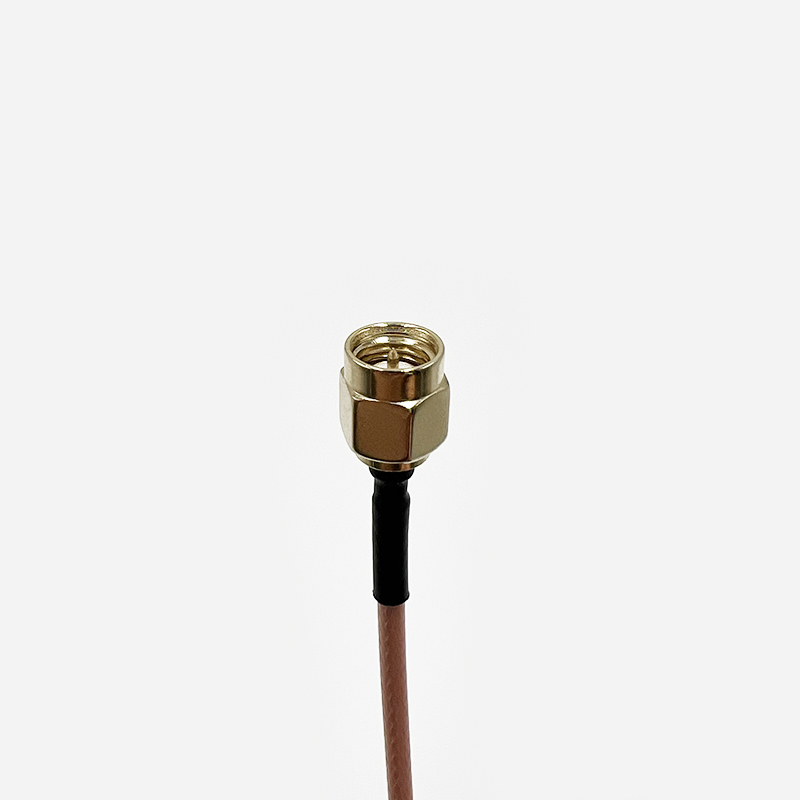

Connector Type RG316 15cm,SMA-J
Dimension Φ16*100mm
Weight 0.07Kg
Radome material Fiberglass(black)
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

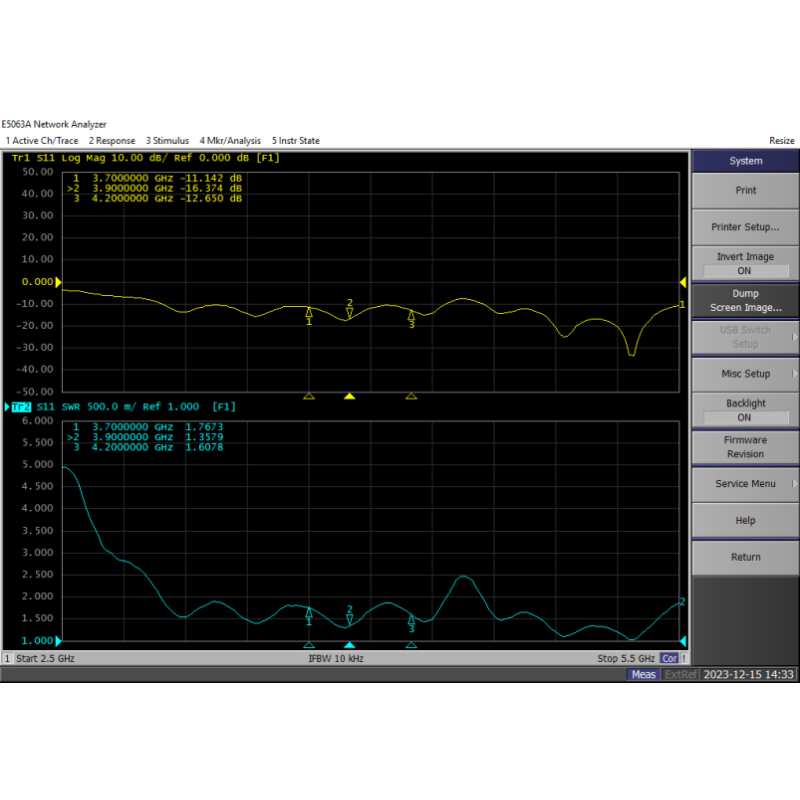

2.1 VSWR

SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm

Frequency(MHz)

3700

3750

3800

3850

3900

3950

4000

4050

4100

4150

4200

Gain (dBi)

1.8

1.9

2.2

2.1

2.6

2.7

2.2

2.0

2.0

1.9

2.2

Efficiency (%)

66.9

65.8

70.2

68.5

71.4

74.9

67.5

64.3

67.1

66.1

71.4

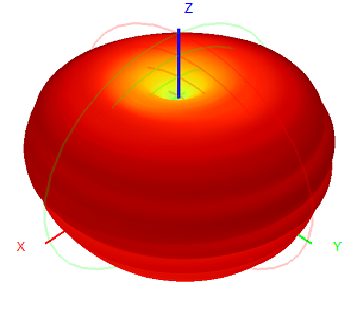

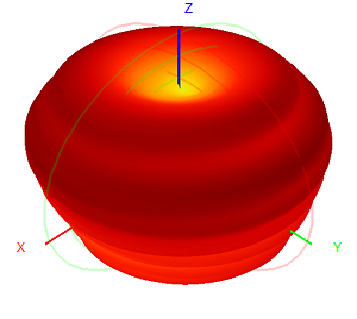

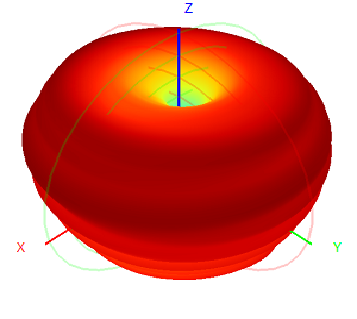

2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
3700MHz SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
3900MHz SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
4200MHz SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
