N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
Specifications
Model Number :
LZANT-11883-A
Payment Terms :
T/T
Peak Gain :
8dBi
Price :
RMB
Impedance :
50 OHM
Supply Ability :
500 per day
VSWR :
<2.0
Brand Name :
Leenz
MOQ :
10
Delivery Time :
15 days
Certification :
RoHs
Place of Origin :
China
Frequency :
6800-7500MHz
Description

1. Specification

A. Electrical Characteristics
Frequency 6800-7500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 8dBi
Efficiency ≈75%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 11-17°
Max Power 50W
B. Material & Mechanical Characteristics

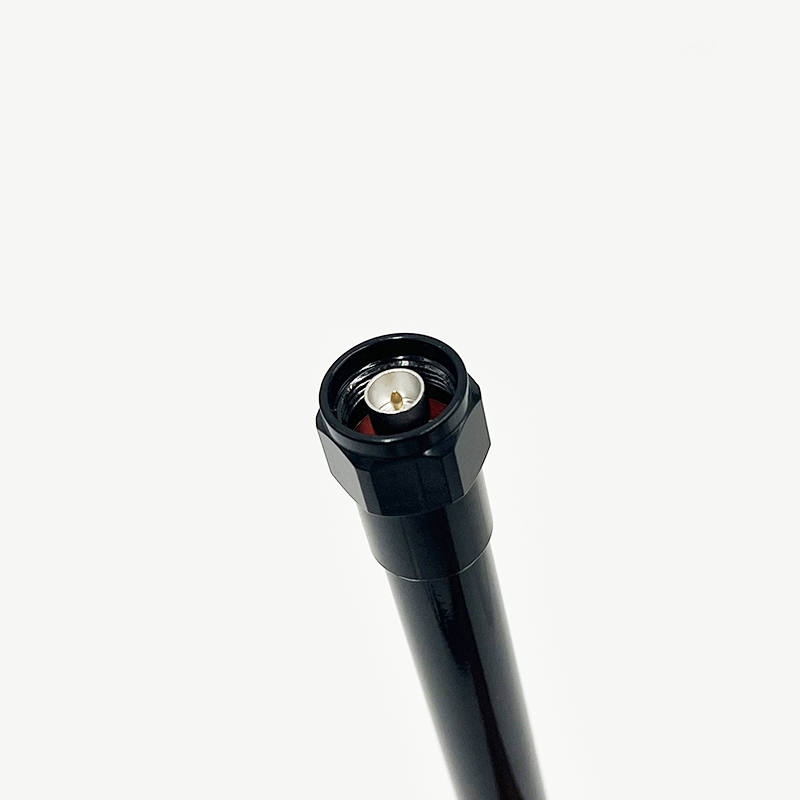

Connector Type N-J
Dimension Φ16*250mm
Weight 0.012Kg
Radome material Fiberglass(black)
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

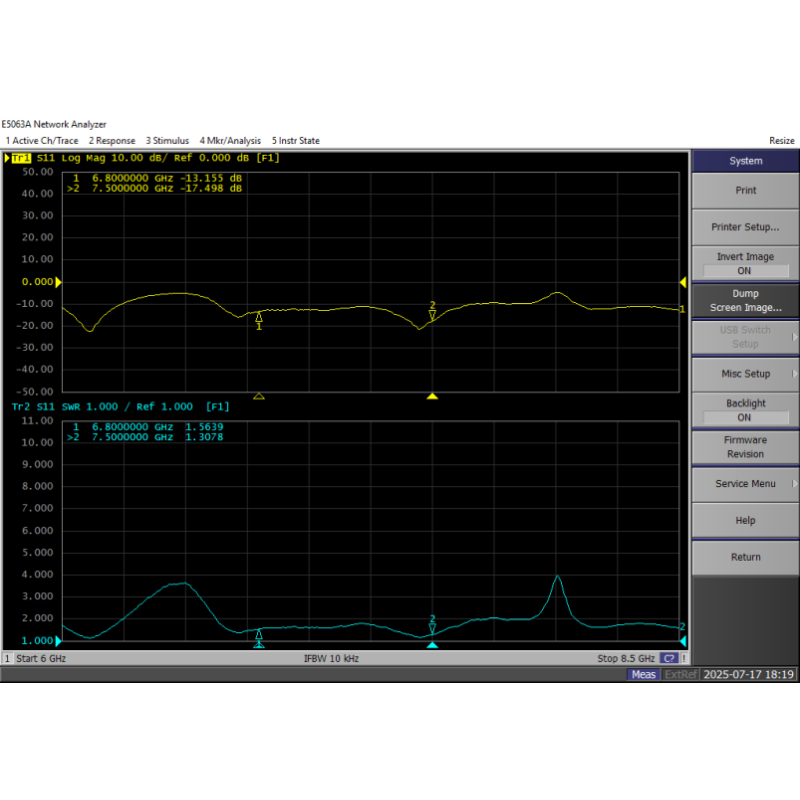

2.1 VSWR

N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm

Frequency(MHz)

Gain(dBi)

Efficiency(%)

6800

7.0

80.7

6850

6.7

77.6

6900

6.9

78.3

6950

6.7

68.8

7000

7.6

75.1

7050

6.7

60.5

7100

7.9

77.3

7150

7.2

64.8

7200

7.9

75.4

7250

7.7

75.3

7300

7.6

75.5

7350

7.8

79.6

7400

8.3

87.7

7450

7.2

66.1

7500

7.5

72.4


2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical

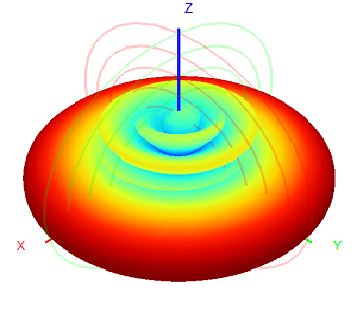

6800MHz N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm

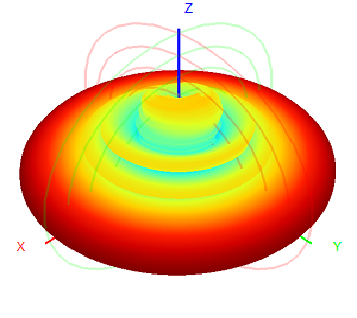

7150MHz N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm

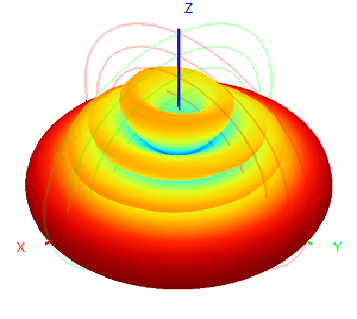

7500MHz N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm N male 6800-75000MHz 8dbi UWB omnidirectional Fiberglass waterproof antenna 5G antenna 16x250mm
