Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-OF3.91
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability :
5,000 square meters per month
Delivery Time :
7- 18 working days
Packaging Details :
Carton/wooden case/Flight case etc.
Pixel Pitch :
3.91 mm
Pixel Configuration :
SMD 1921
Pixel Density :
65,536 pixels/m²
Module Dimensions (W × H) (mm) :
250 × 250
Panel Dimensions (mm) :
500 × 1000
NO.of Modules Per Panel (W × H) :
2 × 4
Physical Resolution of Module (W × H) :
64 x 64
Panel Material :
Aluminum
Single Cabinet Weight :
20 kg/panel
Description

IP65 Waterproof Acrylic Led Screen floor Tile Backdrop , Led Curtain Display With Radar System

What is floor led display:

Like the floor can display video images and other information display screen

Generally used for stage, T, booth, bar, night show, broadcasting hall and other decoration.

P3.91 Indoor led video dance floor display feature:

  • Seamless splicing, easy installation and debugging
  • Excellent low brightness and high ash effect, showing the uniformity of gray uniformity and good consistency.
  • Different from other LED display to play the text and video images, people can dance on the dance floor led panel, with music and video, people can get better audiovisual enjoyment.
  • High contrast design: technical design mask, clear play effect

P3.91 Indoor led video dance floor display parameter:

LED Floor Display
LW-3 LW-5 LW-6 LW-8
Pixel Pitch 3.91 mm 5.2 mm 6.25 mm 8.928 mm
Pixel Configuration SMD 1921 SMD 1921 SMD 2727 SMD 3528
Pixel Density 65,536 pixels/m² 36,864 pixels/m² 25,600 pixels/m² 25,600 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250 250 × 250 250 × 250 250 × 250
Panel Dimensions (mm) 500 × 1000 500 × 1000 500 × 1000 500 × 1000
NO.of Modules Per Panel (W × H) 2 × 4 2 × 4 2 × 4 2 × 4
Physical Resolution of Module (W × H) 64 x 64 48 x 48 40 x 40 28 x 28
Physical Resolution of Panel (W × H) 128 x 256 96 x 192 80 x 160 56 x 112
Panel Material Aluminum Aluminum Aluminum Aluminum
Single Cabinet Weight 20 kg/panel 25 kg/panel 24 kg/panel 25 kg/panel
ray Scale 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Average Power Consumption 300 W / m² 300 W / m² 300 W / m² 300 W / m²
Max Power Consumption 880 W / m² 880 W / m² 880 W / m² 880 W / m²
Operating Temp/Humidity -10ºC-60ºC / 10%-60% -10ºC-60ºC / 10%-60% -10ºC-60ºC / 10%-60% -10ºC-60ºC / 10%-60%
Storage Temp/Humidity -30ºC-60ºC / 10%-60% -30ºC-60ºC / 10%-60% -30ºC-60ºC / 10%-60% -30ºC-60ºC / 10%-60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness 2,500 nits 2,000 nits 4,500 nits 4,500 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing Angle 140° 140° 140° 140°
Expected Lifetime 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs
Best Viewing Distance 4m-60m 6m-60m 8m 8m
Scan Method 1 / 16 Scan 1 / 6 Scan 1 / 5 Scan 1 / 3 Scan
Servicing Front Front Front Front
IP Rating IP 65 IP 65 IP 65 IP 65
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

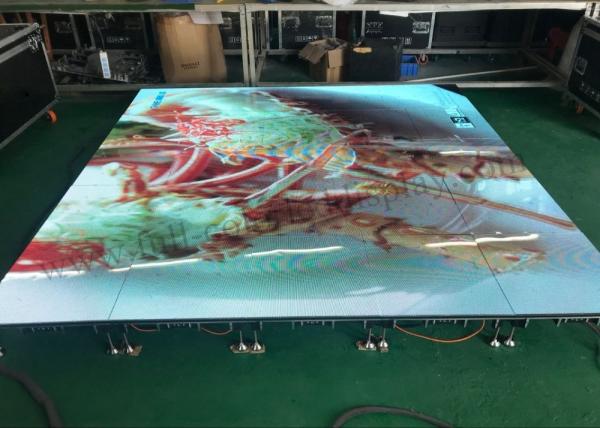

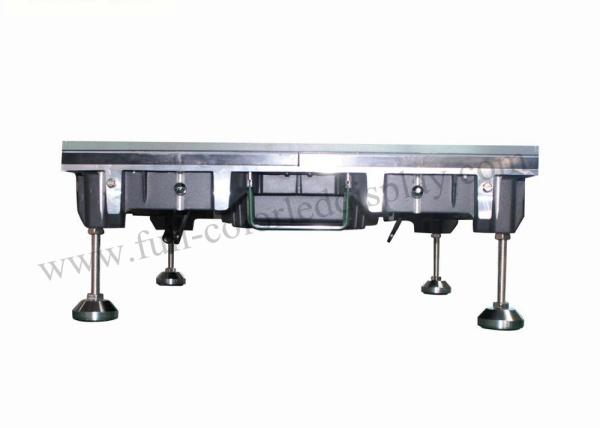

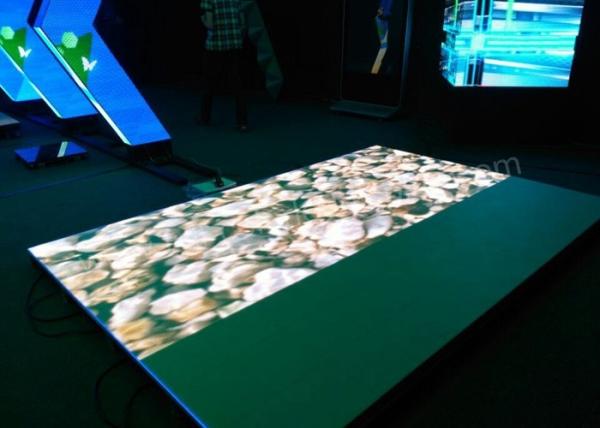

Floor led display details:

IP65 Waterproof Acrylic Led Screen floor Tile Backdrop , Led Curtain Display With Radar System

IP65 Waterproof Acrylic Led Screen floor Tile Backdrop , Led Curtain Display With Radar System
