Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-RO 5
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1,000 square meters per month
Delivery Time :
10-18 working days after received your payment
Packaging Details :
Plywood cartons or Flight case package
Pixel density(pix/m2) :
40000
Brightness(nits) :
≥5000
Refresh Rate(Hz) :
1920
Drive Method :
1/6
Module Size (mm) :
320×160×16
Cabinet weight(kg) :
17
Cabinet Material :
Die casting aluminum
IP Grade :
IP65/IP43
Description

outdoor rental 640x640mm-P5,P8,P10.pdf

P5 SMD3535 high brightness LED billboard stage display outside screens for rental

Features:

  • With sorts of quick locks,can be installed and disassembly very fast,that's a big reduction of of installation cost;
  • eamless Assembly:Processed by electromechanical machining with the accuracy to0.1mm;
  • Super-light profile aluminium cabinet, Durable & stable LED display;
  • Super-slim and high transparency design, aluminum alloy cabinet;
  • Adopts Die-Casting Aluminum, with additional strengthening bracket inside, anti-tensiling and shockproof, without deformation lasting for 10 years;
  • Cabinet edge protection design;
  • Rental design, easy to install and dismantle without any tools;
  • Ultra-thin design, handle bar also available;
  • Quick Lock System & PowerCon And EtherCon;
  • Massive production will greatly reduce cost and increase reliability of quality.

Application:

It is designed for rental use stage shows,Outdoor Signage and advertisement,theme parks,Lobby,waiting room of station,Offices,Amusement parks,commercial buildings,commercial building,commercial advertising,pharmacy,Stage Performance,High end hotel,big square and so on .

Parameter:

Parameters Outdoor Die-casting LED Display Series
Pixel Pitch (mm) 5mm
Pixel density(pix/m2) 40000
LED Type 3535
Viewing Angle X,Y120°
Brightness(nits) ≥5000
Drive Method 1/6
Color Depth 65536
Refresh Rate(Hz) 1920
Module Size (mm) 320×160×16
Cabinet Size(mm) 640×640×80
Cabinet Material Die casting aluminum
Cabinet weight(kg) 17
Voltage 110-240V
Average.power(W/m2) 230
Max.power (W/m2) 700
IP Grade IP65/IP43
Operating temperature/humidity temperature:-20℃~ 50℃ humidity:10~90%RH
Storage temperature/ humidity temperature:-40℃~ 60℃ humidity:10~90%RH
Lifetime(h) ≥50000
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

  • Allow free training .You can send your engineer to our factory for training untill he knows all the operation;
  • EXW. FOB. CIF accepted;
  • We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too;
  • Help you to choose suitable products within budget with most economy benefit;
  • Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period;
  • We promise you more than just two years warranty service;
  • Under normal use and storage, Our Company will be responsible for the equipments;
  • Your inquiry related to our products or price will be replied in 24hrs;
  • In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
  • Monthly production capacity: 3000 Sq. M;

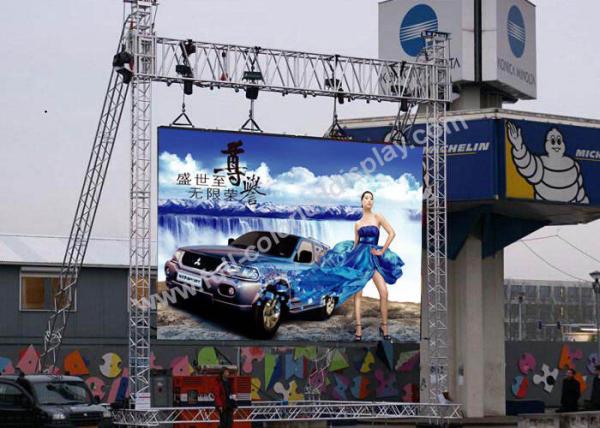

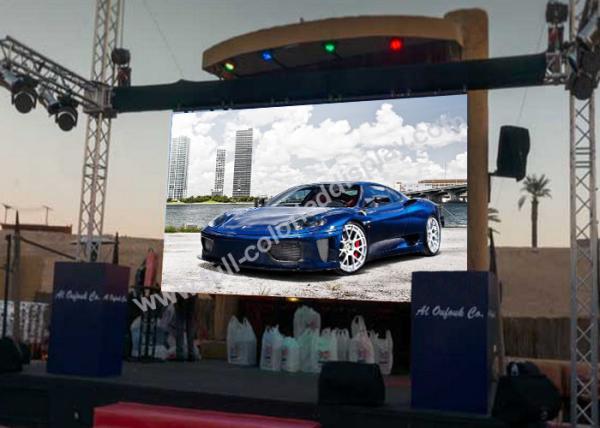

Project case:

IP65 IP43 High Brightness Led Screen P5 Shockproof With CE / RoHS / FCC

Package :

IP65 IP43 High Brightness Led Screen P5 Shockproof With CE / RoHS / FCC
