Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-OF8.928
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5,000 square meters per month
Delivery Time :
7- 18 working days
Packaging Details :
Carton/wooden case/Flight case etc.
Product Item :
LW-8
Pixel Pitch :
8.928 mm
Pixel Configuration :
SMD 3528
Pixel Density :
25,600 pixels/m²
Module Dimensions (W × H) (mm) :
250 × 250
Panel Dimensions (mm) :
500 × 1000
NO.of Modules Per Panel (W × H) :
2 × 4
Physical Resolution of Module (W × H) :
28 x 28
Description

Wireless SD Control Led Display Dance Floor Panels Stage Background 8.928mm Pixel Pitch

The technology of floor led display:

Imaging range increases according to different scenes and requirements, and it also has radar sensing technology

IP65 waterproof protection level, unique spot atomization treatment, completely eliminate the phenomenon of mole lines

The floor led display feature:

  • Fast installation Locks, Quick-installed module design, and excellent performance protection structure, which can realize seamless connection and random combination;
  • High load-bearing performance: with a high load capacity of 1.8 tons per square meter;
  • the heat of each working IC and leds can be released effectively and evenly;
  • Easy to Assemble & Transport
  • Separated LED floor tiles and tracks;tracks can be connected by screw bolts,LED floor tiles can be paved on tracks naturally and fixed by positioning pin.

Shipping:
Our products can be shipped by Sea, by Air, or by Express.which methods to be used is based on

the weight and size of the package, and with consideration of customer's requirements.

by sea: 20-40days;

by air: 5-10days ;

by express: 3-6days

The floor led display Parameter:

Product Item LW-OF8
Pixel Pitch 8.928 mm
Pixel Configuration SMD 3528
Pixel Density 25,600 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250
Panel Dimensions (mm) 500 × 1000
NO.of Modules Per Panel (W × H) 2 × 4
Physical Resolution of Module (W × H) 28 x 28
Physical Resolution of Panel (W × H) 56 x 112
Panel Material Aluminum
Single Cabinet Weight 25 kg/panel
ray Scale 16 bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 300 W / m²
Max Power Consumption 880 W / m²
Operating Temp/Humidity -10ºC-60ºC / 10%-60%
Storage Temp/Humidity -30ºC-60ºC / 10%-60%
Refresh Rate >1,920 Hz
Brightness 4,500 nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100, 000 Hrs
Best Viewing Distance 8m
Scan Method 1 / 3 Scan
Servicing Front
IP Rating IP 65
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

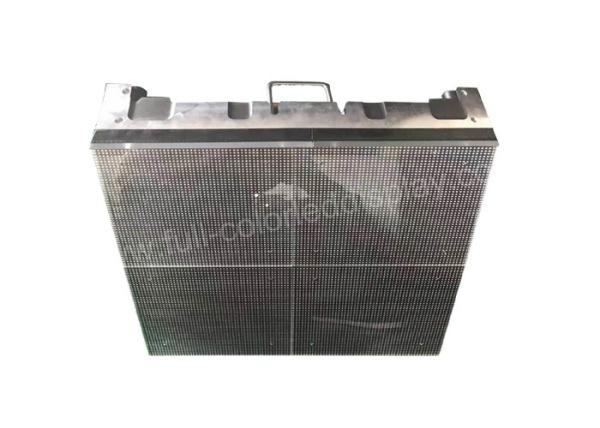

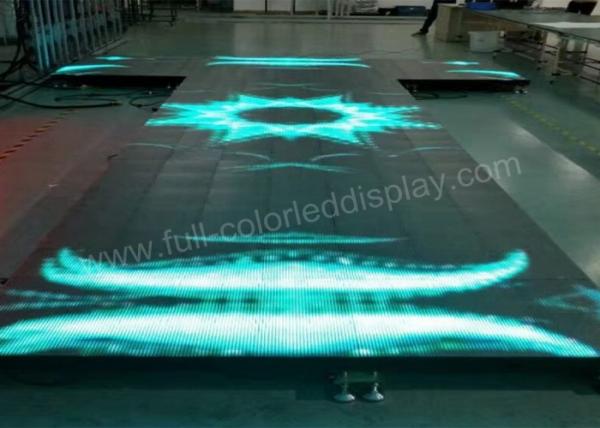

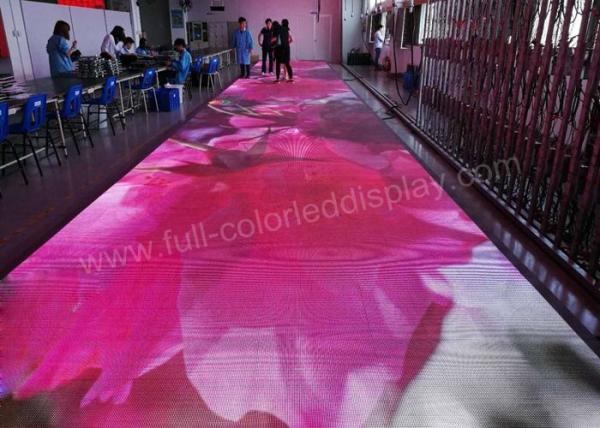

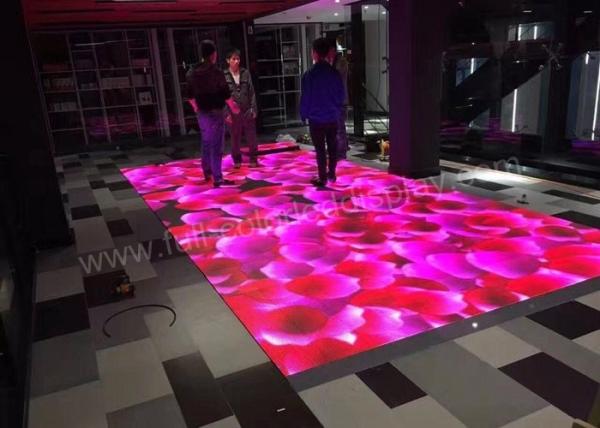

The floor led display details:

Wireless SD Control Led Display Dance Floor Panels Stage Background 8.928mm Pixel Pitch
