Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Video Floor Dance Display Led Screen Stage Backdrop With Radar Interactive System
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-OF4.81
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5,000 square meters per month
Delivery Time :
7- 18 working days
Packaging Details :
Carton/wooden case/Flight case etc.
Pixel pitch :
4.81mm
Pixel Configuration :
1R1G1B
LED component :
SMD1921
Size of module :
250mm x 250mm
Resolution of module :
52x52 dots
Size of cabinet :
500mm x 500mm x 75mm
Resolution of cabinet :
104x104 dots
Material of Cabinet :
Die-casting aluminum
Description

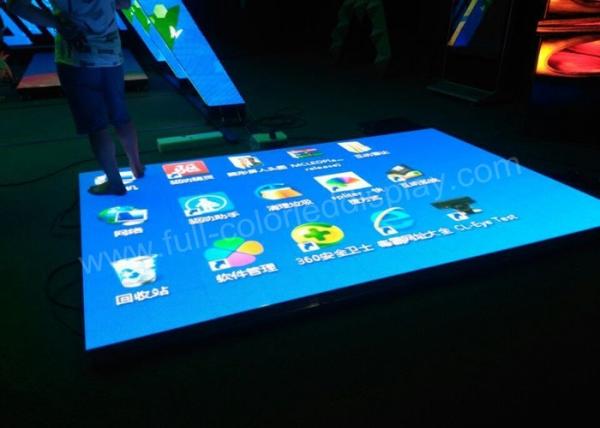

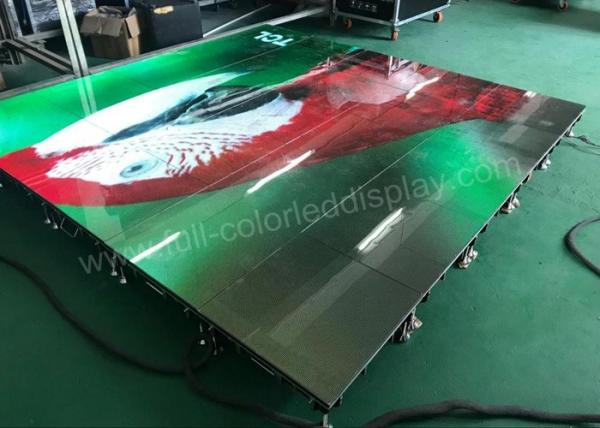

Luxurious LED Video floor Dance display screen with Radar Interactive System

What is floor Dance display?

The huge and clear live video of the match gives people an immersive audio-visual feast. The outdoor LED floor screen is a novel digital display device specially customized for the use of the indoor exhibition hall stage party.

Floor Dance Display Feature:

  • High flatness surface, The error between module and module is only 0.2mm, when people see the panel or dance in the panel as a a complete board, just like dance in the floor.
  • Made with Aluminum Alloy material, thin thickness and light weight
  • bring you more attractive design and creative value
  • Fast and flexible installation: no direct installation or rail installation can be used

Floor Dance Display Parameter:

P4.81 full Color multifunction Floor LED Screen Specification
Pixel pitch 4.81mm
Pixel Configuration 1R1G1B
LED component SMD1921

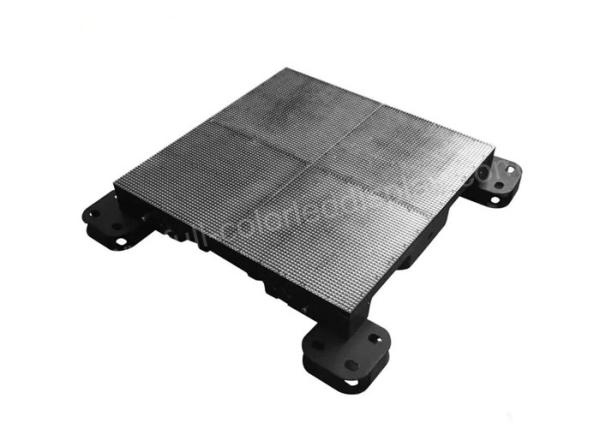

Size of module 250mm x 250mm
Resolution of module 52x52 dots
Size of cabinet 500mm x 500mm x 75mm
Resolution of cabinet 104x104 dots
Material of Cabinet Die-casting aluminum
Weight of Cabinet 9.00KGS/pc
Brightness >4500 cd/sq.m
Density 43264dots/sq.m
Best viewing angle 120 /120
Pixel Configuration 1R1G1B
Best viewing distance 4-50M
Bear capacity 1.5T/sq.m
Maximum power consumption 800W/sq.m
Average power consumption 400W/sq.m
Driving method 1/13 scan
Control method Synchronization / Asynchronization
Gray scale 65536
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC110/220V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequency 50/60Hz
Refresh frequency >1920Hz
IP grade IP66
Usage Indoor/outdoor
Life Span 100,000 hours
Data transfer method RJ45
Practical standard CCC TUV-CE ETL etc.
Effective Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
