Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-SO 10
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm/month
Delivery Time :
15~20 working days after deposit received
Packaging Details :
plywood case or flight case
Colors :
16.7Million
Working temperature :
-20ºC~+50ºC±10%
Average power consumption :
<150W/sq.m
Resolution of cabinet :
32 x128dots
Driving method :
1/8 scan
Life Span :
100,000 hours
Working humidity :
10% ~ 90%
Description

P10 flexible soft outdoor LED curtain display screen with Abnormal Shapes

Product description:

  • SMD led encapsulation confirm wide view angle and light weight；
  • Widely used for stage, concert, show, banquet, wedding, rental display, also can be fixed as a display video wall;
  • Cabinet size can be customized accordint to the ordered screen size,and with different costs,please contact us for details;
  • Smartly hidden cables, no tangled cables at the back of the cabinet;
  • High definition,smooth and good quality vision；
  • Rental design with locks and aviation plugs,easy to install and dismantle;
  • Can be fixed on the wall or window or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc;
  • Mesh design for good heat dissipation,good light transmission,light weight;
  • Good waterproof IP65, long life span>100000Hours;
  • High quality lighting parts with special PCB Board design, confirm good display and long life span.


Parameter:

P10 Soft LED Screen Specification
Pixel pitch10mm
Pixel Configuration1R1G1B
LED componentSMD3535
Size of module320mm x 80mm x 18mm
Resolution of module32x8dots
Size of cabinet320 x 1280 x 38mm
Resolution of cabinet32 x128dots
Transparency15%
Weight of cabinet12.5KGS
Brightness>=3000cd/sq.m
Density10000dots/sq.m
Best viewing angle140 /120
Best viewing distance>10 M
Maximum power consumption<400W/sq.m
Average power consumption<150W/sq.m
Driving method1/8 scan
Control methodSynchronization
Gray scale16bits
Colors16.7Million
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1920Hz
IP gradeIP65
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC TUV-CE ETL etc.
Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Our service:

  • Factory visiting and inspecting is welcome;
  • Service principles: Response in time, solve problems as soon as possible and ensure the use;
  • Aging test at least 24 hours before shipment;
  • Allow free training .You can send your engineer to our factory for training untill he knows all the operation；

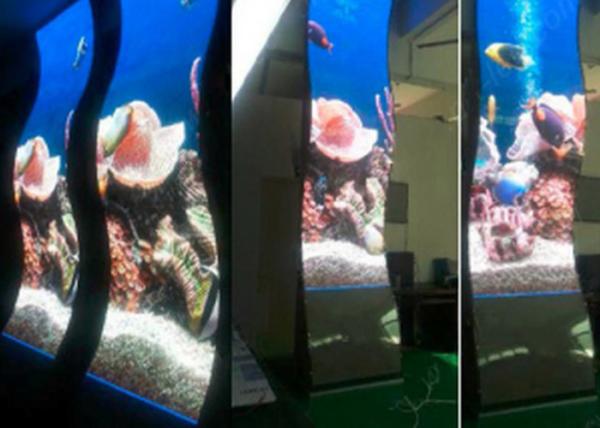

Project case:
P10 Flexible Soft Outdoor LED Curtain Display Screen With Abnormal Shapes

P10 Flexible Soft Outdoor LED Curtain Display Screen With Abnormal Shapes

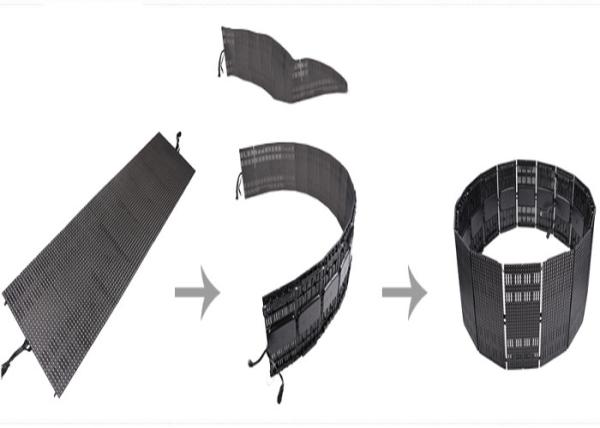

Product detail:
P10 Flexible Soft Outdoor LED Curtain Display Screen With Abnormal Shapes
