Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-CI 10
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm/month
Delivery Time :
15~20 working days after deposit received
Packaging Details :
plywood case or flight case
Brightness :
>1500cd/sq.m
Driving method :
1/8scan
Refresh frequence :
>1500Hz
Distance(without relay) Single-mode optic fiber :
10KM
MTBF :
10,000 hours
Gray scale :
65536
Maximum power consumption :
<800W/sq.m
LED component :
SMD3528
Description

P10 indoor Portable LED Mesh Screen 640 x 640 cabinet high transmitting

Product description:

  • Can be fixed installation or for rental to meet different request, such as,for live broadcast, video wall ,banquet, party, stage etc;
  • Widely used for commercial led display, advertising led display, stage led display, rental led display；
  • Mesh design for good heat dissipation,good light transmission ;
  • Module design, easy to change modules, and convenient to install and dismantle;
  • Long view distance and good uniformity;
  • Lower power consumption, long life span and good waterproof;
  • Widely used for stage, concert, show, banquet, wedding, rental display, also can be fixed as a display video wall;
  • Module design make the cabinets light weight and superthin,easy to install and maintain;
  • Super thin aluminum cabinet and curtain design minimize cabinet weight,only 10kgs each;
  • Widely used for commercial led display, stage led display, rental led display,advertising led display, message board etc;


Parameter:

P10 Indoor full Color LED Mesh Curtain Specification
Pixel pitch10mm
Pixel Configuration1R1G1B
LED componentSMD3528
Size of module320mm x 320mm
Resolution of module32x32 dots
Size of cabinet640mm x 640mm x 60mm
Resolution of cabinet64x64dots
Material of CabinetAluminum
Weight of Cabinet6.5KGS
Brightness>1500cd/sq.m
Density10000dots/sq.m
Best viewing angle140 /140
Best viewing distance8-100M
Maximum power consumption<800W/sq.m
Average power consumption<300W/sq.m
Driving method1/8scan
Control methodSynchronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V/110V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1500Hz
IP gradeIP31
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC TUV-CE ETL etc.
Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Why choose us :

  • Quick delivery: 10-25 working days;
  • Years of production experience we can very good to control the quality of the product, OEM and ODM accepted;
  • Good quality by using Nationstar led lamp, MBI IC;
  • Free training is provided for our customers;
  • 100% QC inspection before shipping;
  • We have competitive price;

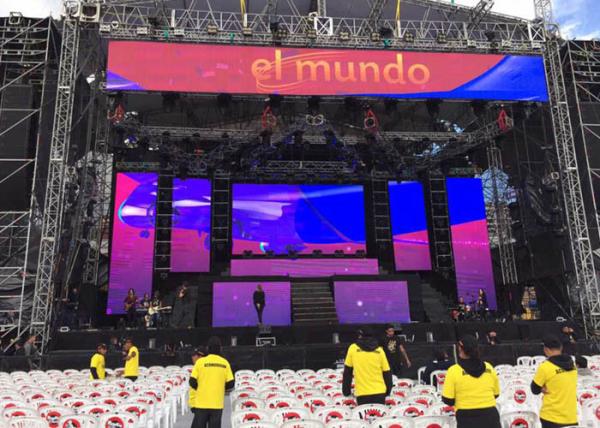

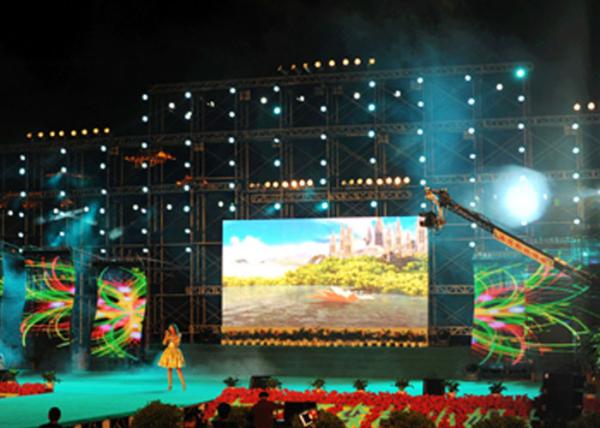

Project case:
High Transmitting Curtain Led Display Big , LED Mesh Screen 640 X 640 Cabinet

High Transmitting Curtain Led Display Big , LED Mesh Screen 640 X 640 Cabinet
