P16 Full Color Advertising LED Display Screen For Live Broadcast
P16 Full Color Advertising LED Display Screen For Live Broadcast
P16 Full Color Advertising LED Display Screen For Live Broadcast
P16 Full Color Advertising LED Display Screen For Live Broadcast
P16 Full Color Advertising LED Display Screen For Live Broadcast
P16 Full Color Advertising LED Display Screen For Live Broadcast
P16 Full Color Advertising LED Display Screen For Live Broadcast
P16 Full Color Advertising LED Display Screen For Live Broadcast
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-CI 16
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm/month
Delivery Time :
15~20 working days after deposit received
Packaging Details :
plywood case or flight case
Pixel Configuration :
16 mm
Density :
3906dots/sq.m
Driving method :
1/4 scan
Color temperature :
3200-9300k
Working temperature :
-20ºC~+50ºC±10%
Refresh frequence :
>1500Hz
Pratical standard :
CCC TUV-CE ETL etc.
Frame frequence :
50/60Hz
Description

P16 full color LED curtain display mesh 1/4 scan CCC UL RoHS ETL certification

Product description:

  • High definition,smooth and good quality vision；
  • SMD led encapsulation confirm wide view angle and good stability;
  • High resolution,High definition, Good performance;
  • Adopt of metal connection component, fastness and durable;
  • It is just different from the traditional one;
  • Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc；
  • 15% transparent rate, ensure the light- through, smoke-through, sound-through;
  • Equipped with fast locks, more convenient to assemble and disassemble. Strip shape module is easy to maintenance；
  • SMD technology with 3535 black lamp, confirm wide view angle 120/120 and high contrast ratio;
  • Can be fixed install or hung for rental, packed with flight case, good protection and easy to move.


Parameter:

P16 Indoor full Color LED Mesh Curtain Specification
Pixel pitch16mm
Pixel Configuration16mm
LED componentSMD3528
Size of module256mm x 256mm
Resolution of module16x16
Size of cabinet1024mmx 768mm x 60mm
Resolution of cabinet64x48
Material of CabinetAluminum
Weight of Cabinet<14.5KGS
Brightness>1500cd/sq.m
Density3906dots/sq.m
Best viewing angle110 /50
Best viewing distance15-200M
Maximum power consumption<800W/sq.m
Average power consumption<300W/sq.m
Driving method1/4 scan
Control methodSynchronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V/110V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1500Hz
IP gradeIP31
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC TUV-CE ETL etc.
Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

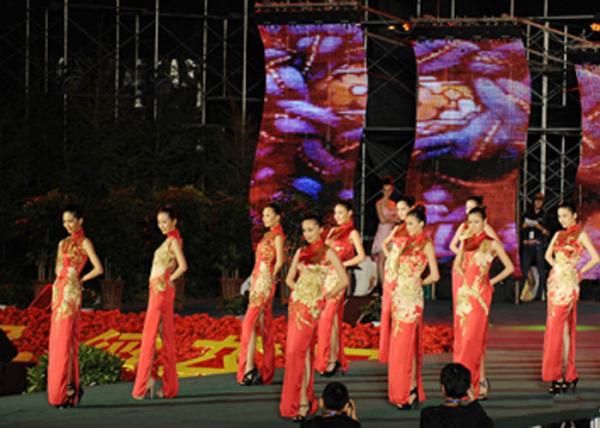

Project case:
P16 Full Color Advertising LED Display Screen For Live Broadcast

P16 Full Color Advertising LED Display Screen For Live Broadcast
