High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
High Brightness Customized LED Curtain Display Low Wind Resistance
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-CO 16.66
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm/month
Delivery Time :
15~20 working days after deposit received
Packaging Details :
plywood case or flight case
Pixel Configuration :
16.66mm
Brightness :
>7000cd/sq.m
Colors :
256*256*256
Maximum power consumption :
<400W/sq.m
Working voltage :
AC220V/110V±10%
Driving method :
static
MTBF :
10,000 hours
Pratical standard :
CCC TUV-CE ETL etc
Description

P16.66 waterproof led mesh display screen DIP346 lamps high brightness

Product description:

  • High pixel density, Long view distance, High definition, Good display vision;
  • Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc;
  • Can be fixed install or hung for rental, packed with flight case, good protection and easy to move;
  • Smartly hidden cables, no tangled cables at the back of the cabinet;
  • low wind resistance: because the screen is part of the hollow body, reduce wind resistance, and can save cost structure;
  • Cabinet size can be customized accordint to the ordered screen size,and with different costs,please contact us for details;
  • Good waterproof IP65, long life span>100000Hours;
  • Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, event stage etc;
  • SMD led encapsulation confirm wide view angle;
  • High lighting penetrated design ensure good ventilation and good heat dissipation ；


Parameter:

P16.66 Indoor full Color LED Mesh Curtain Specification
Pixel pitch16.66mm
Pixel Configuration16.66mm
LED componentDIP346

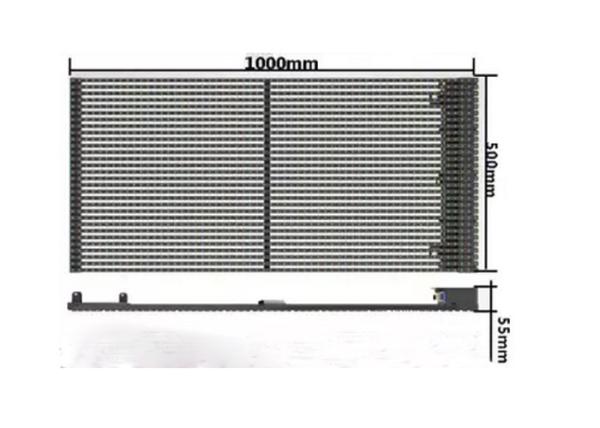

Size of cabinet500mmx 1000mm x 55mm
Resolution of cabinet30x60
Material of CabinetAluminum
Weight of Cabinet<8.2KGS
Brightness>7000cd/sq.m
Density3600dots/sq.m
Best viewing angle110 /50
Best viewing distance16-200M
Maximum power consumption<400W/sq.m
Average power consumption<140W/sq.m
Driving methodstatic
Control methodSynchronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V/110V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1920Hz
IP gradeIP65
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC TUV-CE ETL etc.
Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Product detail:
High Brightness Customized LED Curtain Display Low Wind Resistance

High Brightness Customized LED Curtain Display Low Wind Resistance
Project case:
High Brightness Customized LED Curtain Display Low Wind Resistance
