Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-CO 6
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm/month
Delivery Time :
15~20 working days after deposit received
Packaging Details :
plywood case or flight case
Storage temperature :
-35ºC ~ +85ºC Working temperature: -20ºC ~ +50ºC
Refresh frequency :
≥ 800Hz
MTBF :
10, 000 hours
Protection grade :
IP64
Working Voltage :
DC 5V
Average power consumption :
400w/m2
Power supply :
AC 110 / 220V, 50/60Hz
Frame rate :
≥ 60Hz
Description

outside LED curtain screen , transparent P6 display for stage background

Product description:

  • SMD led encapsulation confirm wide view angle and good uniformity;
  • SMD technology with 3535 black lamp, confirm wide view angle 120/120 and high contrast ratio;
  • high pervious to light: panel installed on the wall of the lateral also to meet the demand of indoor daylighting;
  • Ultra light & thin;
  • Module design make the cabinets light weight and superthin,easy to install and maintain;
  • New rotary lock and lifting structure,make instant install available；
  • High brightness, 1500nits for indoor mesh, and 4500nits for outdoor mesh with good waterproof;
  • Widely used for commercial led display, stage led display,rental led display.

Aplication:

It can be widely used in Building facilities,Highway,conference,night club,Indoor Sports Arenas,enterprises,city roads,traffic display,station weiting area, monitoring, Churches,bookstore,Volleyball and Basketball courts,athletic contest,plaza.

Parameter:

Item Parameter
Pixel Physical pixel pitch: 6 mm
Pixel configuration: 1R1PG1PB 　 10.416mm Wave Brightness Packing
R Opto 620-623nm 400mcd SMD-3528
G Silan 520+/_1nm 1000mcd SMD-3528
B Silan 470+/_1nm 200mcd SMD-3528
Module Module resolution: 48X20 pixels
Module size: 288X120 mm
Electricity parameter Brightness: ≥1500 nits
Brightness adjusted: 100 grade by software, or by Auto-optic induced
Color processing: 14bit
Display color: 4.4 trillion
Color temperature(k): 5000 - 9500 (choice by user)
Physical density: 27777 pixels/m2
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 5m
Best view angle: Horizontal ±80°, Vertical ±80°
Storage temperature: -35ºC ~ +85ºC Working temperature: -20ºC ~ +50ºC
Driving method: Constant driving current Scan: 1/10
Refresh frequency: ≥ 800Hz
Frame rate: ≥ 60Hz
Humidity(RH): ≤ 90~95%
Protection grade: IP64
Working Voltage: DC 5V
Power supply: AC 110 / 220V, 50/60Hz
Average power consumption: 400w/m2
Max power consumption:800w/m2
MTBF: 10, 000 hours
Screen lifetime: 100, 000 hours
Control system Signal interface: DVI
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
Signal transfer mode: Pixels to pixels display synchronized
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Product advantage:

LED WORLD invents in developing die casting aluminum cabinet indoor LED video wall, to enter high-end market. At present, more and more high-end LED video wall adopts a relatively high precision die-casting process, the use of molds forming a more secure cabinet flatness, keeping tolerance control, basically solved the problem in cabinet patchwork; Also, die-casting Aluminum cabinet breakthrough the traditional one, with a more beautiful appearance. Besides, aluminum alloy still remains stable performance, in air and higher temperatures, not like to iron rusty.

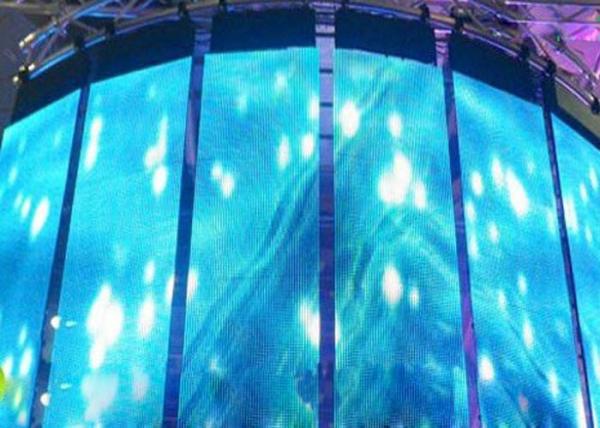

Project case:

Commercial Flexible Led Curtain Display For Stage Background LW-CO 6

Commercial Flexible Led Curtain Display For Stage Background LW-CO 6
