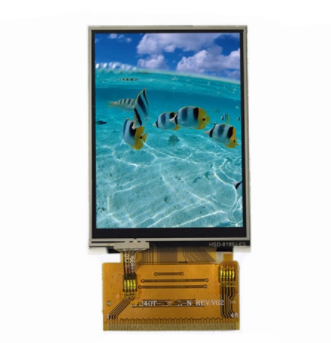

2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature
2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature
2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature
2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature
Specifications
TFT Mode :
TFT, Transmissive
Storage Temperature :
-30°C to 80°C
Back Light :
four White LED
Origin :
China
Active Area :
36.72mm×48.96mm
Display Ic :
ST7789V
Lcm Luminance :
180
Interface :
COF
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
2.4 Inch Liquid Crystal TFT LCD Touch Screen Module 180Cd/M² Brightness
2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature 2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature 2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature
Key Specifications
Resolution 240 × 320
Size 2.4 Inch
Viewing Direction 12 O'clock
TFT Mode TFT, Transmissive

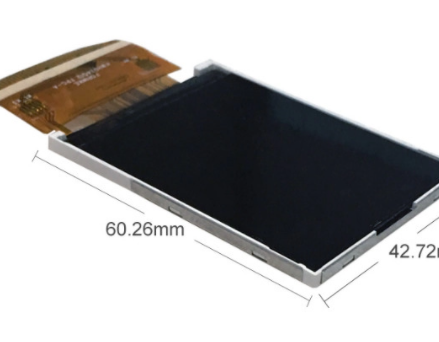

Outline Size 42.72mm (W) × 60.26mm (L) × 2.6mm (T)
Brightness 180Cd/m²
Technical Details
Item Nominal Dimension Unit
Dot Matrix 240 x RGB x 320 Dots
Module Size (W×H×T) 42.72 × 60.26 × 2.6 mm
Dot Pitch (W×H) 0.153 × 0.153 mm
Interface COF -
Driving IC Package COG, I2C -
Operating Temperature -20 ~ 70 ºC
Storage Temperature -30 ~ 80 ºC
IC Drive ST7789V -
LCD Mode TN/Normal White -
Backlight Type 4 White LEDs in Parallel PCS
Product Overview
The 2.4-inch TFT liquid crystal touch screen module is a compact display solution with 180Cd/m² brightness, ideal for indoor applications. Its thin profile (under 3mm) and light weight make it suitable for portable devices.
Key Features
  • Display Technology: TFT (Thin Film Transistor) with independent pixel switches for high-speed refresh and precise color control
  • Resolution: 240×320 (QVGA) provides excellent clarity for information display and graphical interfaces
  • Brightness: 180Cd/m² ensures clear visibility in typical indoor lighting conditions
  • Viewing Angle: Approximately 50° vertical and 70° horizontal without IPS material
  • Interface Options: Supports SPI, 8080 parallel port for easy microcontroller integration (STM32, ESP32, etc.)
  • Touch Options: Available in resistive (pressure sensing) or capacitive (multi-touch support) variants
  • Temperature Range: Operates from -20°C to +70°C with storage up to -30°C to 80°C
Applications
This versatile display module is widely used in portable devices, industrial control systems, medical instruments, and smart home applications including:
  • Smart locks and access control systems
  • Handheld detectors and measurement devices
  • Medical monitoring equipment (blood pressure monitors, etc.)
  • Electronic photo frames and information displays
