2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction

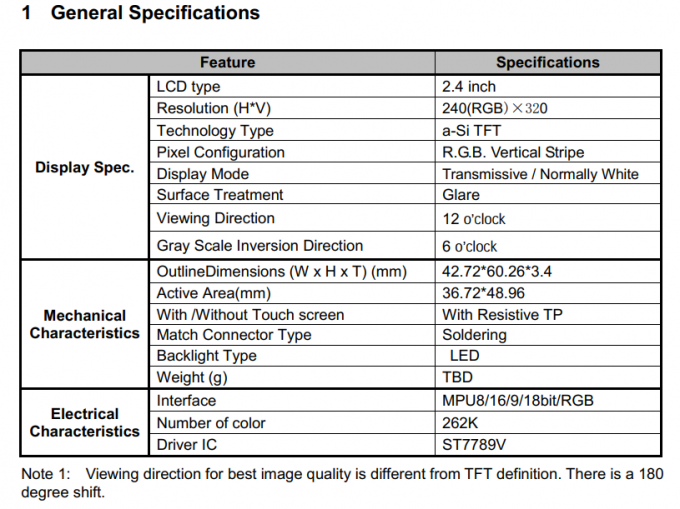

Specifications
Panel Type :
TFT
Refresh Rate :
60 Hz
Size :
2.4inches
Colors :
262K
Display Technology :
LCD
Outline Size :
42.72 X 60.26 X 3.4 Mm
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

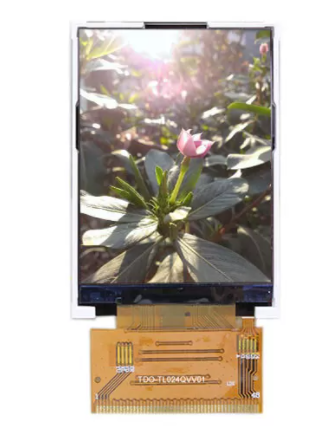

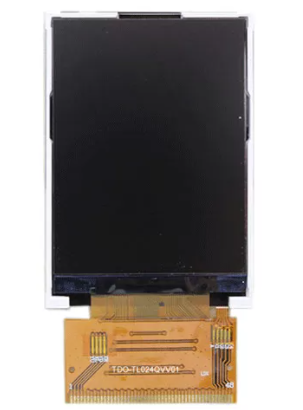

TFT LCD Display 2.4 Inch Graphics Video Display with RGB Interface
A high-quality 2.4-inch TFT LCD display featuring RGB interface for superior graphics and video performance.
Resolution: 240 * 320
Display Mode: Transmissive
Display Type: TFT LCD Display
Viewing Direction: 12 O'clock
Outline Size: 42.72 * 60.26 * 3.4 mm
Viewing Size: 36.72 * 48.92 mm
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
What is TFT LCD?
A thin-film transistor liquid crystal display (TFT LCD) is a type of liquid crystal display that uses thin-film transistor technology to improve qualities such as contrast and addressability. TFT technology means each pixel is driven by an individual transistor, enabling faster response times.
Advantages
  • Lower energy consumption
  • Sharper visibility and superb image quality
  • Optimized physical design
  • Fast response time
  • Reduced eye strain
Disadvantages
TFT LCD displays may cost slightly more than regular monochrome displays. Optimal viewing is at the 12 o'clock direction, with potential inversion when viewed from other angles. Despite these minor limitations, TFT displays remain superior technology for modern applications.
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction 2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
Core Features
  • Display Effect: High resolution (320*240/480*320), high contrast, and wide viewing angle for clear presentation of graphics and videos
  • Interface Advantages: RGB parallel digital interface connects directly to MCUs and FPGAs with fast transmission rates
  • Physical Specifications: Compact 2.4-inch size with low power consumption ideal for portable devices
Main Applications
  • Industrial Control: Operating interfaces for PLCs, sensor controllers, and handheld detectors
  • Consumer Electronics: Portable media players and small game consoles
  • Smart Devices: Control panels for smart home and vehicle display modules
  • Medical Instruments: Handheld testing devices and diagnostic equipment
  • IoT Terminals: Display interfaces for low-power IoT devices
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging method varies based on product size and customer requirements.
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
Shipping: Express options including DHL, FedEx, EMS, UPS, air shipping, and sea shipping available.
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
Payment Method: Various payment options available.
2.4 Inch TFT LCD Display with 240x320 Resolution 60 Hz Refresh Rate and 12 O'clock Viewing Direction
