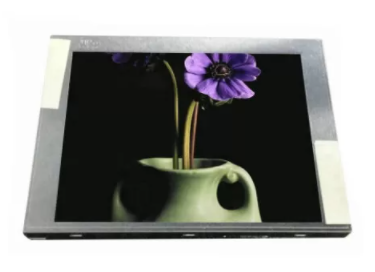

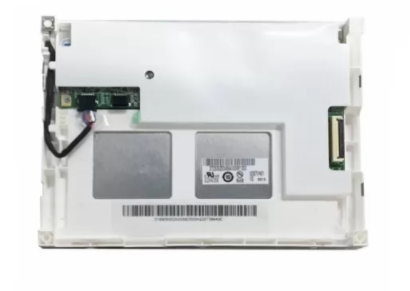

5.7 Inch TFT LCD Touch Screen with 640x480 Resolution and 16M Colors for Industrial Appliances
5.7 Inch TFT LCD Touch Screen with 640x480 Resolution and 16M Colors for Industrial Appliances
5.7 Inch TFT LCD Touch Screen with 640x480 Resolution and 16M Colors for Industrial Appliances
5.7 Inch TFT LCD Touch Screen with 640x480 Resolution and 16M Colors for Industrial Appliances
Specifications
Pixel Pitch :
0.180 (W) ×0.180(H) (mm
Lcd Interface :
RGB Strip
Resolution :
640 RGB ( H ) x 480 ( V )
Tp Option :
with Resistive touch panel
Touch Screen Type :
Resistive touch screen
Driving Method :
dot
Specification :
5.7′′
Outline :
135 mm (H ) x 104.6 mm ( V )
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
5.7 Inch Resistive Touch Screen Transmissive For Industrial Appliance
Product Specifications
Resolution 640 * 480
Size 5.7 Inch
Viewing Direction 12 O'Clock
TFT Mode TFT, Transmissive
Detailed Technical Parameters
ITEM CONTENT DESCRIPTION
Display outline size 135 mm (H) x 104.6 mm (V)
VA size 115.2 mm (H) x 84.4 mm (V)
Resolution 640 RGB (H) x 480 (V)
With/Without Touch screen CPT / RTP optional / Without
Interface RGB Strip
Pixel Pitch 0.180 (W) × 0.180(H) (mm)
Color 16M Colors
Viewing Angle 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D)
5.7 Inch TFT LCD Touch Screen with 640x480 Resolution and 16M Colors for Industrial Appliances
5.7 Inch TFT LCD Touch Screen with 640x480 Resolution and 16M Colors for Industrial Appliances
Industrial Applications
  • Industrial Control: Serves as Human-Machine Interface (HMI) for displaying equipment status, operation instructions, and real-time data. Enables touch control for PLC panels and industrial robots.
  • Data Monitoring and Analysis: Displays production process data (temperature, pressure, flow) with analysis capabilities. Supports data printing and backup.
  • Equipment Operation Guidance: Provides intuitive operation steps and prompts, reducing learning curve for complex equipment operation.
  • Fault Diagnosis and Alarm: Monitors equipment status in real-time, displays alarm information, and provides troubleshooting suggestions when faults occur.
