3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance
3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance
3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance
3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance
Specifications
Tft Active Area :
48.96*73.44
Viewing Direction :
12 o’clock
Pixel Configuration :
R.G.B. Vertical Stripe
Backlight Luminance :
220 Cd/m2
Lcd Type :
STN Positive
Supplier Type :
manuacturer
Driver Ic :
ST7796S
Size :
3.5inch
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
3.5 Inch TFT LCD Display High Resolution Touch Screen With Resistive Panel
Product Details
Resolution: 320(RGB)×480
Display Mode: Transmissive / Normally White
Display Type: STN Positive
Viewing Direction: 12 O'clock
Outline Size: 55.26*84.69*2.25
Viewing Size: 48.96*73.44
Product Description
Display Specifications
LCD type 3.5 inch
Resolution (H*V) 320(RGB)×480
Technology Type a-Si TFT
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Transmissive / Normally White
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Mechanical Characteristics
Outline Dimensions (W x H x T) (mm) 55.26*84.69*2.25
Active Area(mm) 48.96*73.44
With/Without Touch screen Without (TP optional)
Connector W:0.35, P:0.5
Backlight Type White LED
Weight (g) TBD
Electrical Characteristics
Interface MCU 8bit
Number of color 262K
Driver IC ST7796S

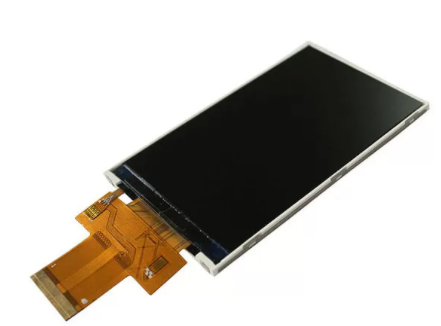

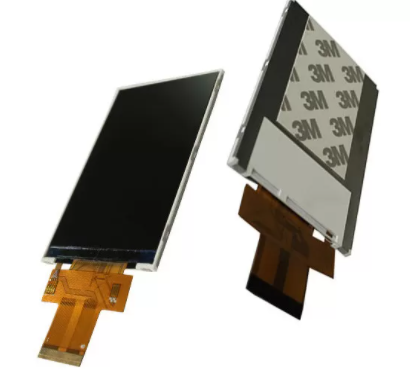

3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance 3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance
The 3.5-inch TFT resistive touch screen is a compact high-resolution display solution featuring clear visuals and precise touch response. Ideal for diverse applications requiring reliable performance.
Key Features
  • Compact Design: 3.5-inch size offers portability without compromising functionality
  • Advanced Display: TFT technology delivers rich colors, high contrast, and sharp details
  • Precise Touch: Resistive panel supports single-point accurate input with pressure activation
  • Durable Construction: Resistant to environmental factors like dust and moisture
  • Cost-Effective: Simple structure provides reliable performance at competitive pricing
Applications
  • Industrial Control: PLC panels, equipment operation screens, industrial terminals
  • Consumer Electronics: Early smartphones, portable navigators, handheld gaming devices
  • Smart Home: Access control panels, appliance interfaces, security terminals
  • Medical Equipment: Monitoring devices, diagnostic equipment, portable medical tools
  • Automotive: In-vehicle entertainment systems, navigation displays, dash cams
