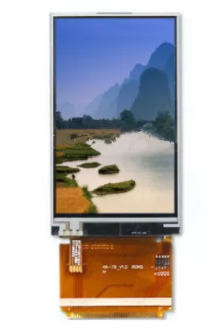

3.0 Inch TFT LCD Touch Screen with 65k Display Colors 340Cd/M2 Brightness and 9 O'Clock Viewing Direction
3.0 Inch TFT LCD Touch Screen with 65k Display Colors 340Cd/M2 Brightness and 9 O'Clock Viewing Direction
3.0 Inch TFT LCD Touch Screen with 65k Display Colors 340Cd/M2 Brightness and 9 O'Clock Viewing Direction
3.0 Inch TFT LCD Touch Screen with 65k Display Colors 340Cd/M2 Brightness and 9 O'Clock Viewing Direction
Specifications
Display Colors :
65k
Tft Mode :
TFT, Transmissive
Dots Pitch :
0.162(W)X0.162(H)
Driver Ic Model :
ILI9327
Module Size :
45.04 mm * 77.0 mm * 25.0mm T
Panel Size :
3inch(diagonal)
Lcd Interface :
RGB + SPI
Brightness :
340
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
9 O'Clock TFT LCD Resistive Touchscreen - 3.0 Inch Size, 240×400 Dots Resolution
Product Specifications
Resolution 240 × (R, G, B) × 400 Dots
Size 3.0 Inch
Viewing Direction 9 O'Clock
TFT Mode TFT, Transmissive
Outline Size 45.04(W) × 77.0+25.0(H) × 2.6(H) (Max)
Brightness 340 Cd/M²
Technical Details
Item Contents Description
1 Product Name TFT LCD Display with Optional Resistive Touch Panel
2 Module Size 45.04 mm × 77.0 mm × 25.0mm T
3 Resolution 240 × 400
4 Dots Pitch 0.162(W) × 0.162(H)
5 Touch-Panel Type RTP
6 Interface Type RGB + SPI
7 Colors 65K
8 Controller/Driver ILI9327
3.0 Inch TFT LCD Touch Screen with 65k Display Colors 340Cd/M2 Brightness and 9 O'Clock Viewing Direction 3.0 Inch TFT LCD Touch Screen with 65k Display Colors 340Cd/M2 Brightness and 9 O'Clock Viewing Direction 3.0 Inch TFT LCD Touch Screen with 65k Display Colors 340Cd/M2 Brightness and 9 O'Clock Viewing Direction
Product Advantages

This 3.0-inch TFT LCD resistive touchscreen combines compact size with suitable resolution for portable applications, offering both display and touch interaction capabilities.

Key Features
  • Size & Resolution: 3.0-inch screen with 240×400 dot resolution provides appropriate pixel density for clear text and simple graphics
  • Touch Type: Resistive touchscreen supports pressing operation with fingers or stylus, enabling precise interaction in various environments
  • Display Technology: TFT LCD technology delivers high contrast, fast response, and rich color reproduction
Primary Applications
  • Portable Devices: Smart wristbands, portable navigators, handheld data collectors
  • Industrial Control: Small control panels, equipment status displays in harsh environments
  • Consumer Electronics: MP4 players, portable game consoles, children's educational devices
  • Medical Equipment: Monitoring devices, portable diagnostic equipment requiring precise operation
Our Services
Free repair within one year after product shipment
Replacement within 30 days for defective products
Custom logo printing and model number labeling
Efficient global shipping with competitive rates
Professional technical support and responsive after-sales service
Rigorous quality control with pre-shipment testing
24-hour response to customer inquiries
Custom LCD display solutions based on your specifications
